2. INFORMATION TO ORDER A CONTROLLER
2.1 Model and Suffix Codes

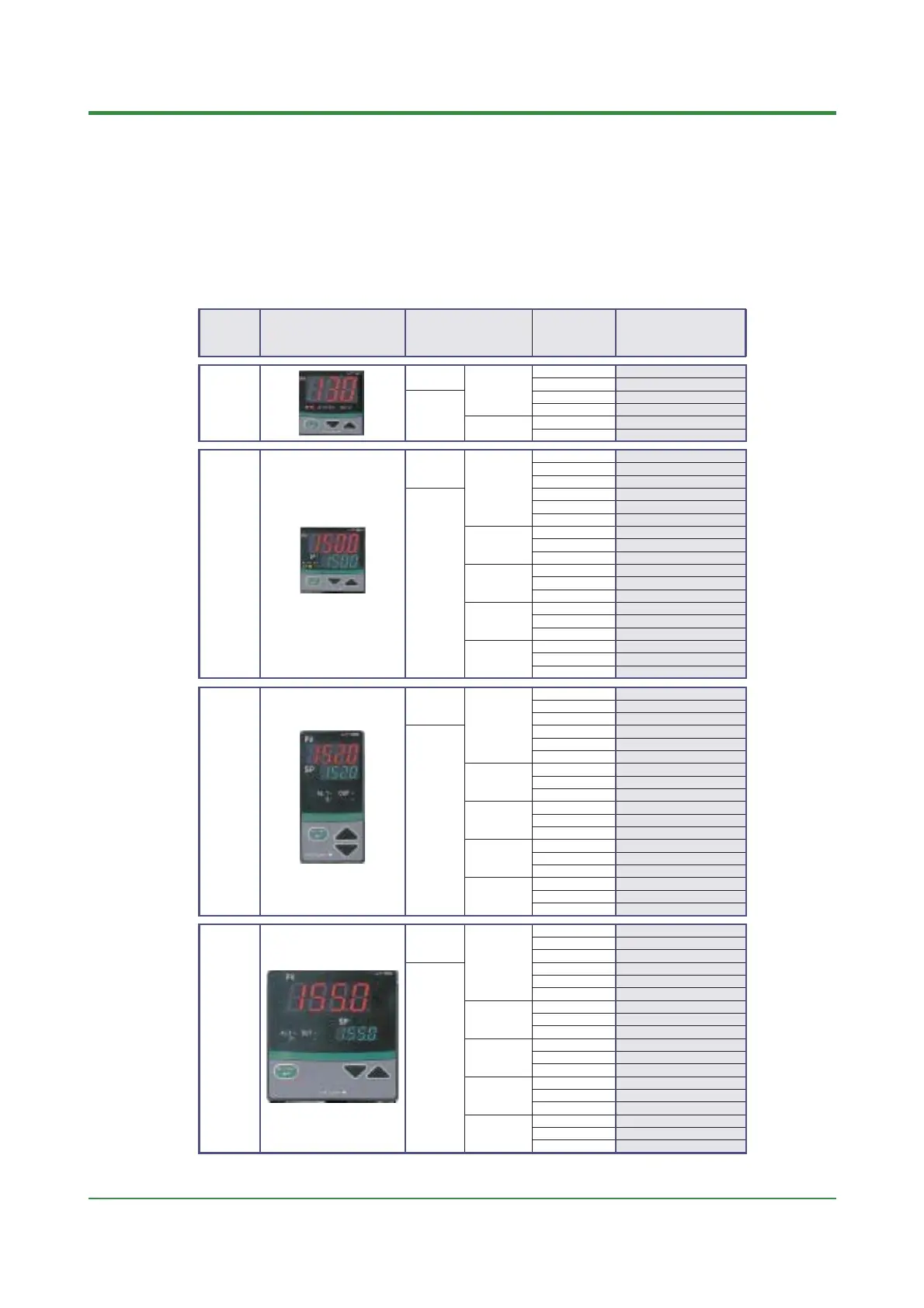

The models and suffix codes of UT130, UT150/UT152/UT155 standard types are as
follows:
Type
UT130-RN
UT130-VN
UT130-RN/AL
UT130-VN/AL
UT130-RN/AL/RS
UT130-VN/AL/RS
Relay output
Voltage pulse output
Relay output
Voltage pulse output
Relay output
Voltage pulse output
UT150-RN
UT150-VN
UT150-AN
UT150-RN/AL
UT150-VN/AL
UT150-AN/AL
UT150-RN/AL/RET
UT150-VN/AL/RET
UT150-AN/AL/RET
UT150-RN/AL/EX
UT150-VN/AL/EX
UT150-AN/AL/EX
UT150-RN/AL/RS
UT150-VN/AL/RS
UT150-AN/AL/RS
UT150-RN/AL/RET/EX
UT150-VN/AL/RET/EX
UT150-AN/AL/RET/EX
Relay output
Voltage pulse output
Current output
Relay output
Voltage pulse output
Current output
Relay output
Voltage pulse output
Current output
Relay output
Voltage pulse output
Current output
Relay output
Voltage pulse output
Current output
Relay output
Voltage pulse output
Current output
Standard Type Model
External Appearance
Output
Options
UT152-RN
UT152-VN
UT152-AN
UT152-RN/AL
UT152-VN/AL
UT152-AN/AL
UT152-RN/AL/RET
UT152-VN/AL/RET
UT152-AN/AL/RET
UT152-RN/AL/EX
UT152-VN/AL/EX
UT152-AN/AL/EX
UT152-RN/AL/RS
UT152-VN/AL/RS
UT152-AN/AL/RS
UT152-RN/AL/RET/EX
UT152-VN/AL/RET/EX
UT152-AN/AL/RET/EX
Relay output
Voltage pulse output
Current output
Relay output
Voltage pulse output
Current output
Relay output
Voltage pulse output
Current output
Relay output
Voltage pulse output
Current output
Relay output
Voltage pulse output
Current output
Relay output
Voltage pulse output
Current output
UT155-RN
UT155-VN
UT155-AN
UT155-RN/AL
UT155-VN/AL
UT155-AN/AL
UT155-RN/AL/RET
UT155-VN/AL/RET
UT155-AN/AL/RET
UT155-RN/AL/EX
UT155-VN/AL/EX
UT155-AN/AL/EX
UT155-RN/AL/RS
UT155-VN/AL/RS
UT155-AN/AL/RS
UT155-RN/AL/RET/EX
UT155-VN/AL/RET/EX
UT155-AN/AL/RET/EX
Relay output
Voltage pulse output
Current output
Relay output
Voltage pulse output
Current output
Relay output
Voltage pulse output
Current output
Relay output
Voltage pulse output
Current output
Relay output
Voltage pulse output
Current output
Relay output
Voltage pulse output
Current output
UT130
48x48x100mm
3-digit display
Number of SP: 2
UT150
48x48x100mm
4-digit display
Number of SP: 2
UT152
48x96x100mm
4-digit display
Number of SP: 2
UT155
96x96x100mm
4-digit display
Number of SP: 2
Without alarm
Without alarm
Without alarm
With 2 alarms
Without
other options
Without
other options
Without
other options
Without
other options
With 2 alarms
With 2 alarms
Without alarm
With 2 alarms
With communication
With
retransmission
output
With external
contact input
With communication
With retransmission
output/external
contact input
With
retransmission
output
With external
contact input
With communication
With retransmission
output/external
contact input
With
retransmission
output
With external
contact input
With communication
With retransmission
output/external
contact input
Note 1: Heating/cooling control type is available in addition to the standard type described above. Refer to the following pages.
Note 2: For options, the combinations other than those mentioned above are available. Refer to the following pages.
