YOKOGAWA UT150 Technical Information

5-6
<Toc> <Ind>
TI 05C01E02-01E 1st Edition : Oct. 31, 2001-00

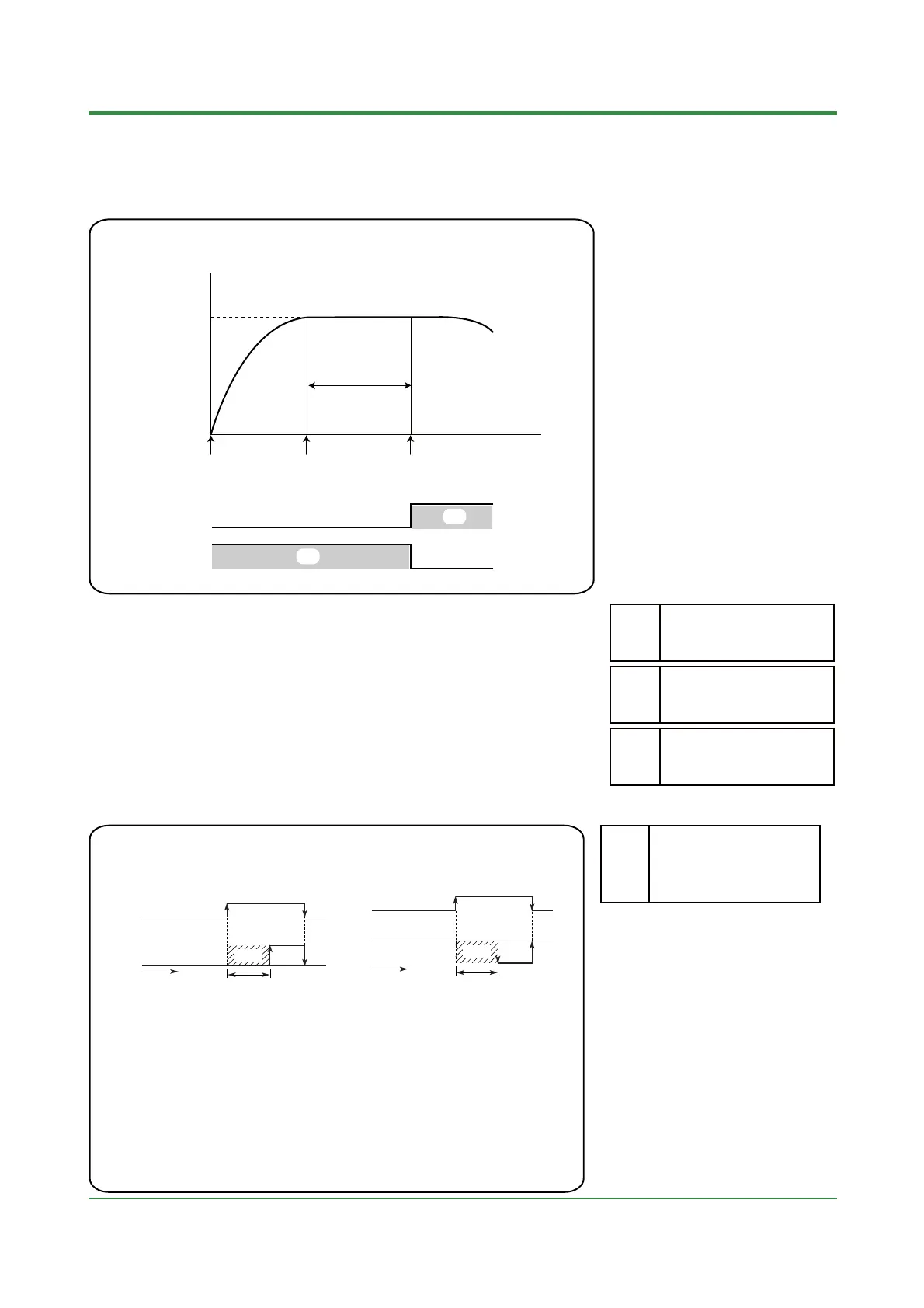

5.9 Using Timer Function (Turning on External
Contact Outputs after the Set Time Elapses)
•
Thi
s
f
unc
ti
on
i
s ava
il
a
bl
e
f
or
UT150/UT152/UT155 with the "/EX/AL" or
"/EX/HBA" option.
•
Set "0" or "1" for the setup parameter
"DIS" to use Timer.
The external contact terminals for
startingTimer are different according to
the parameter "DIS" setting. Refer to "8.3
Wiring".
•
"Energized" or "De-energized" is set
using the setup parameters "AL1" and
"AL2".
•
Time unit is set using the setup
parameter "TTU".
•
Timer time is set using the operating
parameters "T1" and "T2".
•
The parameter "T1" is for "AL1", and
"T2" is for "AL2".
•
The timer function turns on or off external contact outputs when the timer setting time
elapses after the external contact input TMR turns on.
Timer time
0.00 to 99.59(hour and minute or
minute and second)
Timer time unit is set by "TTU"
T1
T2
Parameter Range
Timer function (energized): 23
Timer function (de-energized): 24
AL1
AL2
Timer time unit
0: hour and minute
1: minute and second
TTU
Heater
switch on
Timer setting time
20 minutes
External contact
input TMR on
(Timer starts)
Time up
180 °C
Temperature
Time
For external contact
output (energized)
OFF
For external contact
output (de-energized)
OFF
SP
ON
ON
•
Timer function (Energized)
External contact
(TMR)
Opn
(off)
Opn
Opn
(off)
Cls (on)
Timer setting
Time
The output contact closes when the timer setting
has passed since external contact was closed.
Then, the output contact opens immediately
when the external contact is opened.
Cls
Blinking
External contact
(TMR)
Opn
Cls (off)
Opn
Cls(off)
Opn(on)
Timer setting
Time
The output contact opens when the timer setting
has passed since external contact was closed.
Then, the output contact closes immediately
when the external contact is opened.
Cls
Blinking
•
Timer function (De-energized)
0: Timer Starts / Stops, SP switching
1: Timer Starts / Stops,
RUN / STOP switching
2: RUN / STOP switching, SP switching
DIS
Opn
