8-2
<Toc> <Ind>
TI 05C01E02-01E 1st Edition : Oct. 31, 2001-00
CAUTION
1) Before you start wiring, turn off the power source and use a tester to check that the controller
and cables are not receiving any power in order to prevent electric shock.
2) Wiring should be carried out by personnel with appropriate electrical knowledge and experience.
IMPORTANT
• Always fix a terminal cover bracket to the UT130 and UT150 controllers before wiring if an
optional tional anti-electric-shock terminal cover (part number: L4000FB) is used.
• Two types of optional anti-electric-shock terminal covers (part numbers: T9115YE and T9115YD)
are available for the UT152 and UT155 controllers, respectively.

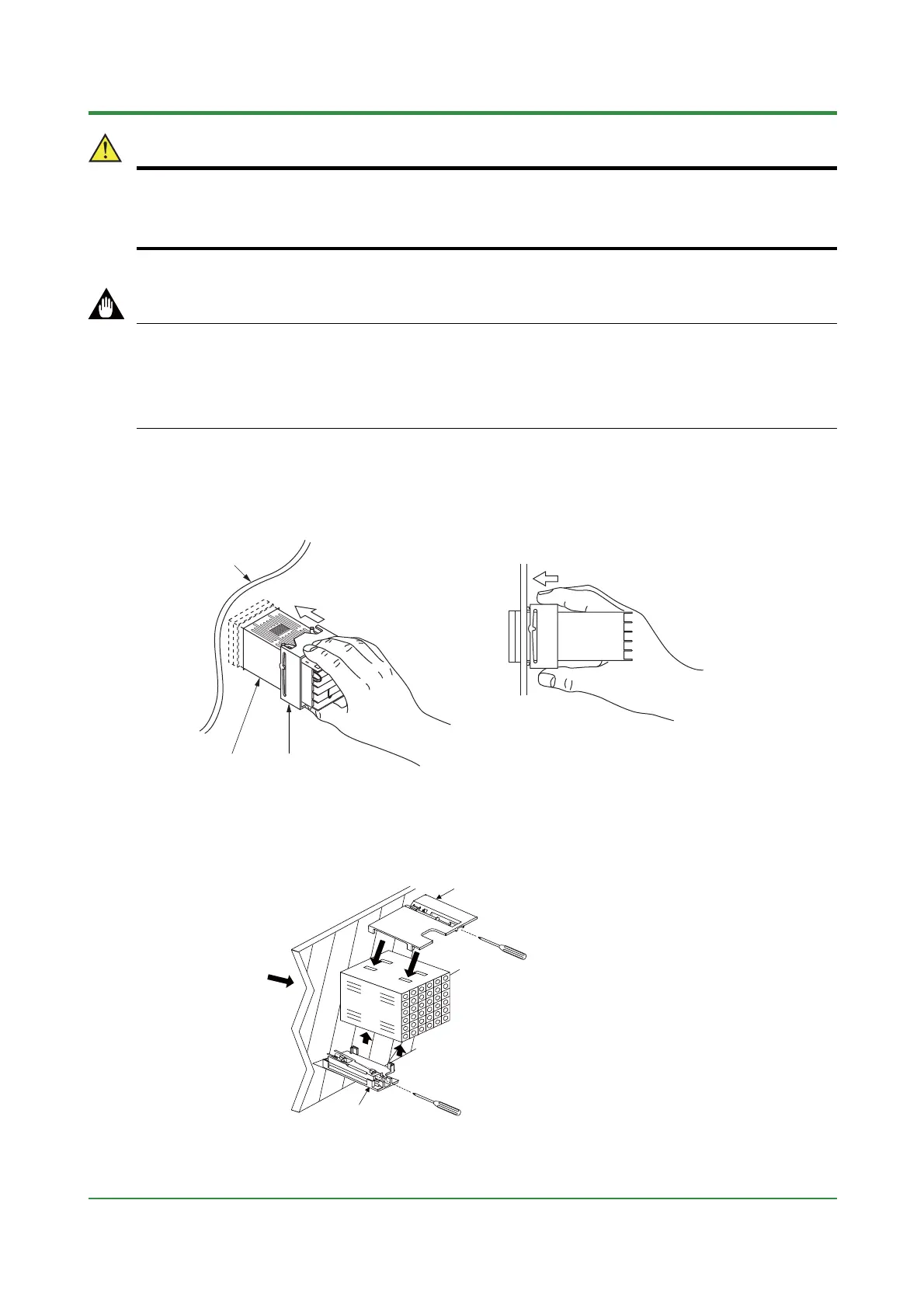

■ How to Mount UT130/UT150
1. Affix the bracket over the back
end of the controller.
2.
Push the bracket to the panel,
and then secure the bracket
into position.
Panel
Bracket
UT130/UT150
[ How to remove the bracket ]
To move the bracket, push down the center of the upper and lower parts
of the controller softly. The bracket is released from the latch.
■ How to Mount UT152/UT155
Insert a screwdriver
into the brackets to
tighten the screws.
Large bracket
(top)
Terminal board
Panel
Small bracket
(bottom)
Direction for mounting
Insert the controller into the opening with the terminal board facing the front.
Set and tighten the top and bottom brackets on the controller to fix it on the
panel.
To Next Page
