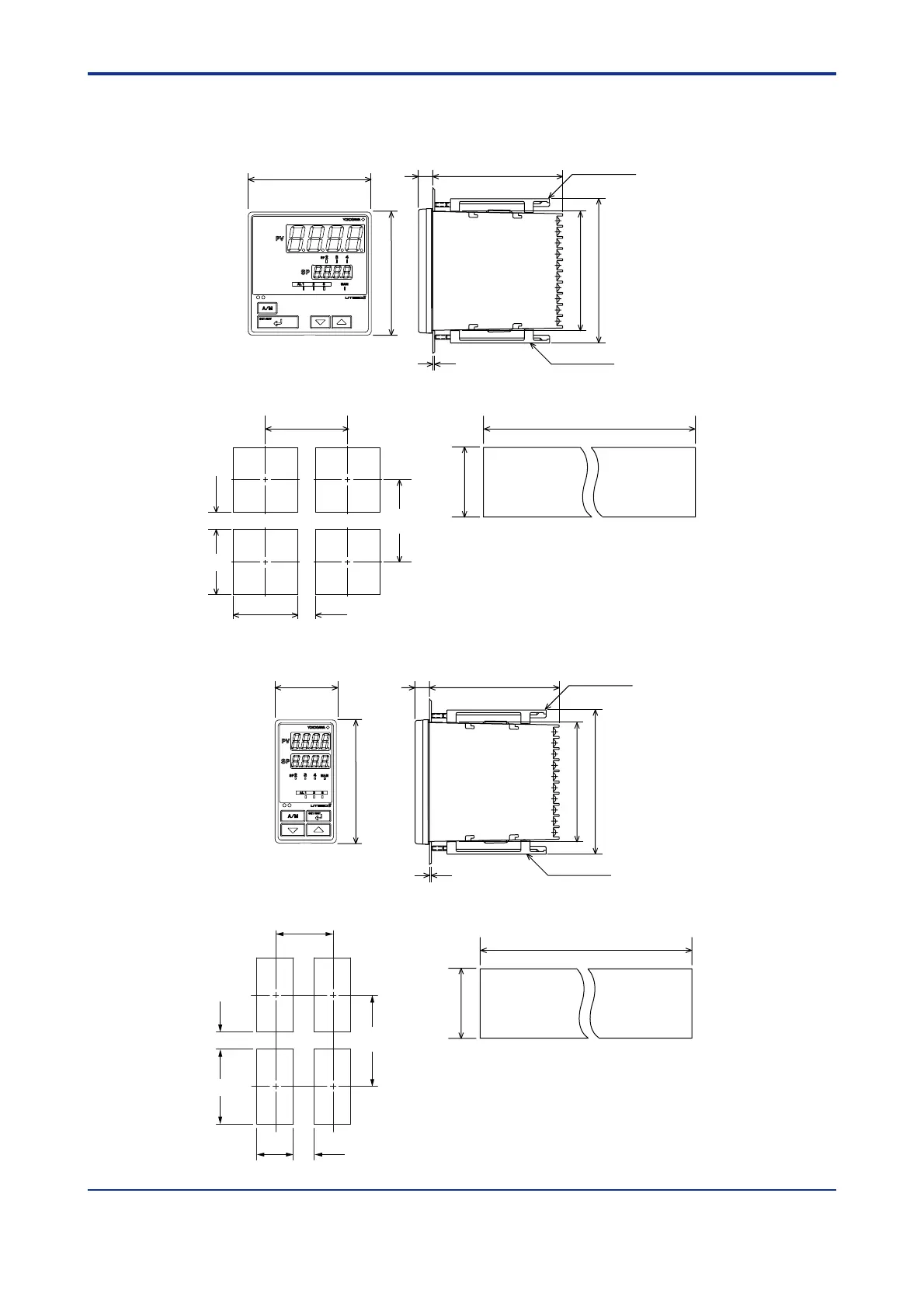

■ External Dimensions and Panel Cutout Dimensions
(25)
(53)
[(N-1)96+92]117 min.
145 min.
+0.8
0
+0.8
0
92
+0.8
0
92
+0.8
0
92
"N" stands for the number of controllers to be
installed.
However, the measured value applies if N  5.
100
11
UT350
Small bracket
Large bracket
91.8
112
Unit: mm
96
96
1 to 10 mm (Panel thickness)
General installation Side-by-side close installation
[(N-1)48+45]
+0.6
0
+0.8
0
92
"N" stands for the number of controllers to be
installed.
However, the measured value applies if N  5.
10048 11
UT320
Small bracket
Small bracket
91.8
96
112
Unit: mm
45
+0.6
0
(25)
(53)
145 min.
+0.8
0
92
70 min.
1 to 10 mm (Panel thickness)
General installation Side-by-side close installation
