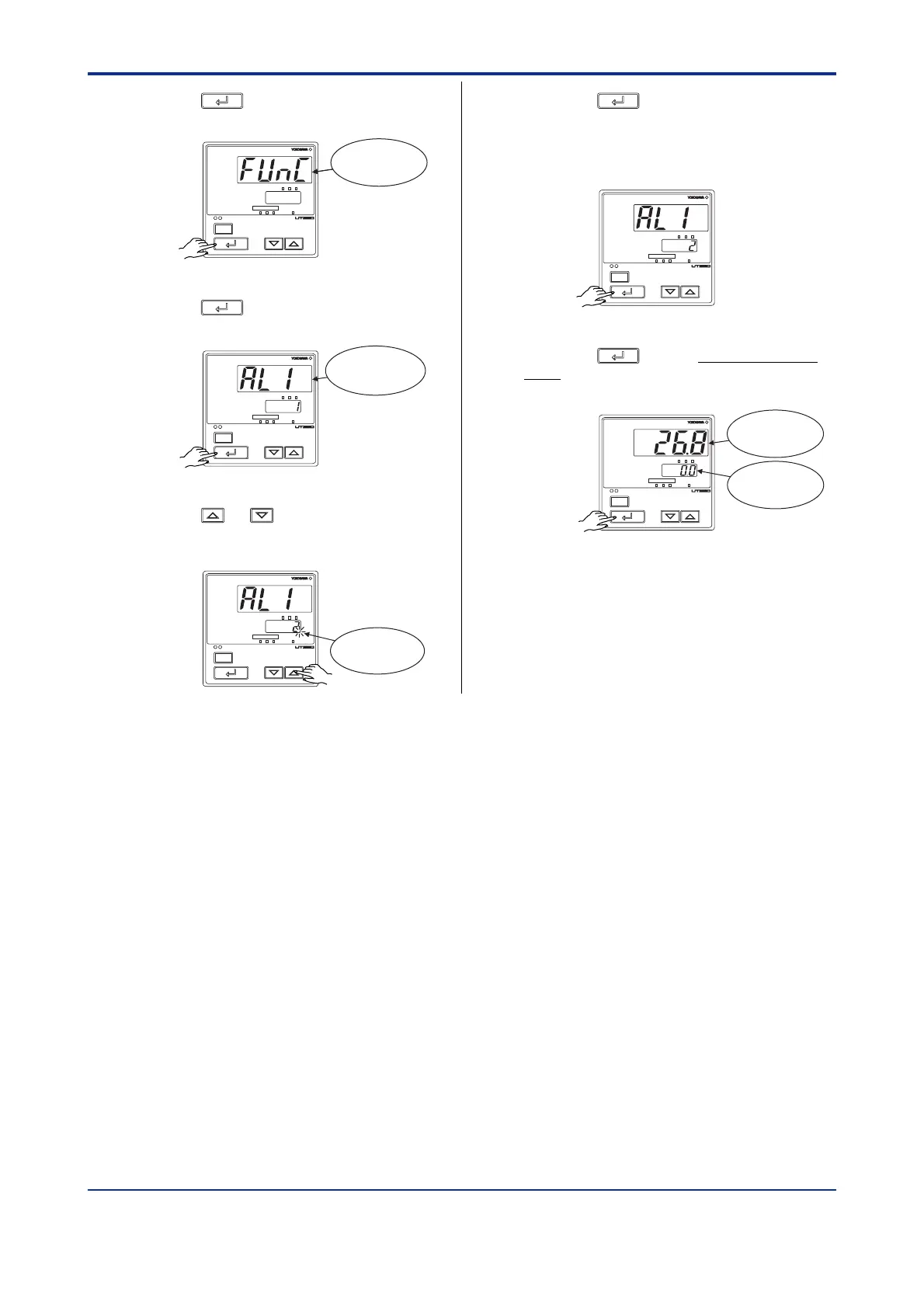

5.
Press the
SET/ENT
key once to display the
menu “FUNC”.
PV
MAN
A/M
SP
AL123
SP
234
SET/ENT
Displays
menu “FUNC”.
6.
Press the
SET/ENT
key several times to
display the parameter “AL1” (alarm-1 type).
PV
MAN
A/M
SP
AL123
SP
234
SET/ENT
Displays
parameter
“AL1”.
7.
Press the or key to display the
required setpoint. The figure below shows
an example of setting PV low limit alarm.
PV
MAN
A/M
SP
AL123
SP
234
SET/ENT
Blinks during
change.
8.
Press the
SET/ENT
key once to register the
setpoint.
You can take the same steps for alarm-2
type (AL2), and alarm-3 type (AL3) that are
displayed after this.
PV
MAN
A/M
SP
AL123
SP
234
SET/ENT
9.
Press the
SET/ENT
key for more than 3 sec-
onds. This returns you to the display
shown at power-on (figure below).
PV
MAN
A/M
SP
AL123
SP
234
SET/ENT
Displays
target setpoint.
Displays PV.
10.
When setting an alarm setpoint, see “3.4
Setting Alarm Setpoints.”
