YS-e Instruction Manual 76-QD0444EN-00Y01-00.doc
13

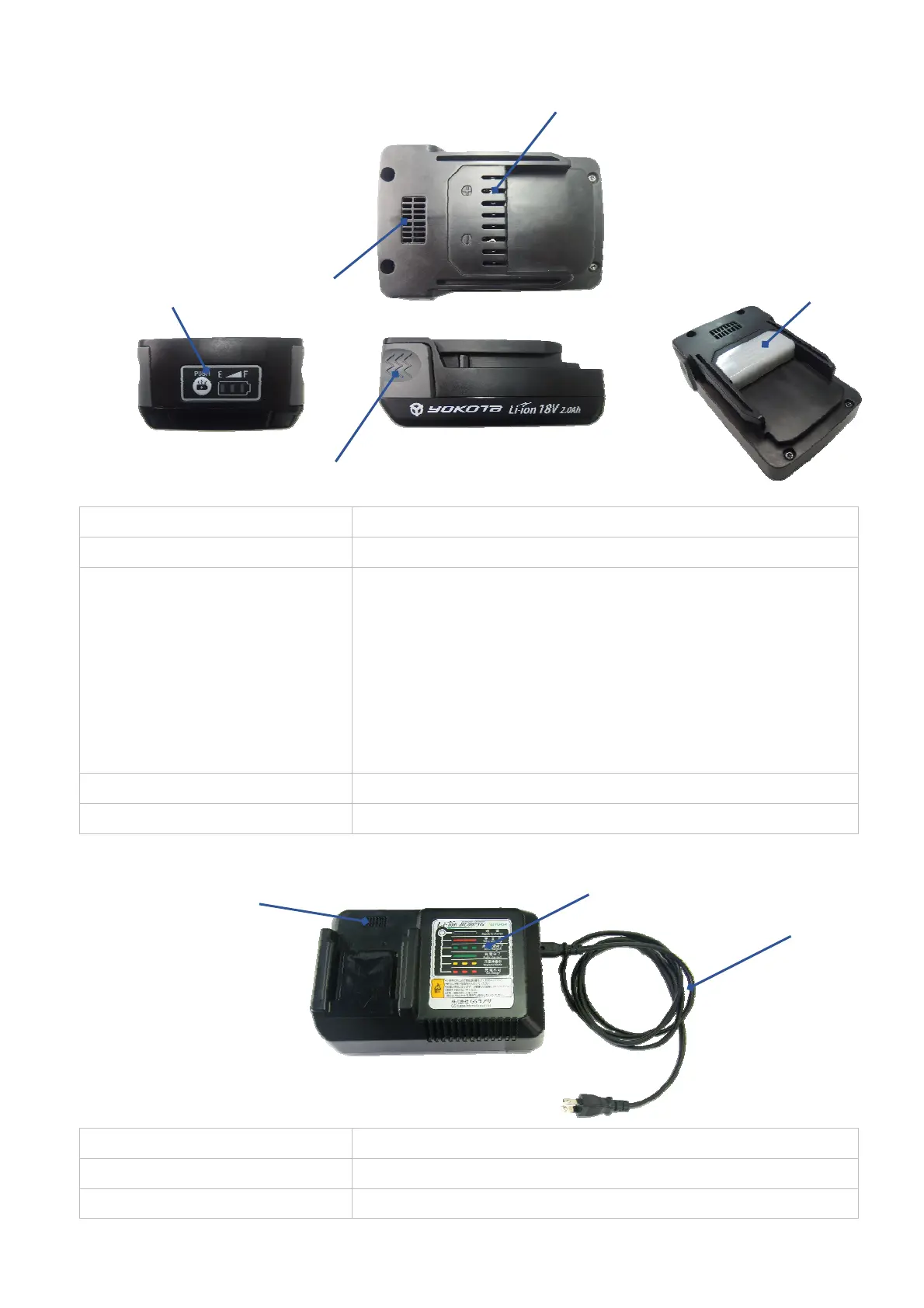

・Battery Pack
① Terminal part
Terminal for connection with the tool.
② Ventilation opening
Air intake for cooling the inside of the battery pack during charging.
③ Battery level indicator lamp
When PUSH button is pressed, the LED(s) light up and indicate the
level of the battery pack.
<<Guide for battery level>>
3 LEDs lighting: Not less than 75%
2 LEDs lighting: 30 to 75%
One LED lighting: 5 to 30% (charge the battery pack as soon as
possible)
④ Anti-short-circuit cap
Cap to prevent from short-circuit of terminal parts.
⑤ Release button
Button to release the battery pack from the tool.
・Battery Charger
① Indicator lamp
LED lamp indicating the charging level.
② Ventilation openings
Openings for cooling the battery pack.
③ Power supply cord
③
④
①
②
③
②
⑤
①
