York AFFINITY BHZ - Unit Dimensions and Clearances

BHX Unit 4 Point Load Weight
718419-YTG-D-0613
78 Johnson Controls Unitary Products

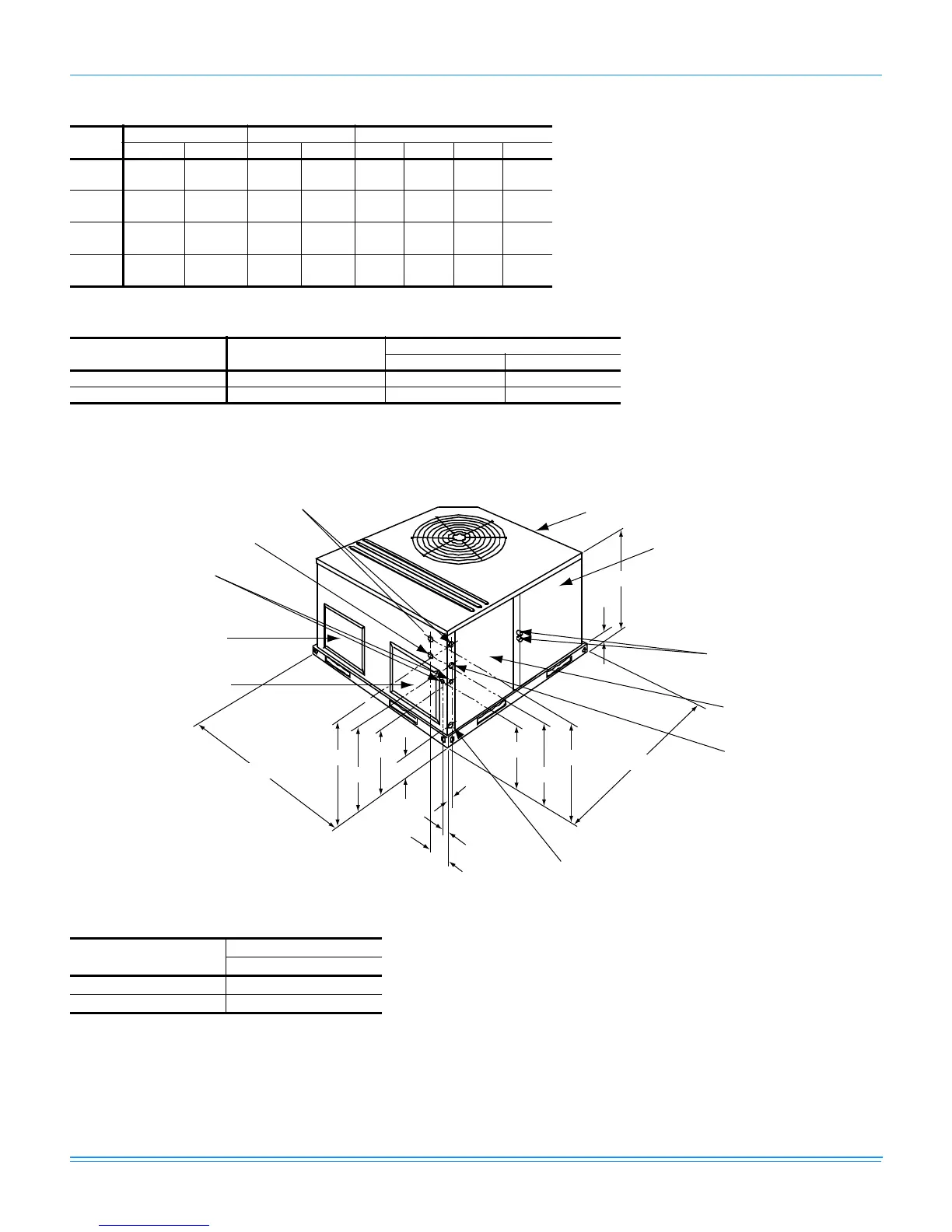

BHZ/BHQ/BHX Heat Pump Unit Dimensions
Model
(Tons)
Weight (lbs.) Center of Gravity 4 Point Load Location (lbs.)
ShippingOperatingX Y ABCD
BHX024
(2.0)
385 380 22.25 25 103 90 87 100
BHX036
(3.0)
405 400 21.75 24.25 108 90 92 110
BHX048
(4.0)
445 440 22 26 126 107 95 112
BHX060
(5.0)
465 460 22 26.25 133 113 99 116
BHZ/BHQ/BHX Unit Accessory Weights
Unit Accessory Model
Weight (lbs.)
Shipping Operating
Add Economizer All 45 40
Add Electric Heat
1
All 13 12
1. Weight given is for the maximum heater size available (25 kW).
Table 1: BHZ Unit Dimensions Front
Unit Model
Dimensions
“A”
BHZ 024, 030, 036 33-1/2
BHZ 042, 048, 060 41-1/2
FRONT
(OVERALL)
(OVERALL)
(OVERALL)
COMPRESSOR SERVICE
ACCESS COMPARTMENT
PANEL
REFRIGERANT
CONNECTIONS
ELECTRICAL/FILTER
SERVICE ACCESS
COMPARTMENT PANEL
HIGH VOLTAGE CONN.
1-23/64" DIA. KNOCKOUT
UNIT CONDENSATE
CONNECTION 3/4" NPTF
(TRAP REQUIRED)
SIDE RETURN
AIR OPENING
SIDE SUPPLY
AIR OPENING
LOW VOLTAGE CONN.
7/8" DIA. KNOCKOUT
HIGH VOLTAGE CONN.
1-31/32" DIA. KNOCKOUT
HIGH VOLTAGE CONN.
7/8" DIA. KNOCKOUT
“A”
3-3/4
1-1/2
2-1/2
2-3/8
4-1/2
49-1/8
28-1/4
28-1/4
47-1/4
17-1/4
17-1/4
22-1/4
22-1/4
