Weights and Dimensions
BHZ/BHQ/BHX Unit Weights
BHZ Unit 4 Point Load Weight
BHQ Unit 4 Point Load Weight

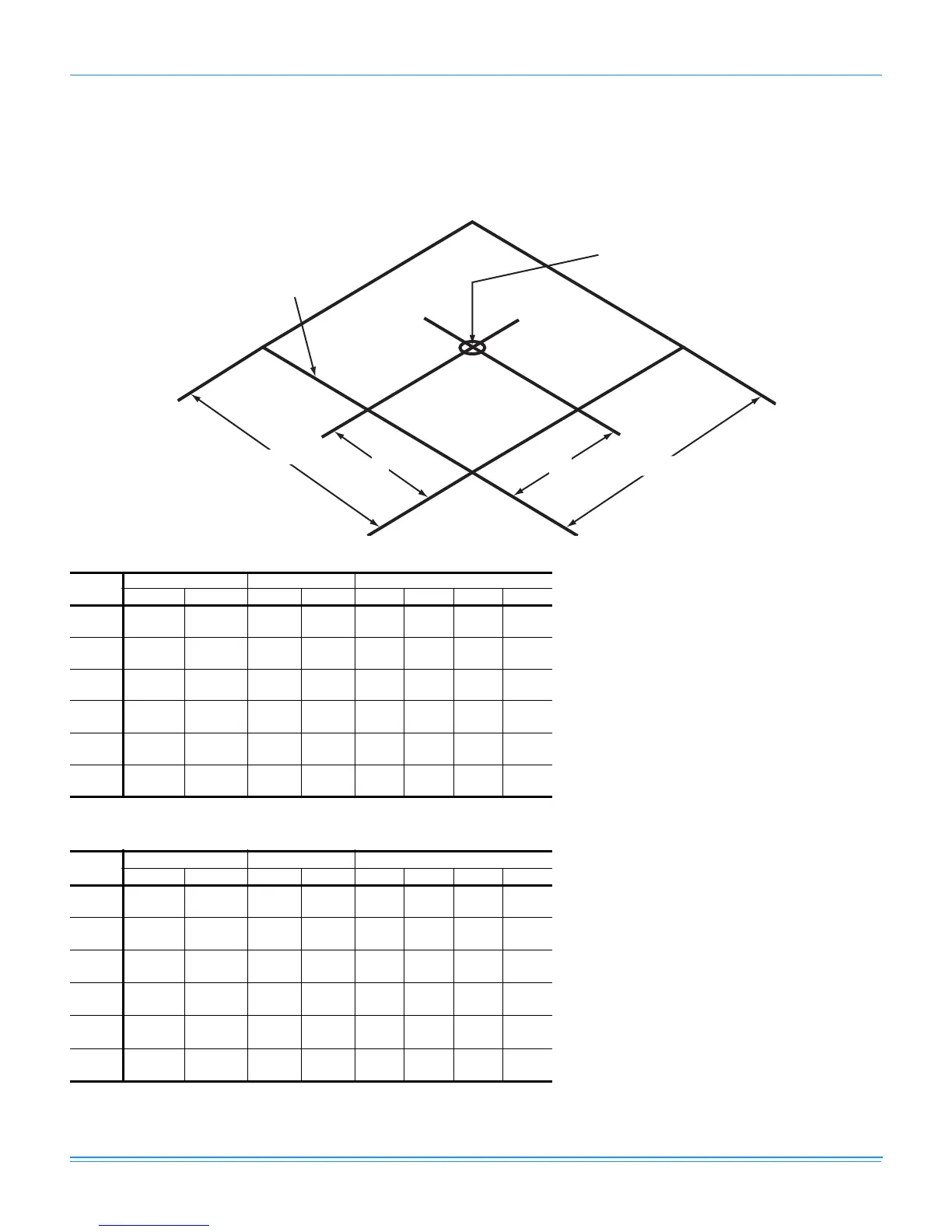

Unit 4 Point Load Location
Model
(Tons)
Weight (lbs.) Center of Gravity 4 Point Load Location (lbs.)
ShippingOperatingX Y ABCD
BHZ024
(2.0)
360 355 22.25 25 96 84 81 93
BHZ030
(2.5)
355 350 22.25 25 96 84 81 93
BHZ036
(3.0)
395 390 22.25 25 106 92 89 102
BHZ042
(3.5)
445 440 22.25 25 120 104 101 115
BHZ048
(4.0)
490 485 22.25 25 132 115 111 127
BHZ060
(5.0)
500 495 22.25 25 135 117 113 130
Models
(To
ns)
Weight (lbs.) Center of Gravity 4 Point Load Location (lbs.)
ShippingOperatingX Y ABCD
BHQ024
(2.0)
360 355 22.25 25 96 84 81 93
BHQ030
(2.5)
380 375 22.25 25 102 89 86 98
BHQ036
(3.0)
405 400 22.25 25 109 95 92 105
BHQ042
(3.5)
425 420 22.25 25 114 100 96 110
BHQ048
(4.0)
445 440 22.25 25 120 104 101 115
BHQ060
(5.0)
495 490 22.25 26 137 122 109 122
X
CENTER OF
GRAVITY
49-1/8
FRONT
OF
UNIT
Y
47-1/4
"D"
"C"
"B"
"A"
