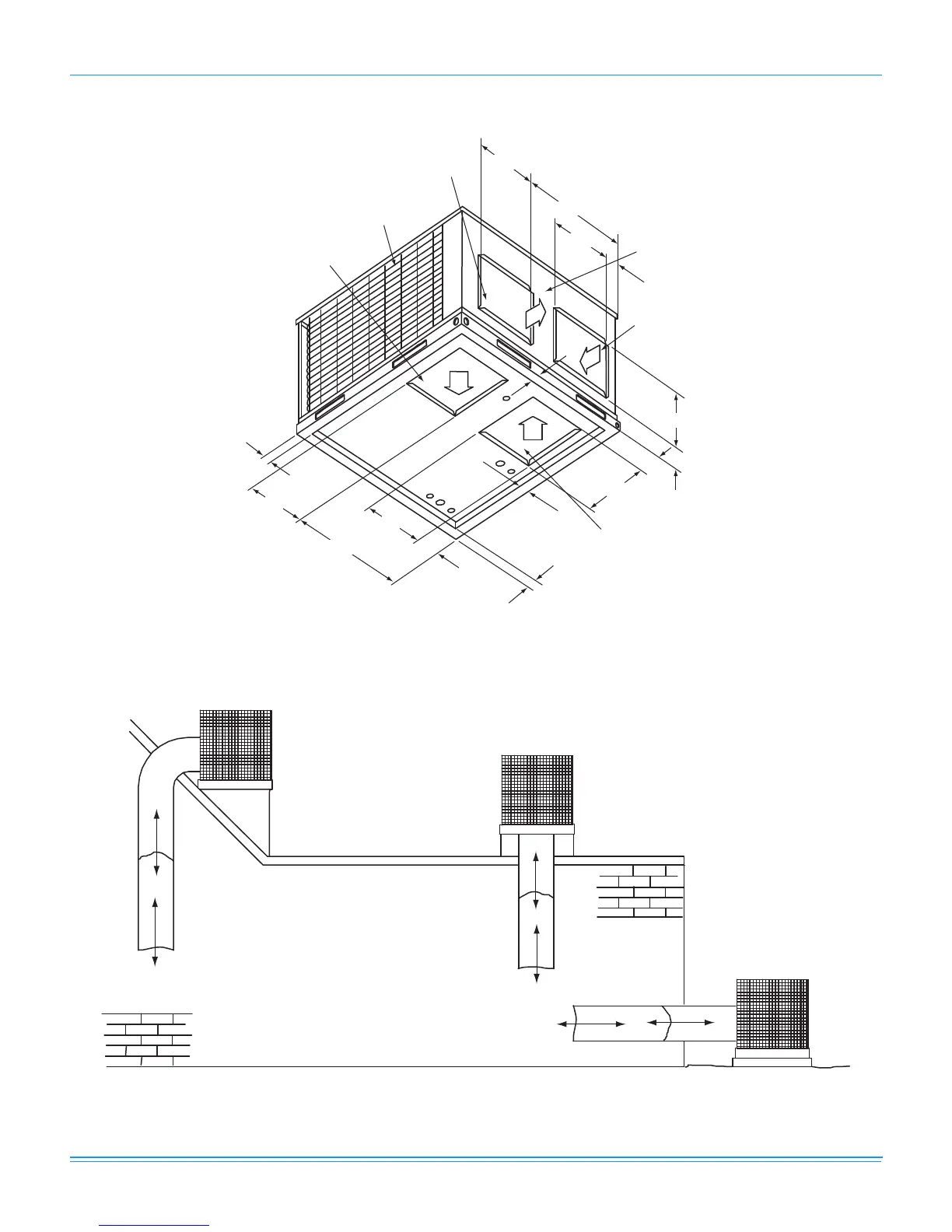

BHZ/BHQ/BHX Unit Dimensions Back and Bottom
* See Features for details.
BHZ/BHQ/BHX Unit Typical Duct Applications
4
14-1/2
28-3/8
14-1/2
BACK
3-3/8
SIDE RETURN
AIR OPENING
14-1/2
4-1/4
3-1/2
15
1-3/4
1-3/4
BOTTOM RETURN
AIR OPENING
15
28-9/16
15
1-3/4
BOTTOM SUPPLY
AIR OPENING
*CONDENSER
COIL
SIDE SUPPLY
AIR OPENING
ROOF CURB
INSTALLATION
REAR DUCT
ROOF CURB
INSTALLATION
BOTTOM DUCT
SLAB ON GROUND
INSTALLATION
