York AFFINITY SERIES - Typical Wiring Diagram D*Np 030-048 Single

York AFFINITY SERIES
40 pages
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
280241-YIM-D-0909
Johnson Controls Unitary Products 29

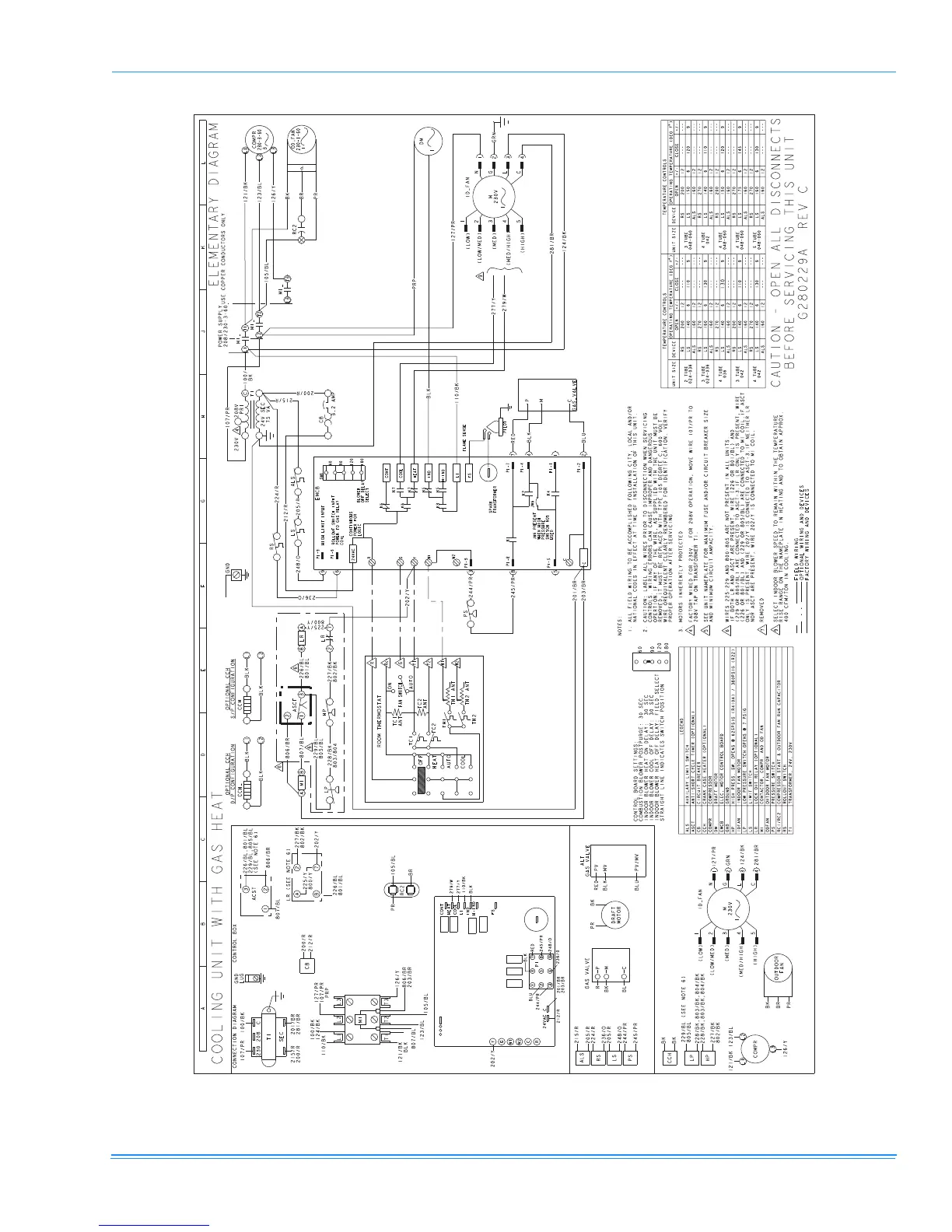

FIGURE 24 - TYPICAL WIRING DIAGRAM D*NP 030-048 SINGLE STAGE GAS HEAT (208/230-3-60 POWER
SUPPLY)
