York CM48C User Manual

5292154-UIM-A-0317
Johnson Controls Unitary Products 3
$
%
´
23(1,1*
&
23(1,1*

'
23(1,1*
$
´
´
%2772023(1,1*
',0(16,216

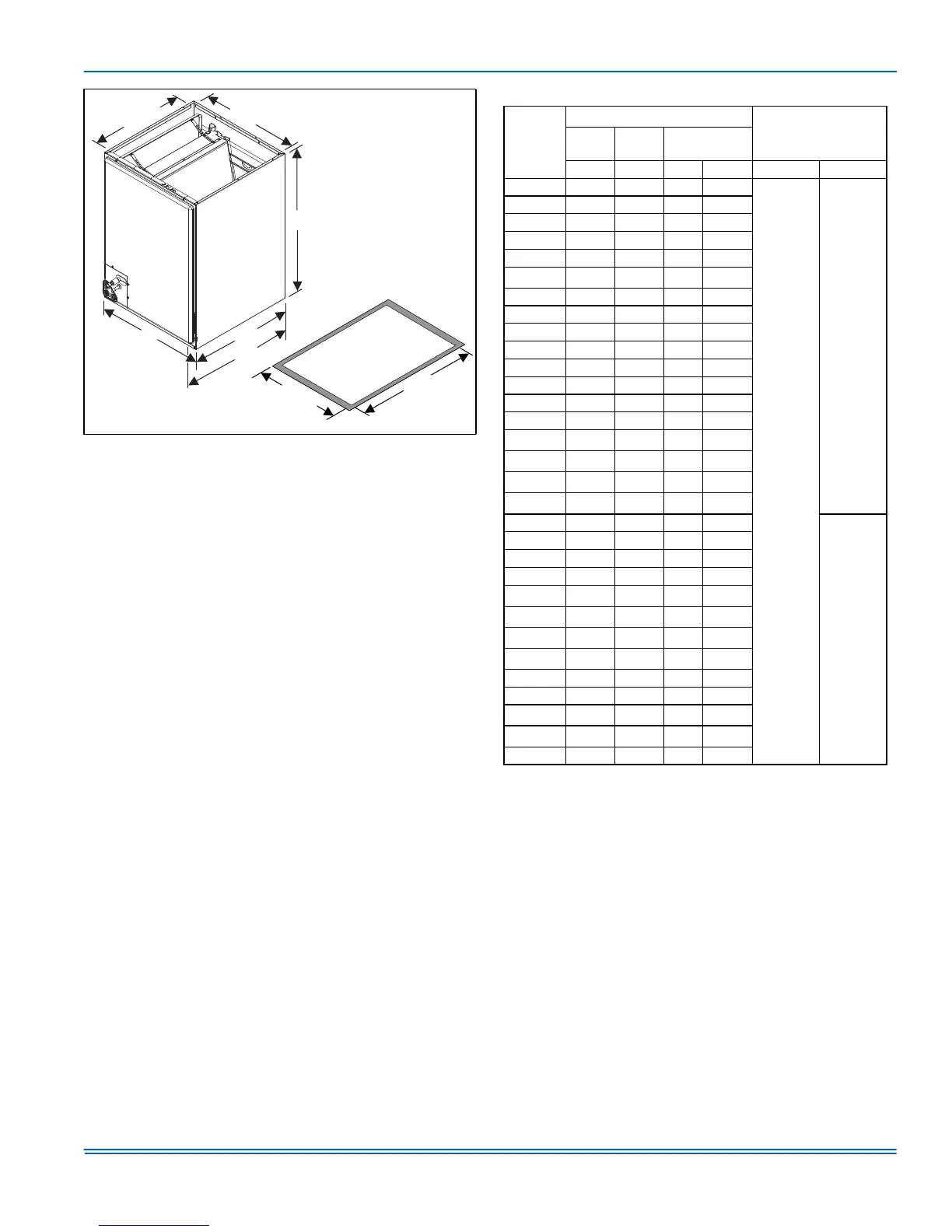

TABLE 2: Dimensions - CM Multi-position Full Cased Coils
Models
1
1. Asterisk (*) denotes coil model is available as a flex coil or with factory
installed TXV.
Asterisk (#) denotes coils only available with Factory Mount EEV.
Dimensions
2
2. All dimensions are in inches.
Refrigerant
Connections
3,4,5
3. Refrigerant line sizes may require larger lines for extended line lengths.
See Application Data part number 247077.
4. Adapter fitting must be field installed for other line set size.
5. See outdoor unit technical guide for proper line set size.
Height Width
Opening
Widths
A B C D Liquid Vapor
CM18A* 19-1/2 14-1/2 13-1/2 13-1/2
3/8
3/4
CM18B 19 17-1/2 16-1/2 16-1/2
CM24A* 19-1/2 14-1/2 13-1/2 13-1/2
CM24B* 19 17-1/2 16-1/2 16-1/2
CM24C 21 21 20 20
CM25B
#
25-5/8 17-1/2 16-1/2 16-1/2
CM30A* 25-1/2 14-1/2 13-1/2 13-1/2
CM30B* 23 17-1/2 16-1/2 16-1/2
CM30C 23 21 20 20
CM30D 25 24/1/2 23-1/2 23-1/2
CM36A 25-1/2 14-1/2 13-1/2 13-1/2
CM36B* 25-5/8 17-1/2 16-1/2 16-1/2
CM36C* 25 21 20 20
CM36D 25 24-1/2 23-1/2 23-1/2
CM37B
#
25-5/8 17-1/2 16-1/2 16-1/2
CM37C
#
25 21 20 20
CM38B
#
25-5/8 17-1/2 16-1/2 16-1/2
CM38C
#
33 21 20 20
CM42C* 27 21 20 20
7/8
CM42D 27 24-1/2 23-1/2 23-1/2
CM48C* 33 21 20 20
CM48D* 32-3/4 24-1/2 23-1/2 23-1/2
CM49C
#
33 21 20 20
CM49D
#
32-3/4 24-1/2 23-1/2 23-1/2
CM50C
#
37-1/4 21 20 20
CM50D
#
37-1/4 24-1/2 23-1/2 23-1/2
CM60C* 33 21 20 20
CM60D* 32-3/4 24-1/2 23-1/2 23-1/2
CM61C
#
37-1/4 21 20 20
CM61D
#
37-1/4 24-1/2 23-1/2 23-1/2
CM64D 32-3/4 24-1/2 23-1/2 23-1/2
