LIMITATIONS
These coils should be installed in accordance with all national and local
safety codes. Refer to Table 3.
SECTION III: COIL INSTALLATION
DUCT FLANGES
Three duct flanges are provided to attach ductwork to the coil. The
flanges are included in the parts bag along with three tie plates. Tie
plates are used to secure the coil to the furnace or to the modular air
handler as shown in Figures 5, 6, 8, 9, 11, & 12. Using the screws
included in the parts bag, duct flanges are attached as shown in Figure
4 (to secure the duct to the coil). If the flanges are not used, they may
be discarded.
Downflow (CF/CM) or Horizontal Right (CM):
The coil cabinet has a factory installed transition angle on the bottom
front side of the cabinet. For downflow and horizontal applications with
a furnace, this angle must be repositioned to the top front side of the
cabinet.
1. Remove two screws that fasten transition angle to bottom front of
cabinet.
2. Remove two screws from top front side of cabinet.
3. Remove transition angle, rotate angle 180
° end for end, and secure
to top front side of cabinet.
4. For installation with modular air handling unit, remove the transition
angle, and discard it.

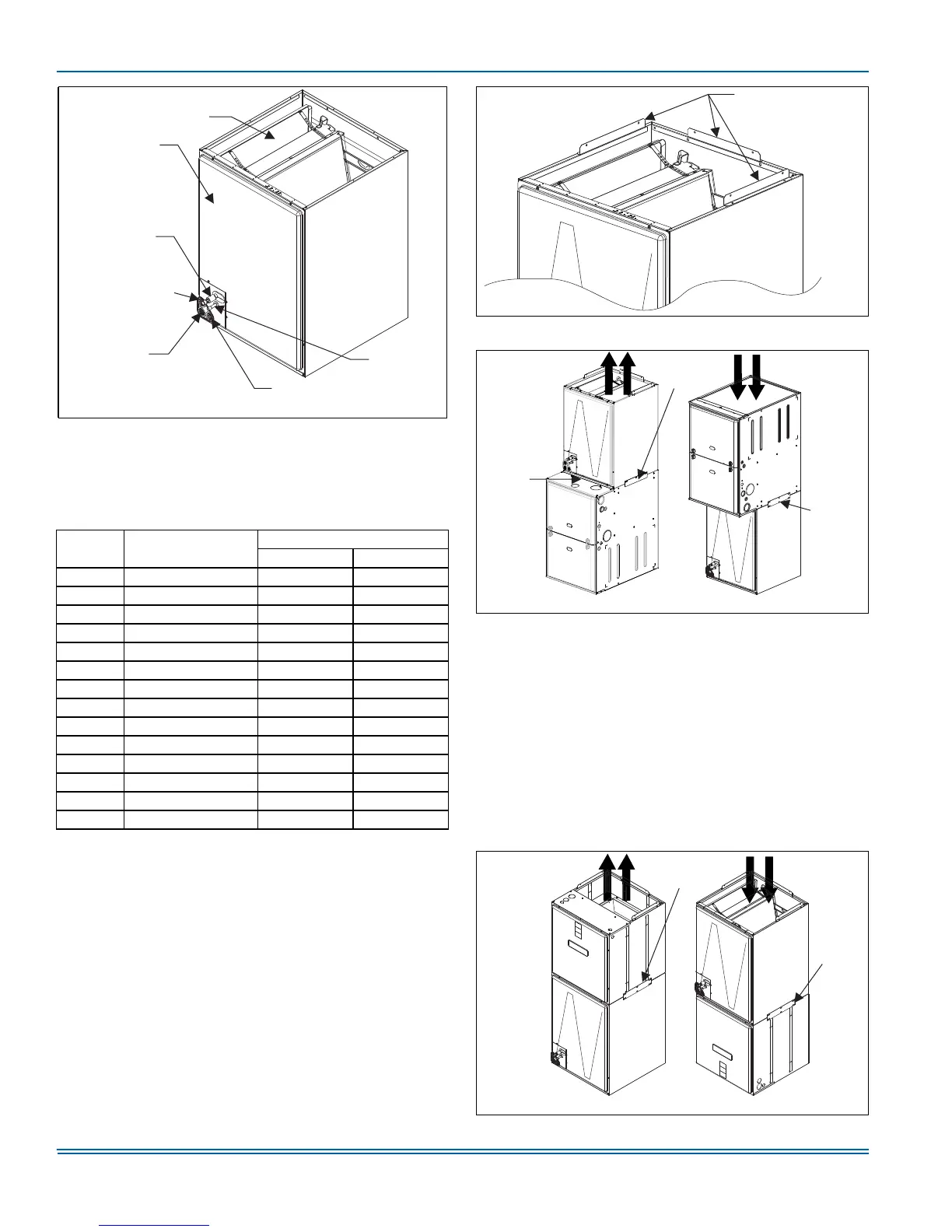

FIGURE 3: Component Location - Cased Coil CM Model
TABLE 3:
Coil Air Flow Limits
Coil
1
Size
1. Asterisk (#) denotes coils only available with Factory Mount EEV.
Outdoor Unit
Tons
CFM Limits
Minimum Maximum
18 1-1/2 525 675
24 2 700 900
25# 2 225 900
30 2-1/2 875 1125
36 3 1050 1350
37# 3 325 1350
38# 3 325 1350
42 3-1/2 1225 1575
48 4 1400 1800
49# 4 425 1800
50# 4 425 1800
60 5 1600 1800
60,64 5 1750 2250
61# 5 500 2250
COIL ACCESS
PANEL
VAPOR LINE
LIQUID LINE
VERTICAL POSITION -
SECONDARY DRAIN
VERTICAL OR
HORIZONTAL POSITION -
PRIMARY DRAIN
HORIZONTAL POSITION -
SECONDARY DRAIN
HORIZONTAL
POSITION - DRAIN PAN
A0268-001
FIGURE 4: Duct Flanges - Coils CF / CM
FIGURE 5: Vertical Applications with Furnaces
FIGURE 6: Vertical Applications with Modular Air Handlers
$
'8&7)/$1*(6
6KLSSHGLQEDJZLWKFRLO
'2:1)/2:
$
83)/2:
7,(
3/$7(
7,(3/$7(
75$16,7,21
$1*/(
)851$&(
&2,/
&2,/
)851$&(
DOWNFLOW
A0300-001
UPFLOW
TIE
PLATE
TIE PLATE
AIR
HANDLER
COIL
COIL
AIR
HANDLER
To Next Page
