YORK INTERNATIONAL 51
FORM 160.49-O1

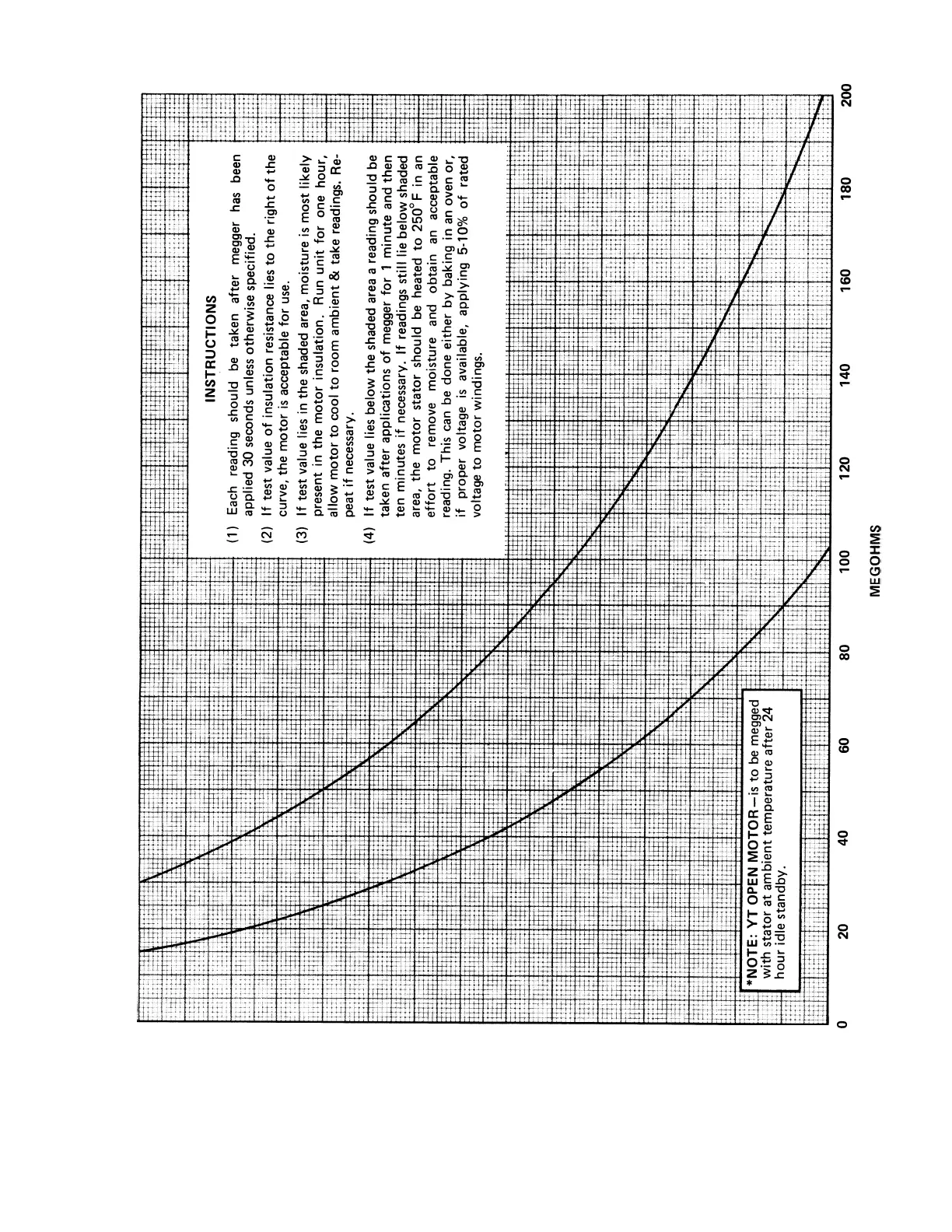

FIG. 24 – MOTOR STATOR TEMPERATURE AND INSULATION RESISTANCES
110 (43.3)
100 (37.8)
90 (32.2)
80 (26.7)
70 (21.1)
60 (15.6)
50 (10.0)
40 (4.4)
TEMPERATURE – °F (°C)
LD01086
