York J Series - Unit Identification and Installation; Nomenclature and Installation Overview

2
Outdoor Unit [SLC Series]
K
B

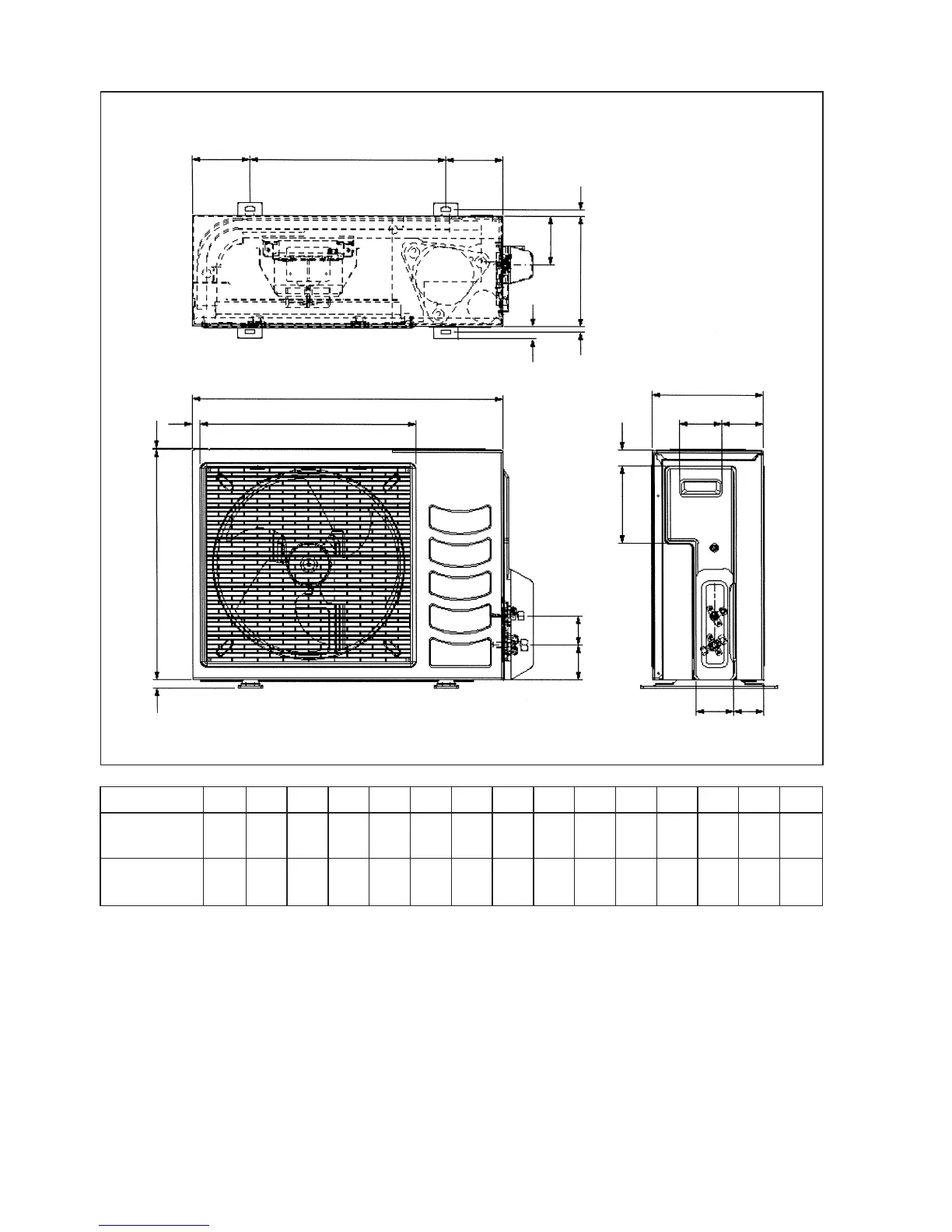

All dimensions are in mm / (in)
Dimension A B C D E F G H I J K L M N O
SL09C 600 475 245 418 177 35 93 81 83 55 398 101 97 17 22
(23.6) (18.7) (9.6) (16.4) (6.9) (1.3) (3.6) (3.1) (3.2) (2.2) (15.6) (3.9) (3.8) (0.6) (0.8)
SL15C 700 521 250 485 175 36 95 93 86 68 441 130 111 15 18
(27.5) (20.5) (9.8) (19.1) (6.8) (1.4) (3.7) (3.6) (3.3) (2.6) (17.3) (5.1) (4.3) (0.5) (0.7)
LL
C
N
N
M
30
(1.2)
A
DO
3
(0.1)
19
(0.7)
65
(2.6)
80
(3.1)
C
GH
I
J
EF
