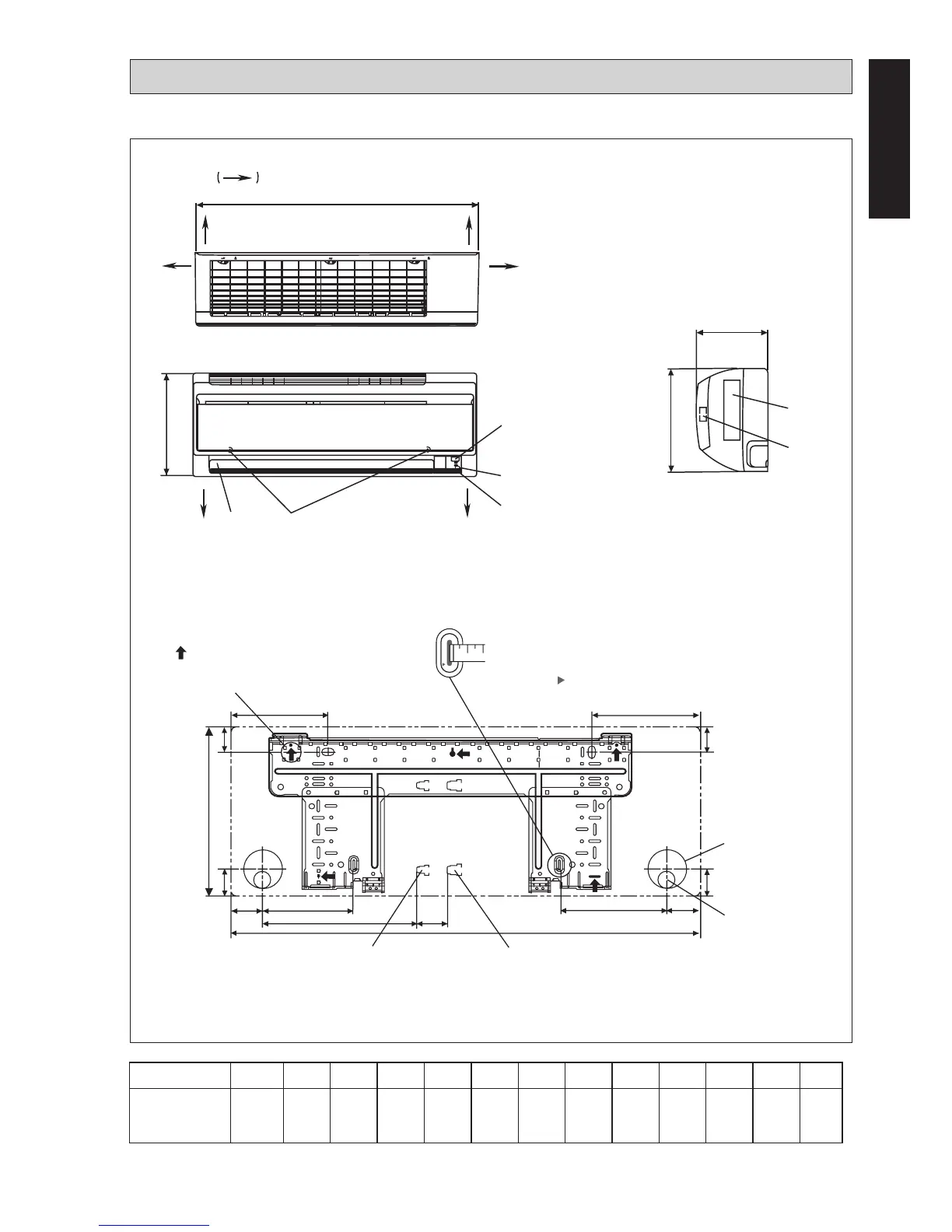

OUTLINE AND DIMENSIONS
Indoor Unit [WMJ Series]
A
THE MARK SHOWS PIPING DIRECTION
LEFT
REAR
TOP VIEW
REAR
RIGHT
B
BOTTOM
LOUVER FRONT GRILLE
FIXED SCREWS
(INSIDE)
BOTTOM
FRONT VIEW
SIGNAL RECEIVER
INDOOR UNIT
ON/OFF SWITCH
ROOM TEMPERATURE
THERMISTOR (INSIDE)
B
NAME
PLATE
TERMINAL
BLOCK
WITH
EARTH
TERMINAL
C
SIDE VIEW
Recommended mounting
plate retention spots
(5 spots in all)
D
Use tape measure as shown.
Position the end of a tape
measure at
B
G
All dimensions are in mm / (in)
H
JL
M
A
K
F
I
G
F
E
Through the wall
hole Ø 65mm
Drain hose
position
Gas pipe endLiquid pipe end
INSTALLATION
PLATE
Dimension A B C D E F G H I J K L M
WM10/15J 800 288 206 166 184 42 46 55 56 154 182 263 52
(31.5) (11.3) (8.1) (6.5) (7.2) (1.7) (1.8) (2.1) (2.2) (6.1) (7.2) (10.4) (2.0)
