York LC8 - Figure 3: GAS CONTROLS

Unitary Products Group
035-20353-001 Rev. B (0305) 6 of 8

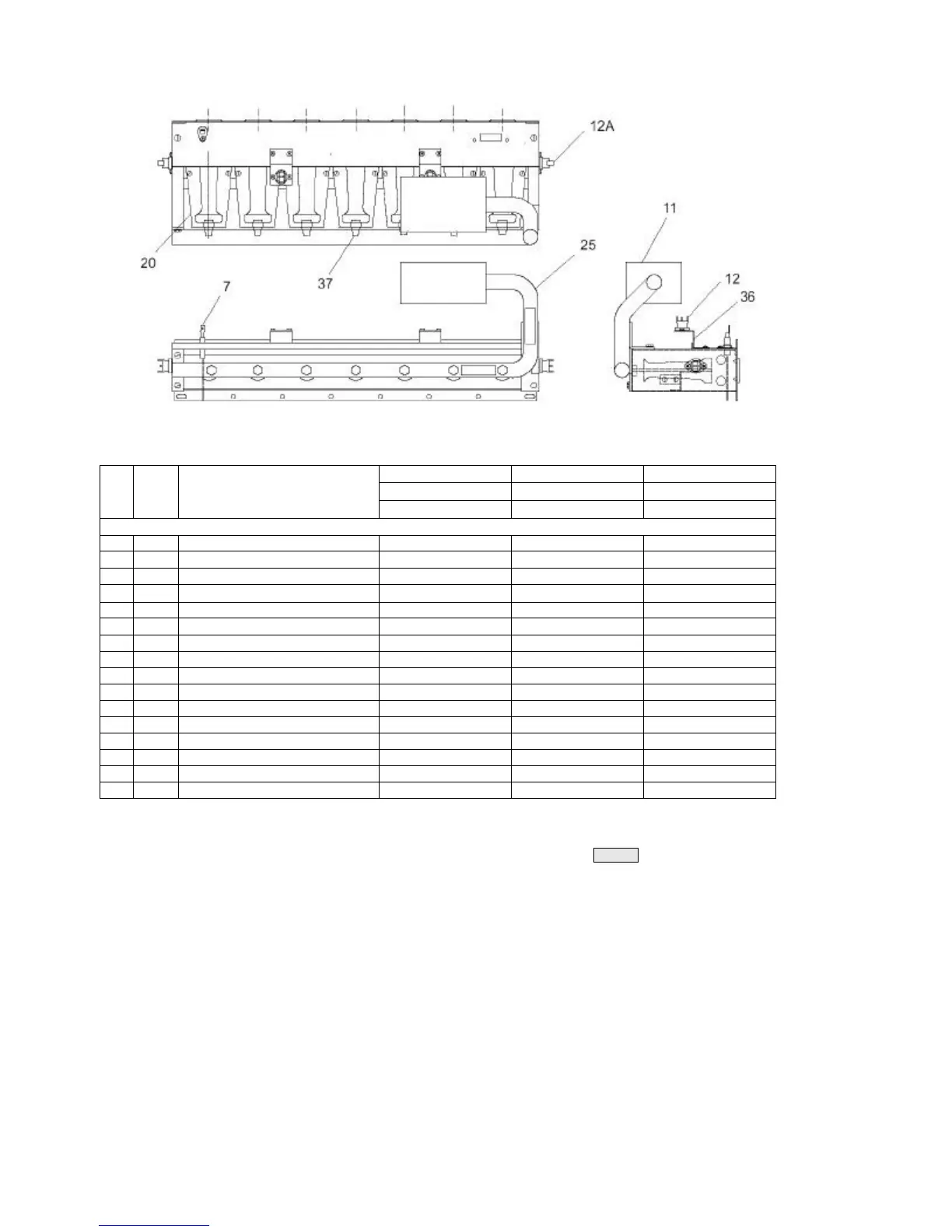

Figure 3: GAS CONTROLS
FIG ITEM DESCRIPTION
FC8T100C20UH11A FC8T120C16UH11A FC8T120C20UH11A
LC8T100C20UH11A --- LC8T120C20UH11A
(5 BURNER) (6 BURNER) (6 BURNER)
MISCELLANEOUS
* 41 FILTER (.75 x 16 x 25) 026-38508-000 026-38508-000 026-38508-000
2 42 SIGHT GLASS, OVAL 025-38899-000 025-38899-000 025-38899-000
2
43
GASKET, RESTRICTOR PLATE
028-13283-000 028-13261-000 028-13261-000
2
44
TUBING, SILICONE
028-12499-000 028-12499-000 028-12499-000
45
* 46 DIAGRAM, WIRING 035-19675-002 035-19675-002 035-19675-002
* 47 HARNESS, MAIN WIRING 373-19870-011 373-19870-012 373-19870-012
* 48 ISOLATOR, TUBE (3 Req’d) 028-09412-001 028-09412-001 028-09412-001
* 49 ISOLATOR, WASHER (3 Req’d) 028-09412-002 028-09412-002 028-09412-002
* 50 ISOLATOR,SLEEVE (3 Req’d) 028-09412-003 028-09412-003 028-09412-003
* 51 MOUNT, MOTOR 026-31459-000 026-31480-000 026-31459-000
* 52 GROMMET, 1/2” DIA. 025-30823-000 025-30823-000 025-30823-000
2 53 DOOR KNOB (4 Req’d) 026-39490-000 026-39490-000 026-39490-000
* 54 RETAINER, DOOR KNOB (4 Req’d) 021-31394-000 021-31394-000 021-31394-000
* 55 NUT, SELF THREADING (10 Req’d) 021-31395-000 021-31395-000 021-31395-000
* 56 RETAINER, SQUARE 028-15190-000 028-15190-000 028-15190-000
NOTE: *Not Shown
New replacement parts shown in bold face type at the first printing of parts list dated 3/05.
Major components and suggested stocking items are shown with shaded item number.
“<“ Across from row indicates a change in that row.
