YORK INTERNA
TIONAL
FORM 102.20-RP1(1
104)

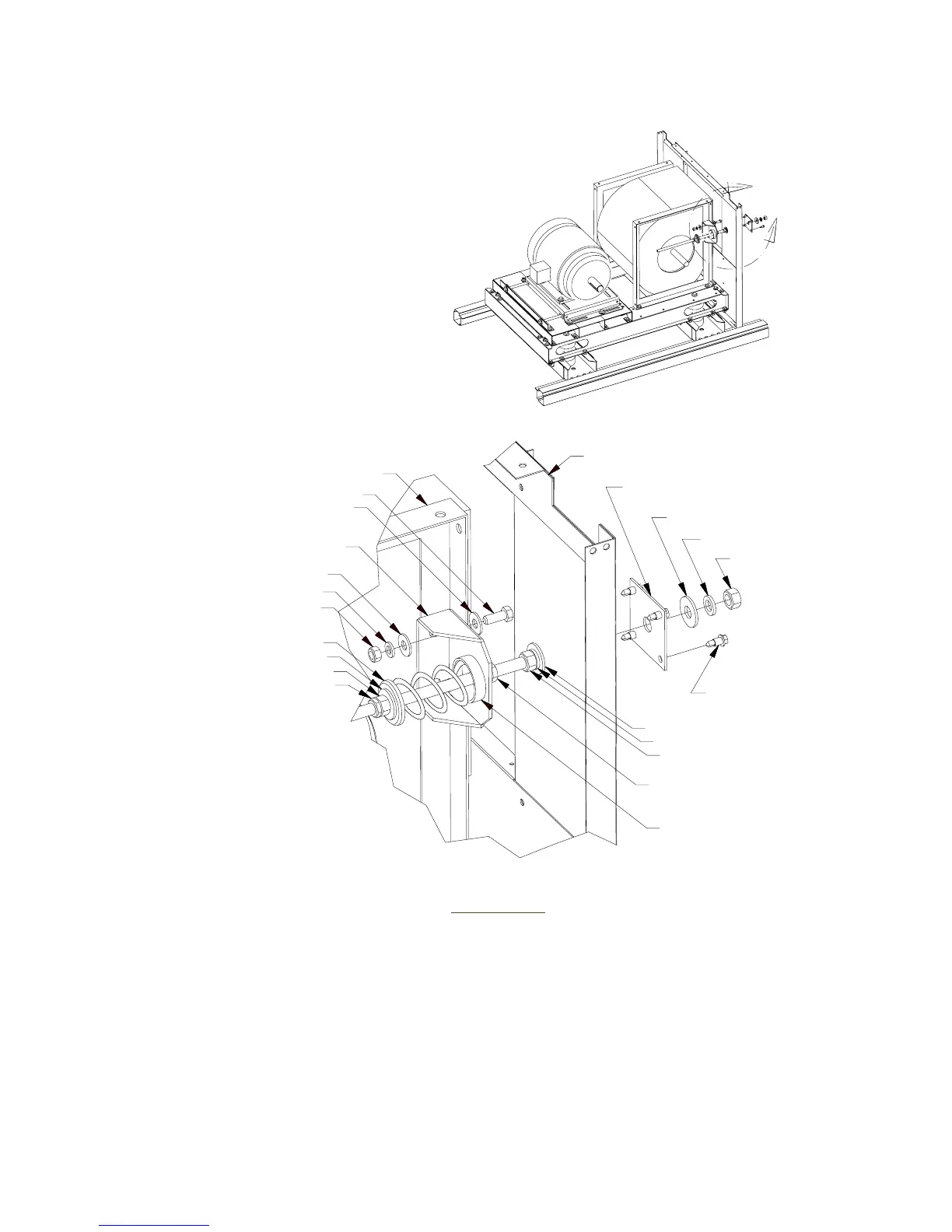

FIG. 3 - THRUST
RESTRAINT INST
ALLA
TION FOR
COMEFRI
AND INDUSTRIAL F
ANS DISCHARG-
ING INTO W
ALLS
LDO9700-2
086-00105-152
TH
REST
PLATE
FLAT
WASH
LOCK
WASH
HEX
NUT
021-
19515-000
FLAT
WASH
LOCK
WASHER
HEX
NUT
LOCK
NUT
HEX
NUT
FLAT
WASH
NEOPRENE
CUP
LOCK
NUT
HEX
NUT
FLAT
WASH
STEEL
CUP
021-19307-000
021-01155-000
021-01267-000
021-01267-000
021-01481-000
THRUST
REST
BRKT
FAN
WALL
ASSY
A
DETAIL
A
18
20
Table of Contents
Air Handling Units
1
Safety Symbols
2
Table of Contents
3
Fig. 1 - (See Table 1) Segment Availability
7
Fasteners for Solution Units
9
Fasteners for Solution Units
10
Gasket/Caulk/Adhesive for Solution Units
11
Gasket/Caulk/Adhesive for Solution Units
12
Door Latching Parts
13
Door Latching Parts
14
Fig. 2 - Door Latching Parts
15
Door Gaskets
14
Thrust Restraint Kit Selection
16
Thrust Restraint Kits
17
Thrust Restraint Kits
18
Fig. 4 - Thrust Restraint Installation for Comefri and Industrial Fans Discharg- Ing into Panels
20
Fig. 5 - Thrust Restraint Installation for Plenum Fans with Wall Mounted Inlet
21
Fan Motors
22
Motor Wiring Parts
27
Fig. 6 - Assembly of Connectors
27
Fig. 7 - Motor Wire Connections
27
Adjustable Motor Bases
28
Fig. 8 - Adjustable Motor Base
30
Adjustable Motor Bases
30
Fig. 9 - Securing Fans and Motors
31
Fans and Motors, Securing
32
Isolators
33
Isolators
34
Fig. 10 - Typical, Isolator
34
Shell Components
35
Splice & Split Baserail Kits
36
Fig. 11 - Splice & Stacking Assemblies
38
Fig. 12 - Split Assembly
39
Fig. 13 - Baserail & Corner Assemblies
40
Wireway Access Plates
41
Filters
42
Filters
46
Oa Hood Moisture Eliminator Filters (by Damper Size)
47
Oa Hood Moisture Eliminator Filters (by Damper Size)
55
Fig. 14 - Typical Filters
56
Fig. 15 - Universal Frame Latch Selection
57
Fig. 16 - Visual Control Filter Clamps
58
Visual Control Filter Clamps for Hepa Filters
58
Fig. 17 - Exploded View of Light Assemblies
59
Lighting Parts
59
Fig. 18 - Lighting Schematic
60
Electrical Replacement Parts
60
Fig. 19 - Panel to Wiretrack
61
Wiring-Harnesses Light Assembly - Panel to Wire Track
61
Fig. 20 - Harness-Wiretrack
62
Wiring-Harnesses Light Assembly - Wire Track
62
Wiring-Harnesses Light Assembly - Tier to Tier
63
Switch/Receptacle
63
Fig. 21 - Transformer Panel Dimensions
64
Transformer Panel
64
Fig. 22 - Filter Gauge Diagrams
65
Fig. 23 - Typical Filter Gauge
65
Filter Gage Kits
65
Fig. 24 - C-Channel Trim For: Field Cut Openings
66
Field Modification to Add Doors
66
Fig. 25 - Door Safety Chain
66
Part Number Index
66
Part Number Index
67
Part Number Index
89
