38 YORK INTERNATIONAL
Compressor Port SC - 2
Compressor Port SC - 1
Load
Unload
Unload
Load
Load and Unload
Supply Oil
Pressure from
Manifold at SB-2
A
B
P
T
4 - Way Capacity Control
Solenoid Valve Sub-Plate
Compressor Port SC - 11
Service Isolation Valves

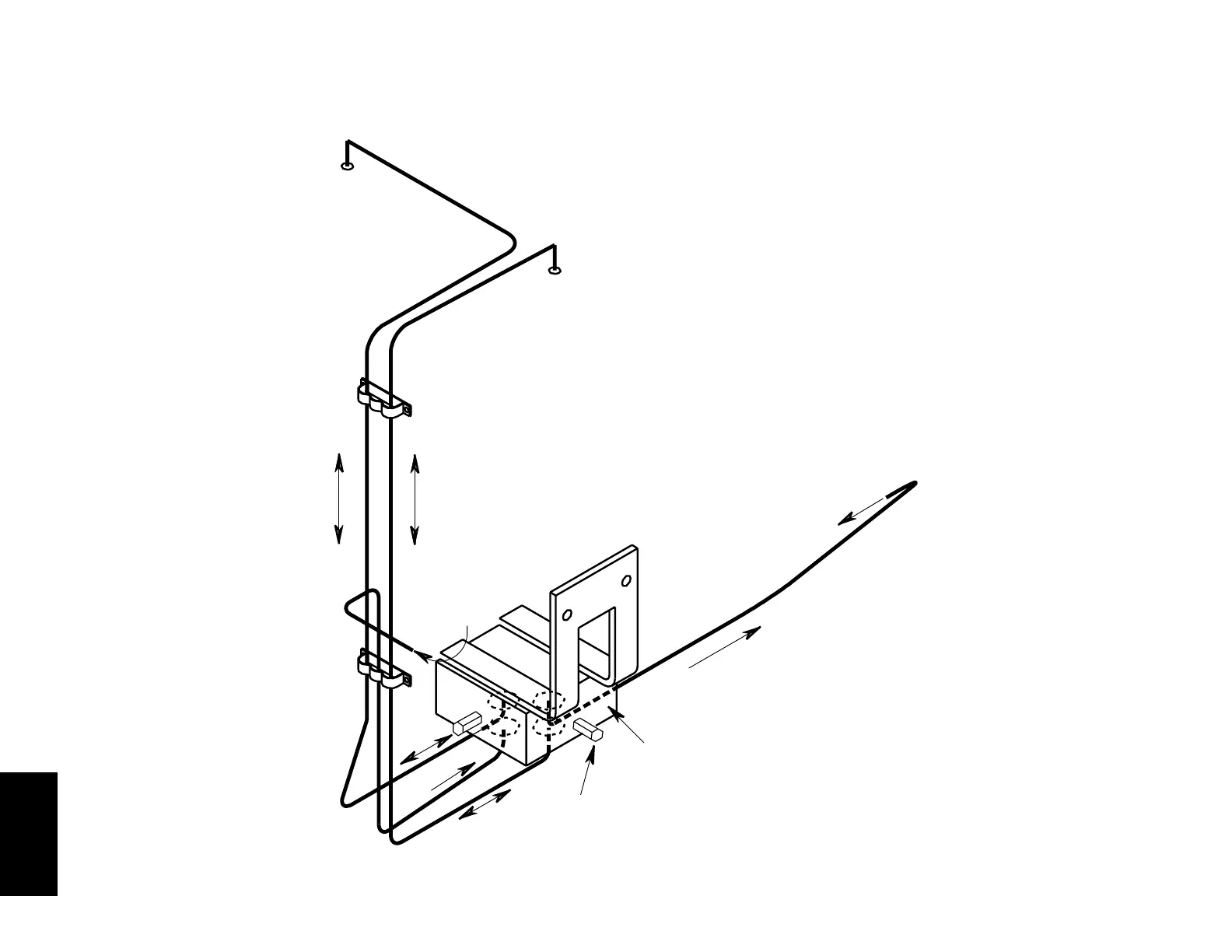

FIG. 23 – CAPACITY CONTROL PIPING SCHEMATIC
LD04300
