York N1VSD10A06 - ELECTRIC HEAT CONTROL WIRING; ELECTRIC HEAT COOLING WIRING DIAGRAMS

THERMOSTAT
R
Y
G
W
OUTDOOR
UNIT
R
C
Y
G
O
X
W/W1
W2
INDOOR UNIT
CONNECTOR BOARD
("HUMIDISTAT" JUMPER MUST BE REMOVED)
Y1
Y2
BK
DEHUMIDIFICATION CONTROL CONNECTION
FIELD
INSTALLED
JUMPER
THERMOSTAT
G
W1
X or L
C or B
R
WIRE NUT
RED
OUTDOOR UNIT
R
C
Y
G
O
X
W/W1
W2
("HUMIDISTAT" JUMPER MUST BE REMOVED)
Y1
Y2
BK
DEHUMIDIFICATION CONTROL CONNECTION
R
C
Y1
Y2
Y2 OUT
NO
Y1
Y2
W2
TWO STAGE COOLING
MUST BE USED
BRN
YEL
BLU
BLK
H*DS CONTROL BOARD
INDOOR UNIT
CONNECTOR BOARD

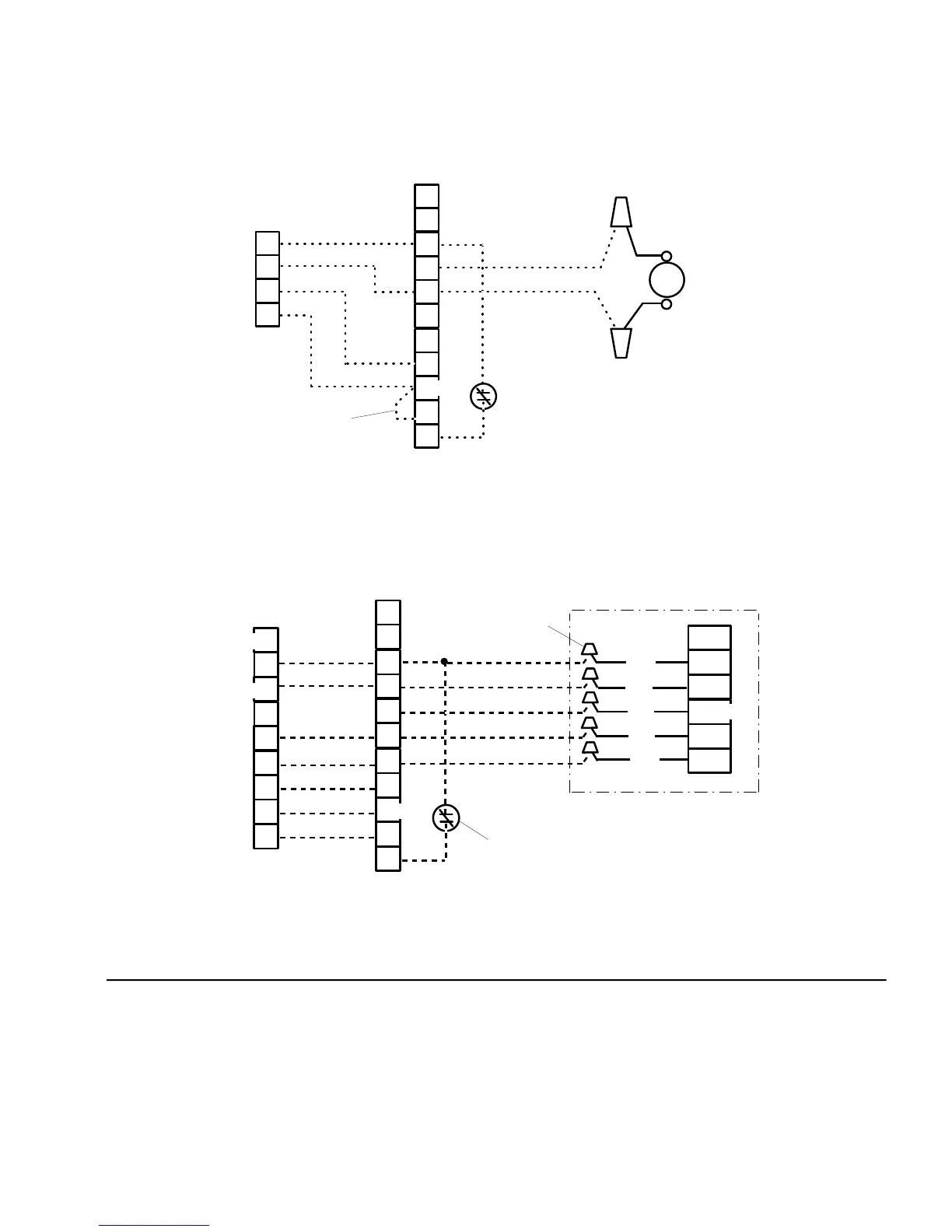

FIGURE 10 - Control Wiring / Electric Heat
- COOLING
COOLING WITH ELECTRIC HEAT MODELS H*DA and H*DH
COOLING WITH ELECTRIC HEAT MODEL H*DS
