York P*HM Technical Guide

Unitary Products Group 3
036-21475-003 Rev. A (0605)

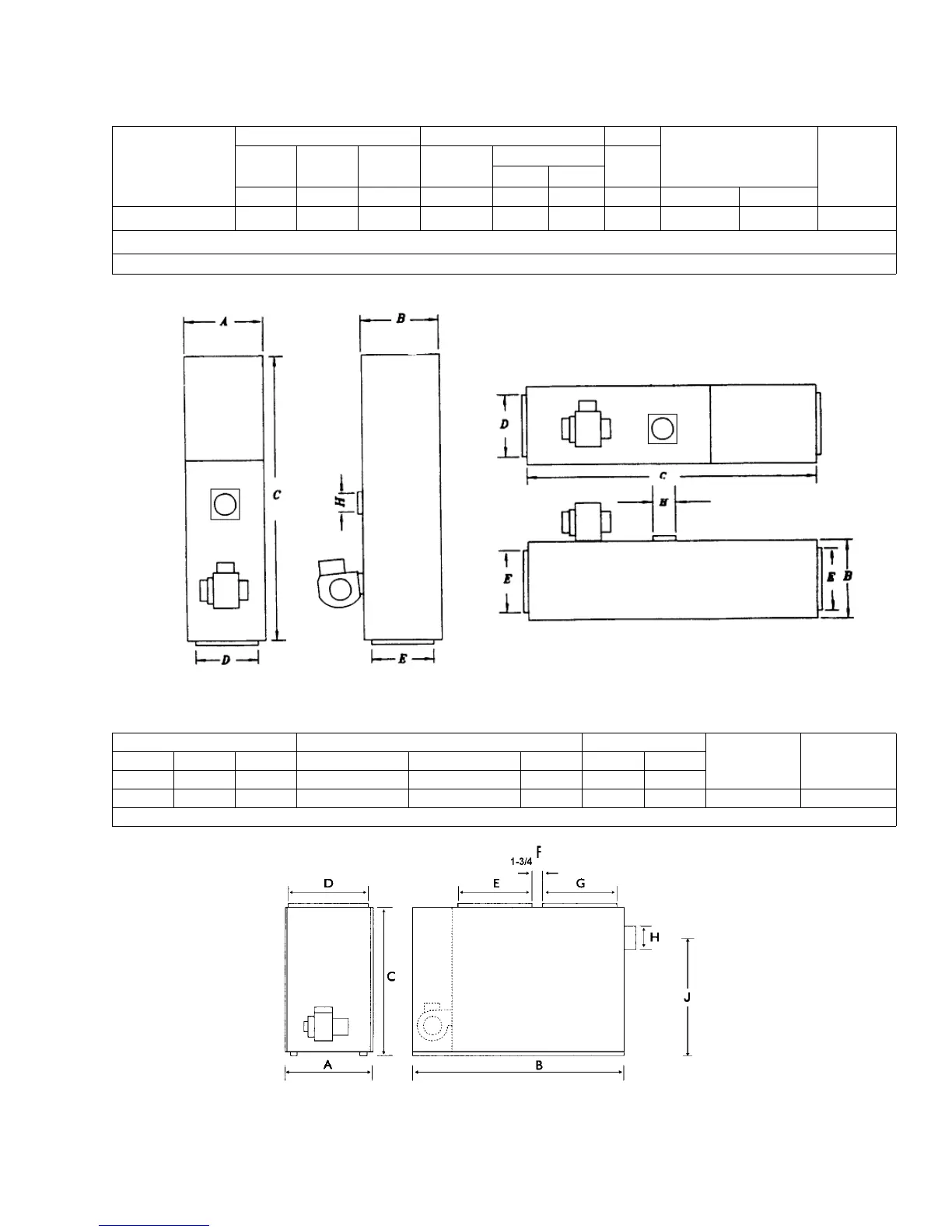

DIMENSIONS
TABLE 4: P4DHX12F08001
MODELS
CABINET PLENUM OPENINGS FLUE
FILTER
SHIPPING
WEIGHT
Width Depth Height Supply Air
Return Air
Dia.
Side Bottom
(A) (B) (C) (D x E) (K x L) (F x G) (H) Type Size
P4DHX12F08001 22
22-1/8
1
55-1/4 19 x 19 14 x 22 18 x 18 5 Permanent 16 x 25 x 1 265 lb.
1
Add 8-1/2 inches to allow for burner, (30-3/4 inches total).
Add 8-3/4 inches to allow for add-on vestibule cabinet, (31 inches total). All dimensions in inches.
TABLE 5: P2LBX16F14501
CABINET PLENUM OPENINGS FLUE
FILTER
SHIPPING
WEIGHT
Width Depth Height Supply Air Return Air Gap Dia. Height
(A) (B) (C) (D x E) (D x G) (F) (H) (J)
22 51-1/2 41 20-1/2 x 18-5/8 20-1/2 x 18-5/8 1-3/4 6 34-3/8 20 x 25 x 1 290 lb.
All dimensions in inches.
