York P*HM Technical Guide

4 Unitary Products Group
036-21475-003 Rev. A (0605)

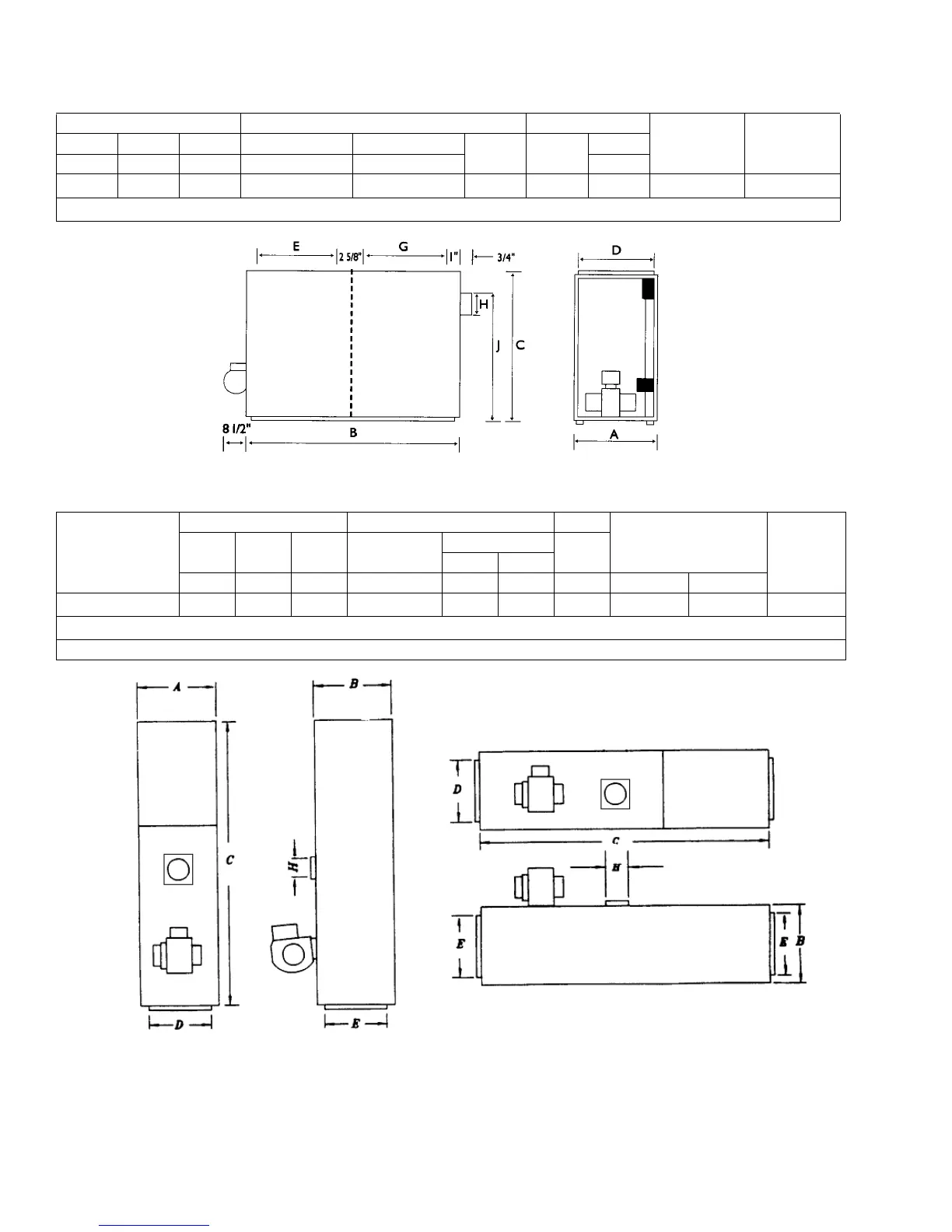

TABLE 6:
P4LBX20F19001
CABINET PLENUM OPENINGS FLUE
FILTER
(2)
SHIPPING
WEIGHT
Width Depth Height Supply Air Return Air
Gap
Dia.
(H)
Height
(A) (B) (C) (D x E) (D x G) (J)
26
46
1
56 24 x 22 24 x 22 2- 5/8 7 50-1/4 20 x 25 x 1 390 lb.
1
Add 8-½ inches to allow for oil burner, (54-½ inches total). All dimensions in inches.
TABLE 7: P4DHX16F12001
MODELS
CABINET PLENUM OPENINGS FLUE
FILTER
SHIPPING
WEIGHT
Width Depth Height Supply Air
Return Air
Dia.
Side Bottom
(A) (B) (C) (D x E) (K x L) (F x G) (H) Type Size
P4DHX16F12001 22-1/4
22-1/4
1
62 20-1/2 x 20-1/2 18 x 18 18 x 18 6 Permanent 20 x 20 x 1 292 lb.
1
Add 8-1/2 inches to allow for burner, (30-3/4 inches total).
Add 8-3/4 inches to allow for add-on vestibule cabinet, (31 inches total). All dimensions in inches.
