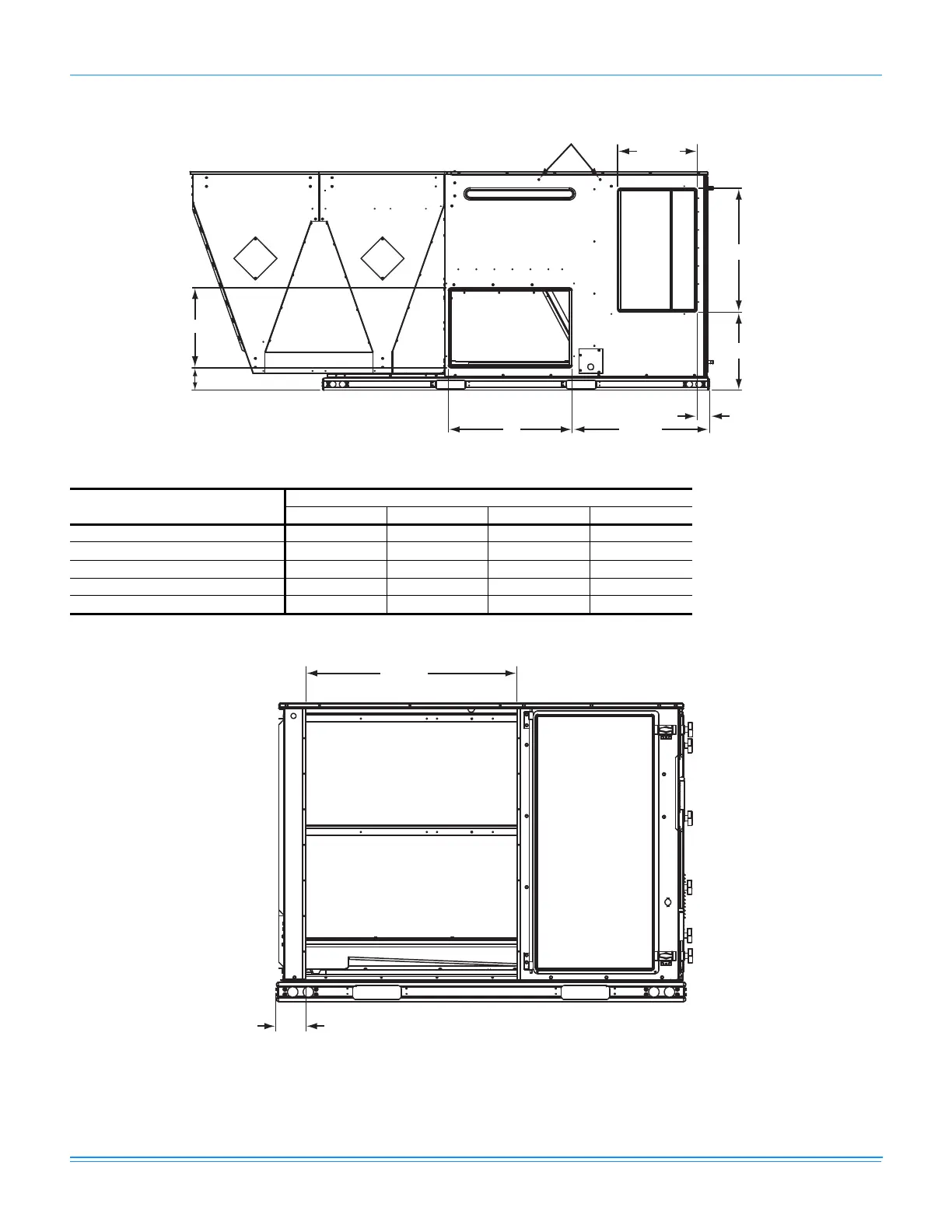

XP150 Unit Side Duct Openings
XP078-150 Unit Left Duct Opening
Side Duct Dimensions
Unit Model Number
Dimension (in.)
ABCD
078 28 1/4 18 1/16 28 1/4 18 1/4
090 28 1/4 18 1/16 28 1/4 18 1/4
102 28 1/4 18 1/16 28 1/4 18 1/4
120 28 1/4 18 1/16 28 1/4 18 1/4
150 28 1/4 18 1/16 28 1/4 18 1/4
Dot Plugs
2-7/8
5-5/32
D
C
31-5/8
18-1/4
B
A
4-5/16
30-3/8
