York Sunline ZE Series User Manual

5188235-YIM-E-0518
Johnson Controls Ducted Systems 11

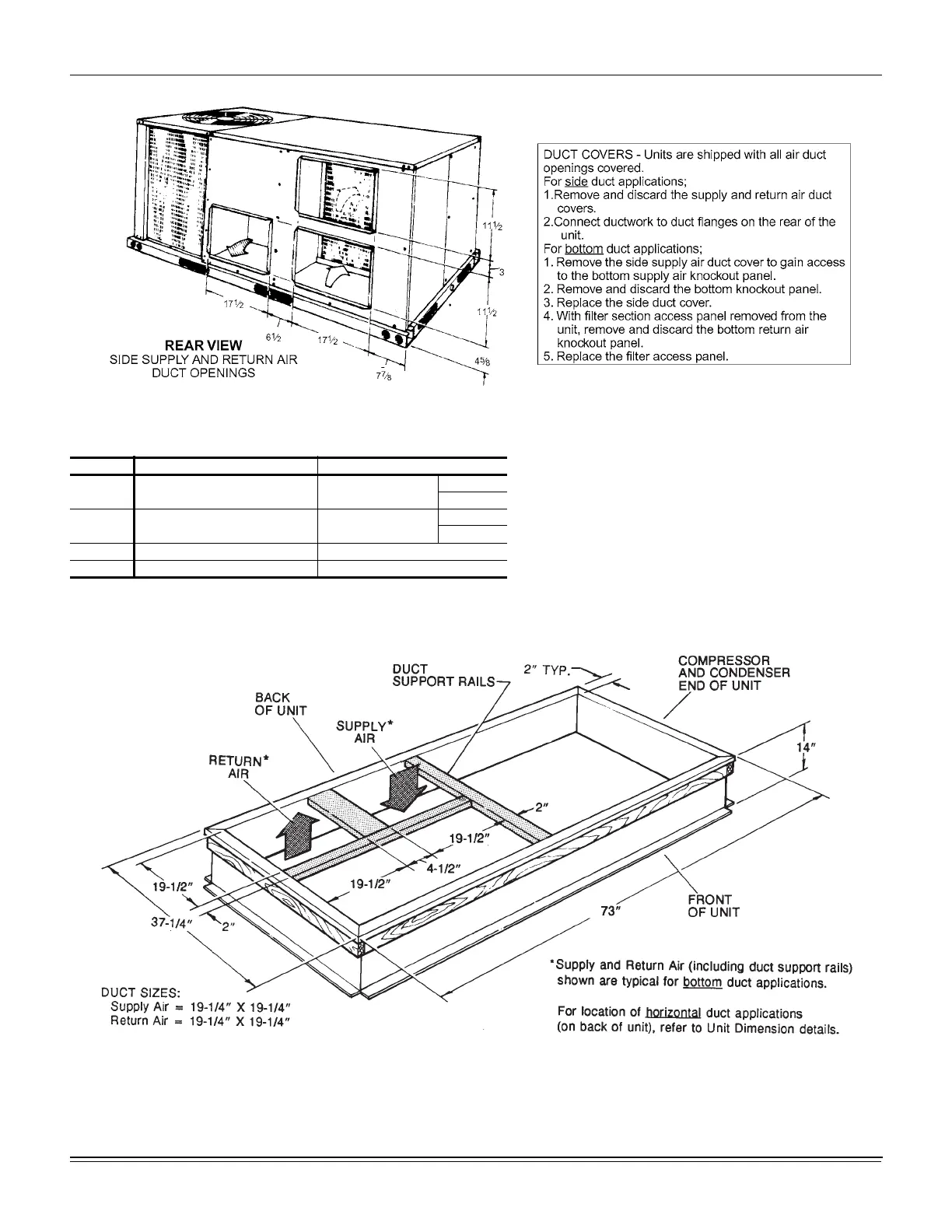

Figure 9: ZE036-060 Unit Side Duct Openings
Figure 10: ZE036-060 Roof Curb
Table 5: ZE036-060 Utilities Entry
Hole Opening Size (Dia.) Used For
A7/8” KO
1
1. Opening in the bottom to the unit can be located by the slice in the
insulation.
Control Wiring
2
2. Do not remove the 2” knockout ring.
Side
Bottom
B2” KO
1
Power Wiring
Side
Bottom
C 1-5/8” KO Gas Piping (Front)
D 1-1/2” KO Gas Piping (Bottom)
