York Sunline ZE Series User Manual

5188235-YIM-E-0518
8 Johnson Controls Ducted Systems

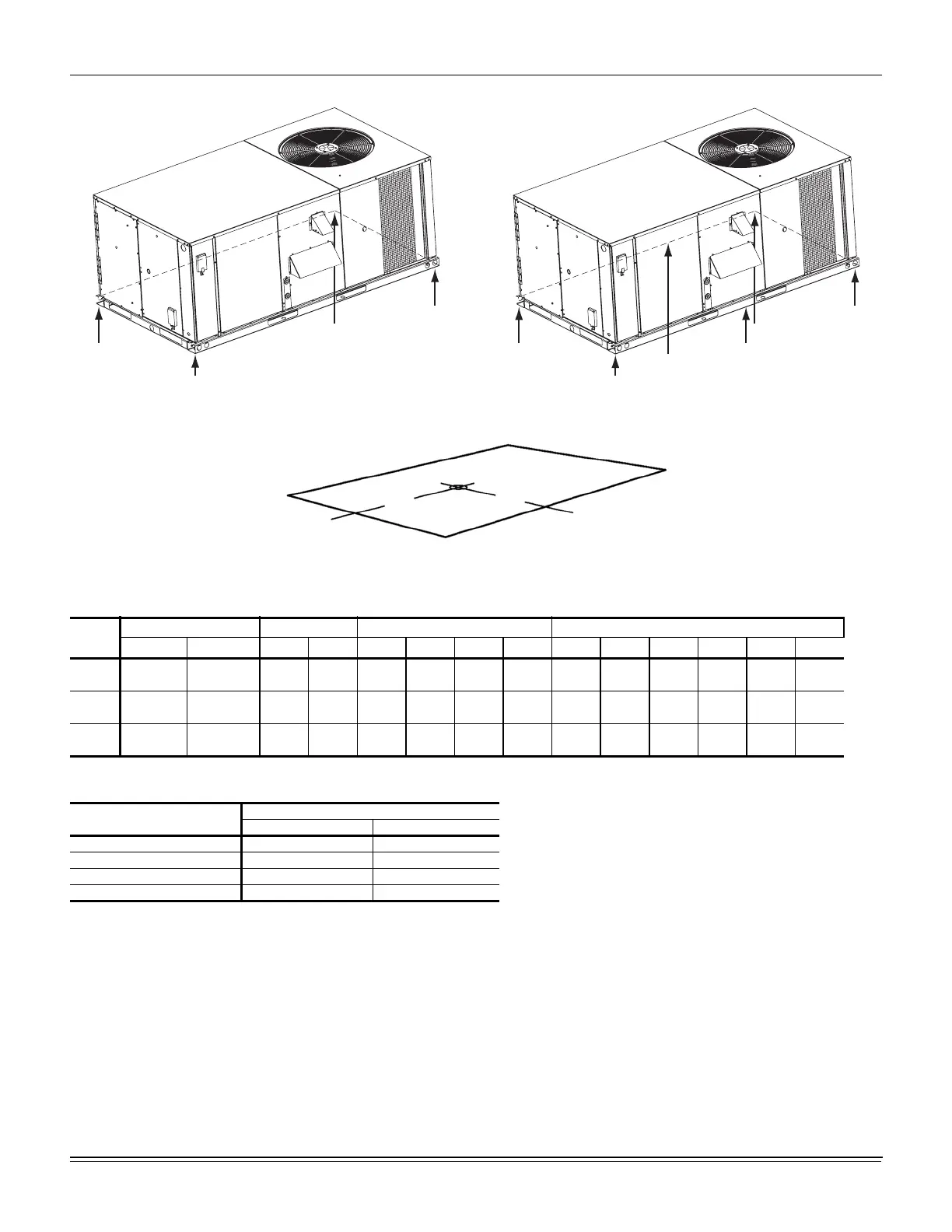

Figure 2: Unit 4 Point Load Weight Figure 3: Unit 6 Point Load Weight
Figure 4: Center of Gravity
A
D
B
Front
C
A
F
C
B
Front
D
E
X
Y
LEFT
FRONT
Table 2: ZE036-060
Size
(Tons)
Weight (lbs.)
Center of
4 point Load Location (lbs.) 6 point Load Location (lbs.)
Shipping Operating X Y A B C D A B C D E F
036
(3)
475 470 34.5 18.25 111 80 117 162 78 62 51 74 91 114
048
(4)
603 598 36 18.5 139 108 154 198 96 81 69 98 116 137
060
(5)
637 632 37.5 18.2 139 117 171 204 96 85 76 111 124 140
Table 3: ZE036-060 Unit Accessory Weights
Unit Accessory
Weight (lbs.)
Shipping Operating
Economizer 55 50
Power Exhaust 55 50
Electric Heat
1
28 28
Gas Heat
2
70 70
1. Weight given is for the maximum heater size available (30KW).
2. Weight given is for the maximum number of tube heat exchangers
available (5 tube).
