NOTE

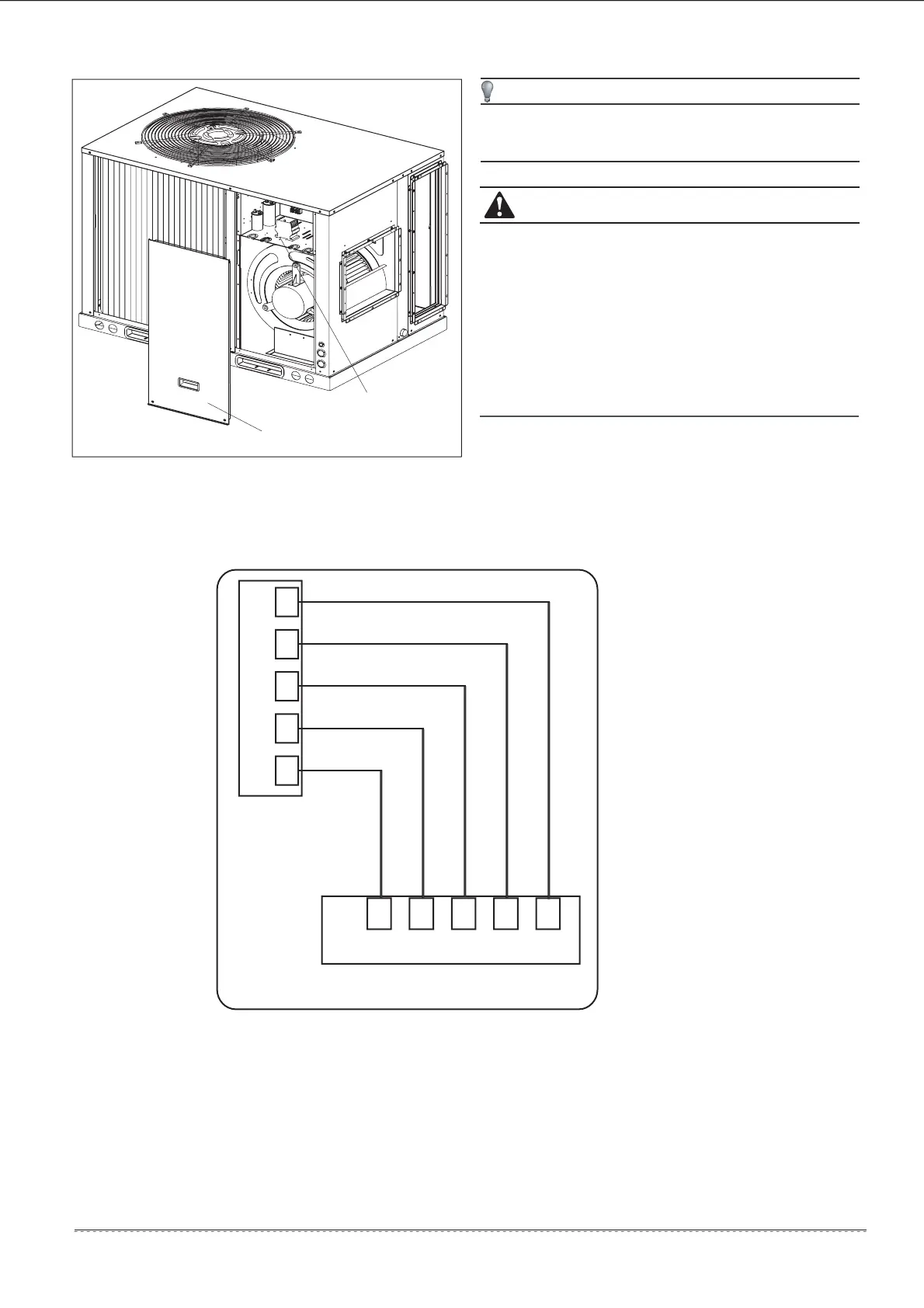

Knock down the control box access panel, first twist off
screws and then up it, the control box access panel is
getting out.
5
I&O manual
CONTROL BOX
CONTROL BOX ACCESS PANEL
Suggestion: Thermostat choose KJR-25B or Non-programmed eletrical thermostat series of Honeywell, such as
TH 5220D. Wiring please refer to the Owner’s Manual of the thermostat.
Figure 8
THERMOSTAT
R
YELLOW
BROWN
BLUE
ROOFTOP PACKAGE UNIT
RED
Control Wiring for H/P systems
CAUTION
If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person
in order to avoid a hazard.
An all-pole disconnection device which has at least 3mm
separation distance in all pole and a residual current
device(RCD)with the rating of above 10mA shall be
incorporated in the fixed wiring according to the national rule.
The appliance shall be installed in accordance with national
wiring regulations.
Figure 7
To Next Page
