York YP9C - Page 2

410821-YTG-B-1008
2 Johnson Controls Unitary Products
Annual Fuel Utilization Efficiency (AFUE) numbers are determined in accordance with DOE Test procedures.
Wire size and over current protection must comply with the National Electrical Code (NFPA-70-latest edition) and all local codes.
FRONT
LEFT SIDE
Combustion Air Inlet
Condensate Drain
(Downflow)
Thermostat
Wiring
28.5”
Gas Pipe
Entry
Electrical
Entry
Condensate
Drain
Thermostat
Wiring
RIGHT SIDE
Condensate Drain
(Downflow)
14”
1”
1.5”
23”
Combustion Air Inlet
Gas Pipe
Entry
Electrical
Entry
Condensate
Drain
Optional Return Air
Cutout (Either side)
30.25”
A
33”
C
SUPPLY END
.56”
.56”
20”
B
3”
23.8”
.56”
Combustion
Air Inlet
RETURN END
B
24.25”
2” Vent
Connection
Outlet
2” Vent
Connection
Outlet
2” Vent
Connection
Outlet

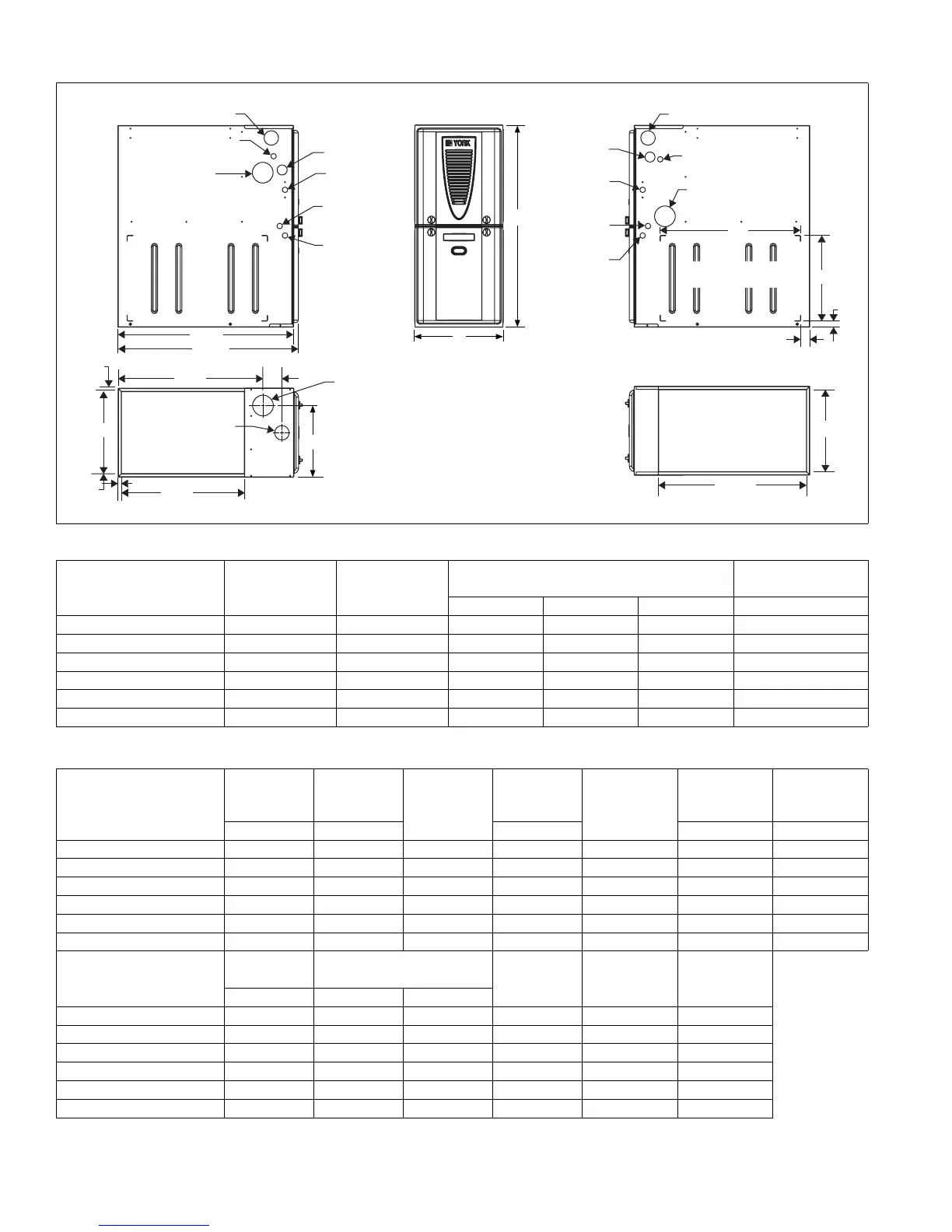

Cabinet and Duct Dimensions
Models
Nominal
CFM (m
3
/min)
Cabinet
Size
Cabinet Dimensions (Inches)
Approximate
Operating Weights
A B C Lbs
YP9C060B12MP11 1200 B 17 1/2 16 3/8 13 1/4 122
YP9C080B12MP11 1200 B 17 1/2 16 3/8 14 3/4 126
YP9C080C16MP11 1600 C 21 19 7/8 16 1/2 136
YP9C100C16MP11 1600 C 21 19 7/8 18 1/4 142
YP9C100C20MP11 2000 C 21 19 7/8 18 1/4 145
YP9C120D20MP11 2000 D 24 1/2 23 3/8 21 3/4 156
Ratings & Physical / Electrical Data
Models
Input
Max/Min
Output
Max/Min
AFUE
%
Nominal
Airflow
Total
Unit
Amps
Air Temp.
Rise Max
Input
Air Temp.
Rise Min
Input
MBH MBH CFM °F °F
YP9C060B12MP11 60/21 58/20 97.5 1200 7.0 40-70 20-50
YP9C080B12MP11 80/28 77/27 97.5 1200 7.5 40-70 20-50
YP9C080C16MP11 80/28 78/27 97.7 1600 10.0 40-70 20-50
YP9C100C16MP11 100/35 97/34 97.7 1600 10.0 40-70 20-50
YP9C100C20MP11 100/35 97/34 97.7 2000 12.0 45-75 25-55
YP9C120D20MP11 120/42 116/40 98.0 2000 12.0 45-75 25-55
Models
Max. Outlet
Air Temp
Blower
Blower
Wheel
Size
Max
Over-Current
Protect
Min. wire Size
(awg) @ 75 ft
one way
°F HP Amps
YP9C060B12MP11 170 1/2 4.8 11 x 8 15 14
YP9C080B12MP11 175 1/2 4.8 11 x 8 15 14
YP9C080C16MP11 175 3/4 7.5 11 x 10 15 14
YP9C100C16MP11 175 3/4 7.5 11 x 10 15 14
YP9C100C20MP11 180 1 14.5 11 x 11 20 12
YP9C120D20MP11 180 1 14.5 11 x 11 20 12
