1183875-YIM-A-1014
12 Johnson Controls Unitary Products
TOP VIEW

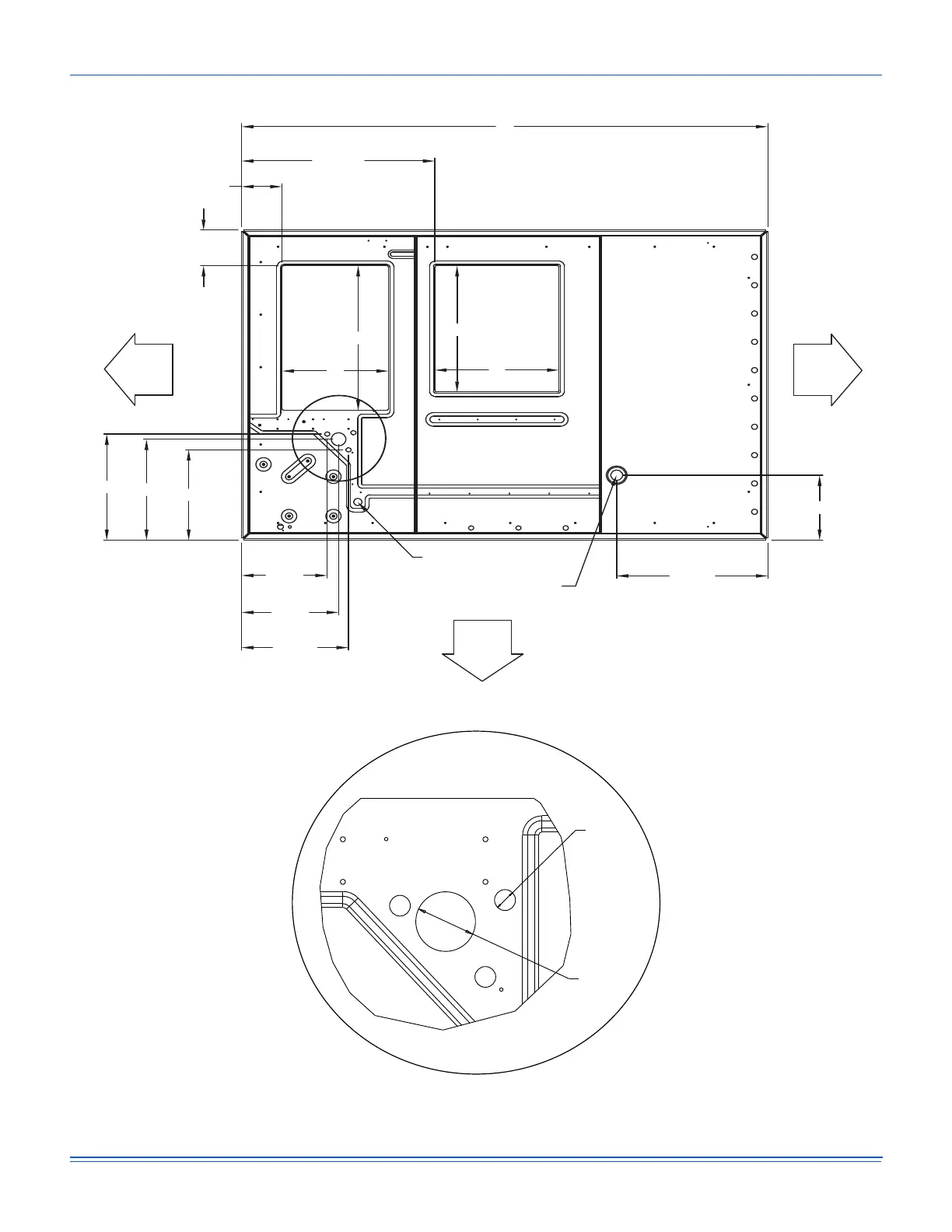

Figure 10: ZJ078-150 Unit Bottom Duct Openings
Bottom condensate drain
Bottom gas
supply entry
FRONT
RETURN
AIR
SUPPLY
AIR
RIGHT
LEFT
20 1/8
19 1/8
17 1/8
6 13/16
6 13/16
32 11/16
14 1/2
16 3/8
18 1/16
25 9/16
12 5/16
27 1/2
24
21
18
89
Ø 2.469
3X Ø 0.875
Bottom power, control
and convenience outlet
wiring entry
