York ZJ Series - Side Duct Dimensions; ZJ078-150 Unit Electrical Entry; ZJ078-120 Unit Side Duct Openings

1183875-YIM-A-1014
14 Johnson Controls Unitary Products

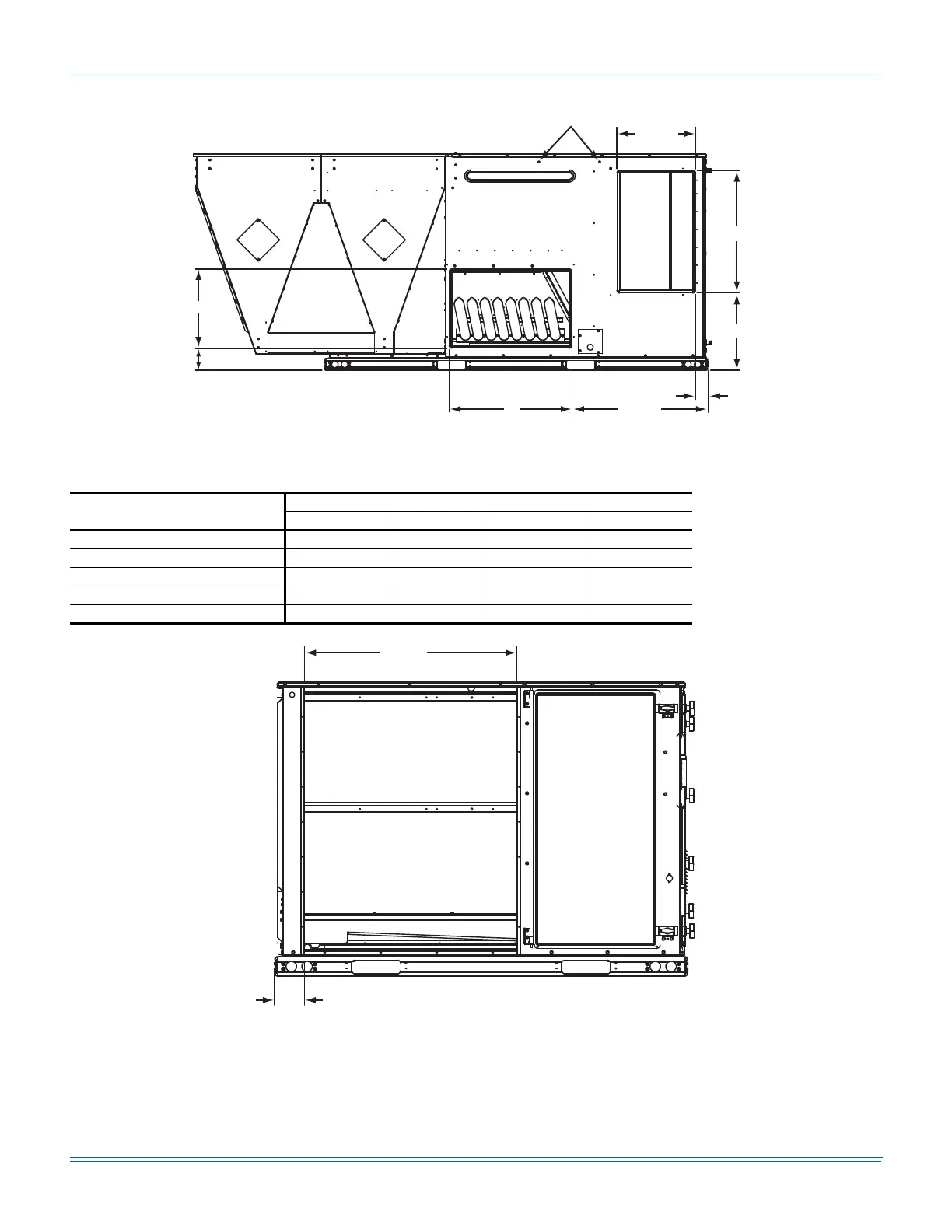

Figure 13: ZJ150 Unit Side Duct Openings
Figure 14: ZJ078-150 Unit Left Duct Opening
Dot Plugs
2-7/8
5-5/32
D
C
31-5/8
18-1/4
B
A
Table 6: Side Duct Dimensions
Unit Model Number
Dimension (in.)
ABCD
ZJ078 28 1/4 18 1/16 28 1/4 18 1/4
ZJ090 28 1/4 18 1/16 28 1/4 18 1/4
ZJ102 28 1/4 18 1/16 28 1/4 18 1/4
ZJ120 28 1/4 18 1/16 28 1/4 18 1/4
ZJ150 28 1/4 18 1/16 28 1/4 18 1/4
4-5/16
30-3/8
