York ZWT06 - Side Duct Dimensions; ZWT12 Unit Side Duct Openings; ZWT06 Thru T12 Unit Left Duct Opening

5565606-TIM-B-1018
14 Johnson Controls Ducted Systems

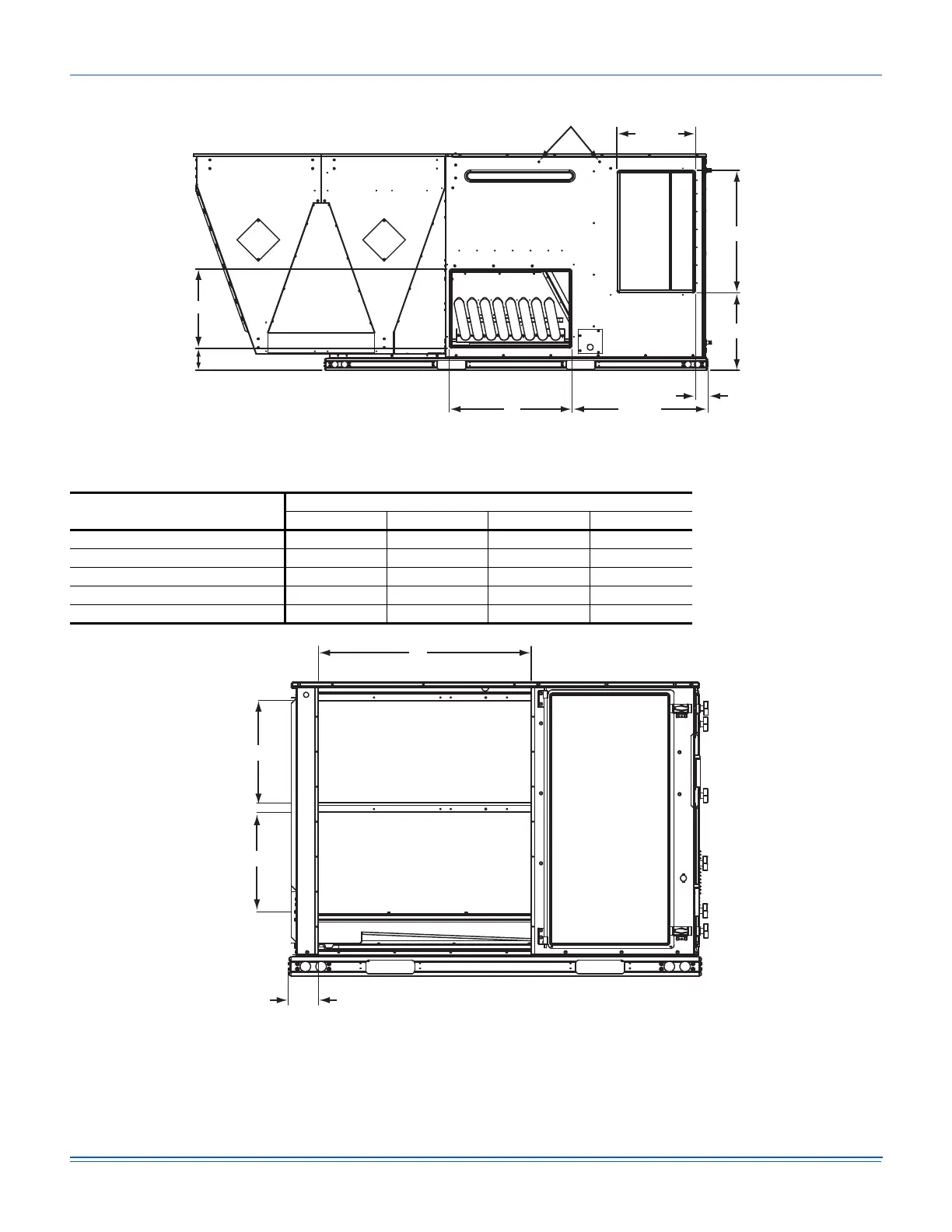

Figure 13: ZWT12 Unit Side Duct Openings
Figure 14: ZWT06 thru T12 Unit Left Duct Opening
Dot Plugs
2-7/8
5-5/32
D
C
31-5/8
18-1/4
B
A
Table 6: Side Duct Dimensions
Unit Model Number
Dimension (in.)
ABCD
ZWT06 28 1/4 18 1/16 28 1/4 18 1/4
ZWT07 28 1/4 18 1/16 28 1/4 18 1/4
ZWT08 28 1/4 18 1/16 28 1/4 18 1/4
ZWT10 28 1/4 18 1/16 28 1/4 18 1/4
ZWT12 28 1/4 18 1/16 28 1/4 18 1/4
4-5/16
A
C
B
