York ZWT06 - Weights and Dimensions; Unit 4 Point Load Weight; Unit 6 Point Load Weight; Center of Gravity

5565606-TIM-B-1018
8 Johnson Controls Ducted Systems
Units may be moved or lifted with a forklift. Slotted openings in
the base rails are provided for this purpose.
LENGTH OF FORKS MUST BE A MINIMUM OF 60 INCHES.

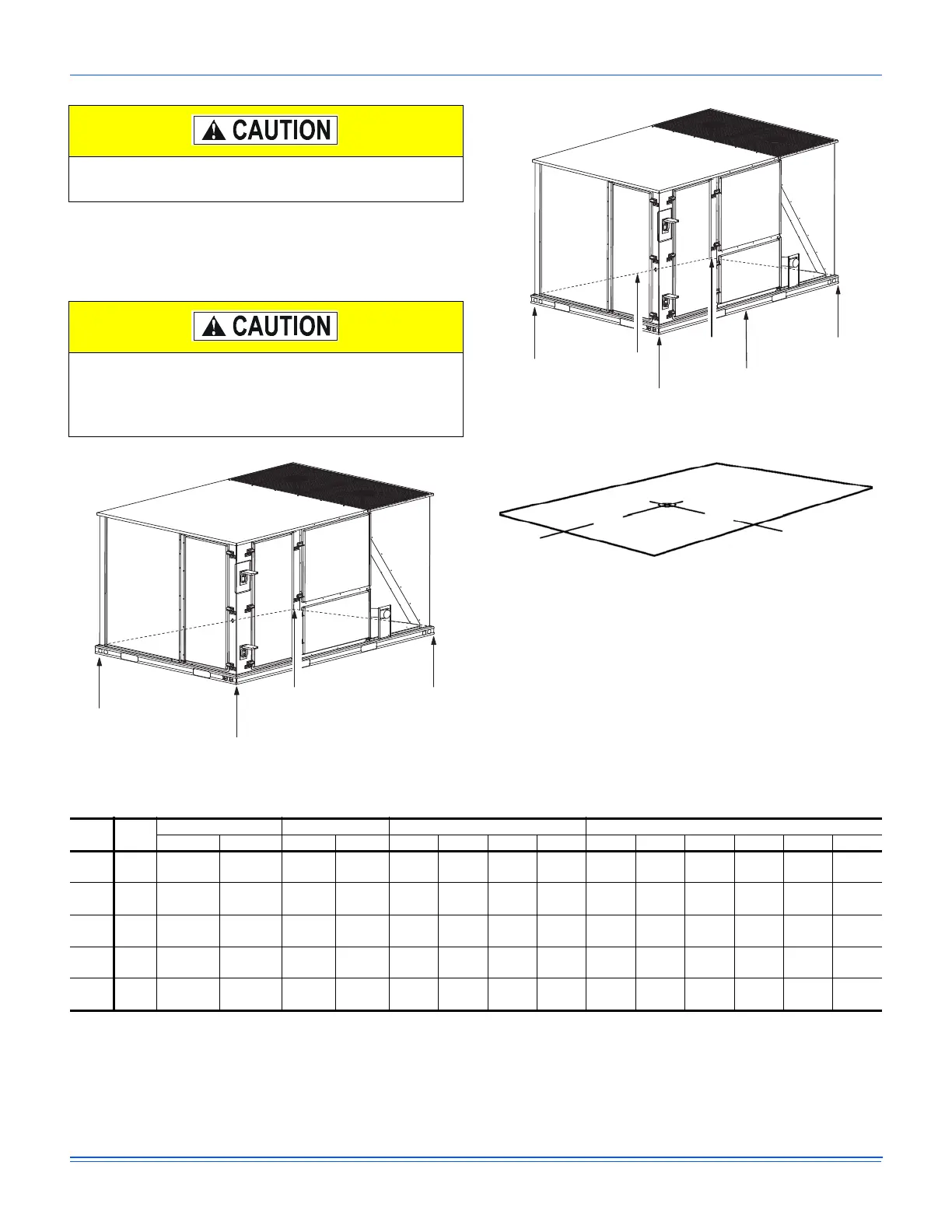

Figure 5: Unit 4 Point Load Weight
Figure 6: Unit 6 Point Load Weight
Figure 7: Center of Gravity
Before lifting, make sure the unit weight is distributed
equally on the rigging cables so it will lift evenly.
All panels must be secured in place when the unit is
lifted.
The condenser coils should be protected from rigging
cable damage with plywood or other suitable material.
D
A
CB
LEFT
FRONT
D
A
C
B
E
F
LEFT
FRONT
X
Y
LEFT
FRONT
Table 2: Weights and Dimensions
Size
(Tons)
Model
Weight (lbs.) Center of Gravity 4 Point Load Location (lbs.) 6 Point Load Location (lbs.)
ShippingOperatingX Y ABCDABCDEF
T06
(6.5)
ZW 1035 1030 39 25 245 191 260 333 170 144 122 167 195 232
T07
(7.5)
ZW 1055 1050 39 25 250 195 265 340 174 146 125 170 199 236
T08
(8.5)
ZW 1065 1060 38 24 247 184 268 360 173 141 117 171 206 253
T10
(10)
ZW 1075 1070 39 24 245 191 278 357 170 143 122 178 209 248
T12
(12.5)
ZW 1285 1280 48 24 240 281 410 350 156 173 192 280 252 227
