York ZWT06 - Left;End Duct Dimensions; ZWT06 Thru T12 Roof Curb; ZWT06 Thru T12 Transition Roof Curb

5565606-TIM-B-1018
Johnson Controls Ducted Systems 15

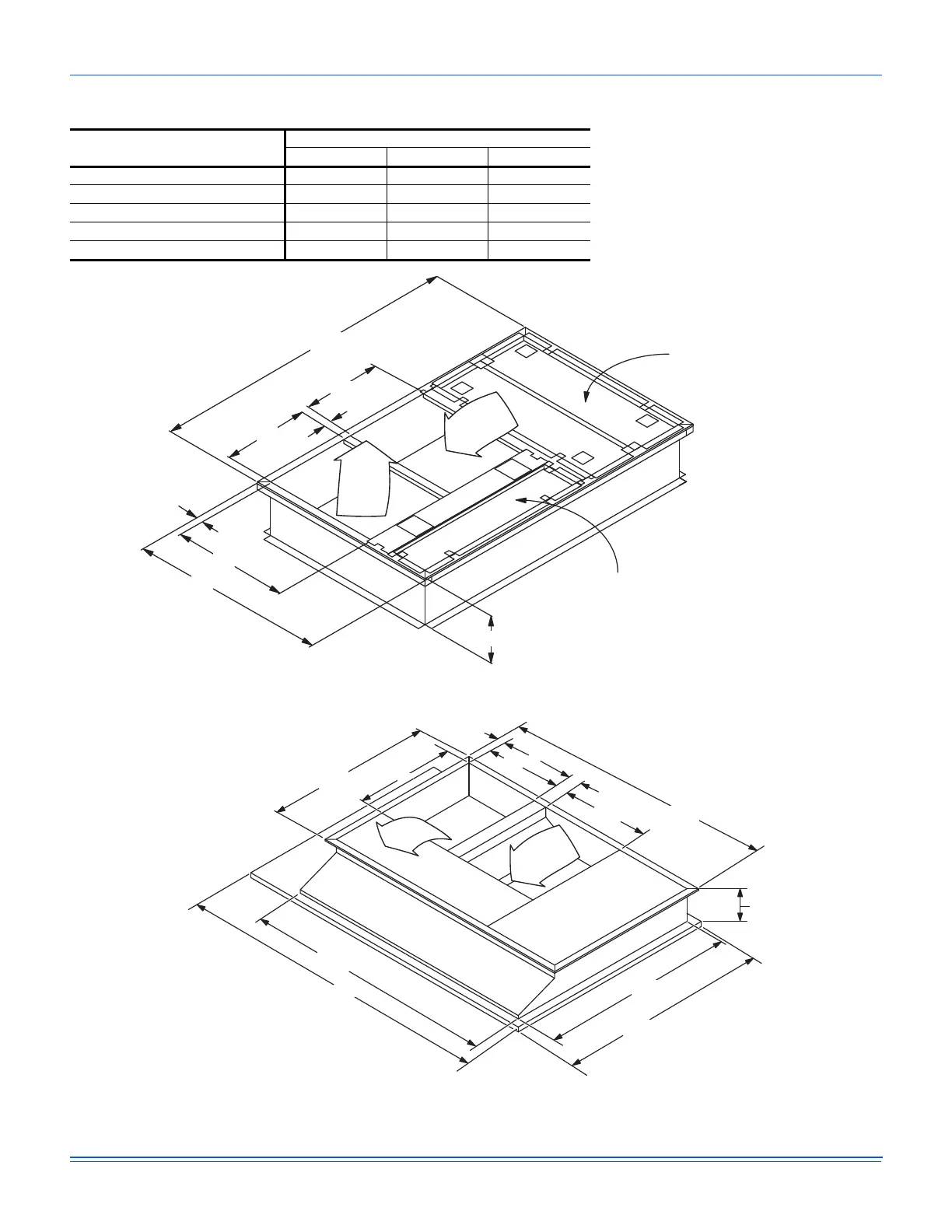

Figure 15: ZWT06 thru T12 Roof Curb
Figure 16: ZWT06 thru T12 Transition Roof Curb
Table 7: Left/End Duct Dimensions
Unit Model Number
Dimension (in.)
ABC
ZWT06 30.358 22.580 22.330
ZWT07 30.358 22.580 22.330
ZWT08 30.358 22.580 22.330
ZWT10 30.358 22.580 22.330
ZWT12 30.358 22.580 22.330
8 or 14
50-1/2
30
20
20
80-5/8
6
2TYP.
INSULATED DECK UNDER
COMPRESSOR SECTION
INSULATED DECK UNDER
CONDENSER SECTION
FRONT
RIGHT
SUPPLY
RETURN
76-5/8
94
50-1/2
30-1/2
64-1/4
59-1/4
10
23
4
26
80-5/8
2TYP
FRONT
RIGHT
SUPPLY
RETURN
