5.1.2 Multi-temperature version

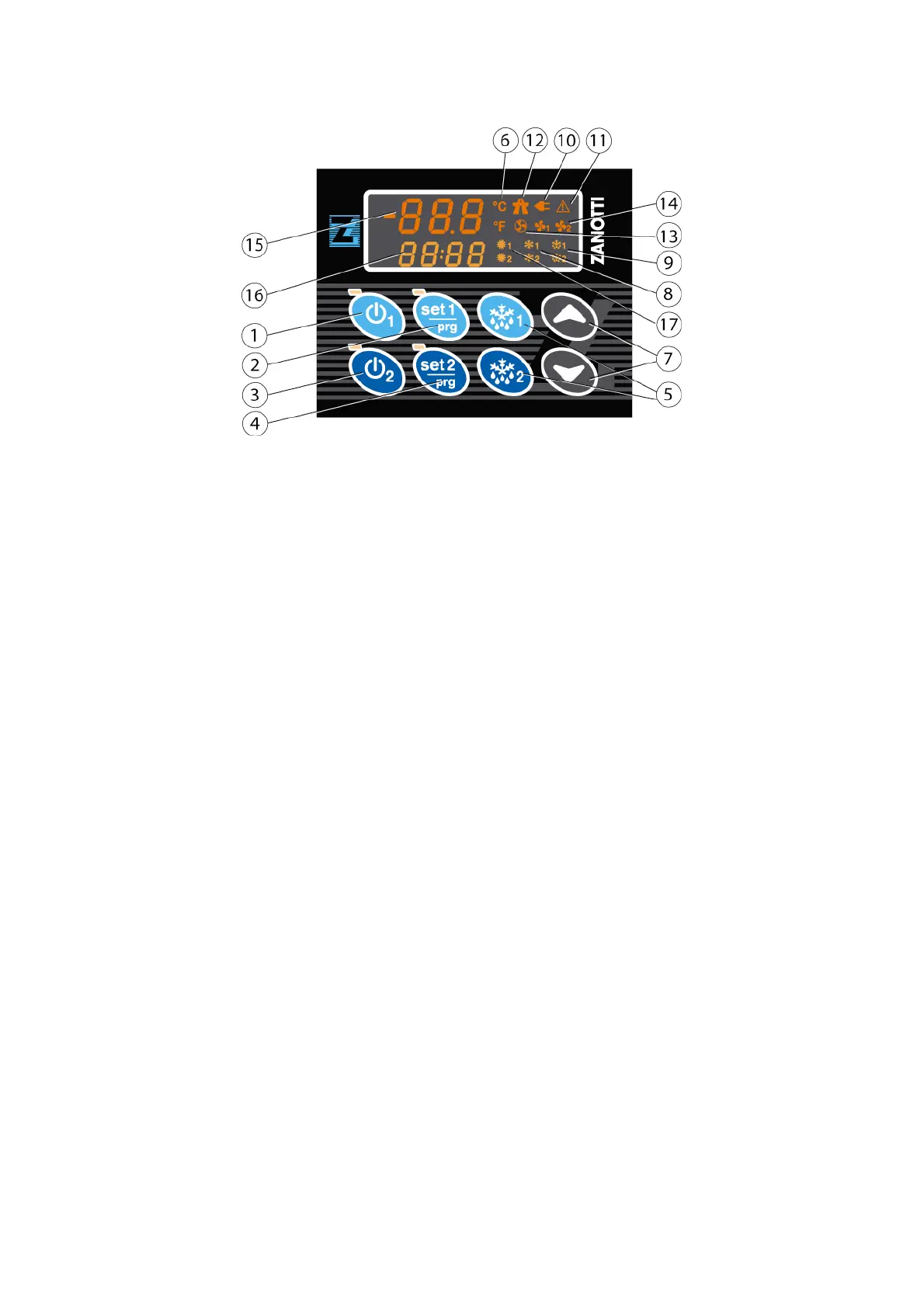

1. ON/OFF BUTTON 1: to switch on/off the evaporator of compartment 1 (press 3 seconds). The red LED
lights up when the unit is on.
2. SET BUTTON 1: to set the work set point of the evaporator of compartment 1. When the LED is on, setting
is enabled.
3. ON/OFF BUTTON 2: to switch on/off the evaporator of compartment 2 (press 3 seconds). The red LED
lights up when the unit is on.
4. SET BUTTON 2: to set the work set point of the evaporator of compartment 2. When the LED is on, setting
is enabled.
5. MANUAL DEFROST BUTTON: press for 5 seconds to start a defrost cycle. When the LED is on, defrost is
in course. Button n. 1 is for the evaporator of compartment 1, button n. 2 for the evaporator of compartment
2.
6. LED °C or °F: they show the unit of temperature measurement adopted for the displayed temperature.
7. UP/DOWN BUTTONS: set parameters and set point.
8. COLD MODE LED: it shows that the unit is carrying out the cold cycle. N. 1 refers to the evaporator of
compartment 1, n. 2 to the evaporator of compartment 2.
9. DEFROST LED: it shows that the unit is carrying out the defrost cycle. N. 1 refers to the evaporator of
compartment 1, n. 2 to the evaporator of compartment 2.
10. STAND-BY LED: it shows that the unit is operating in stand-by mode.
11. ALARM LED: it activates any time an alarm occurs.
12. ROAD LED: it shows that the unit is operating in road mode.
13. CONDENSER FAN LED: it shows that the condenser fan is operating.
14. EVAPORATOR FAN LED: it shows that the evaporator fan is operating. N. 1 refers to the evaporator of
compartment 1, n. 2 refers to the evaporator of compartment 2.
15. DISPLAY: it shows the cold room temperature.
16. DISPLAY: it displays the alarms.
17. HOT MODE LED: it shows that the unit is carrying out the hot cycle. N. 1 refers to the evaporator of
compartment 1, n. 2 to the evaporator of compartment 2.
