7 DRAWING

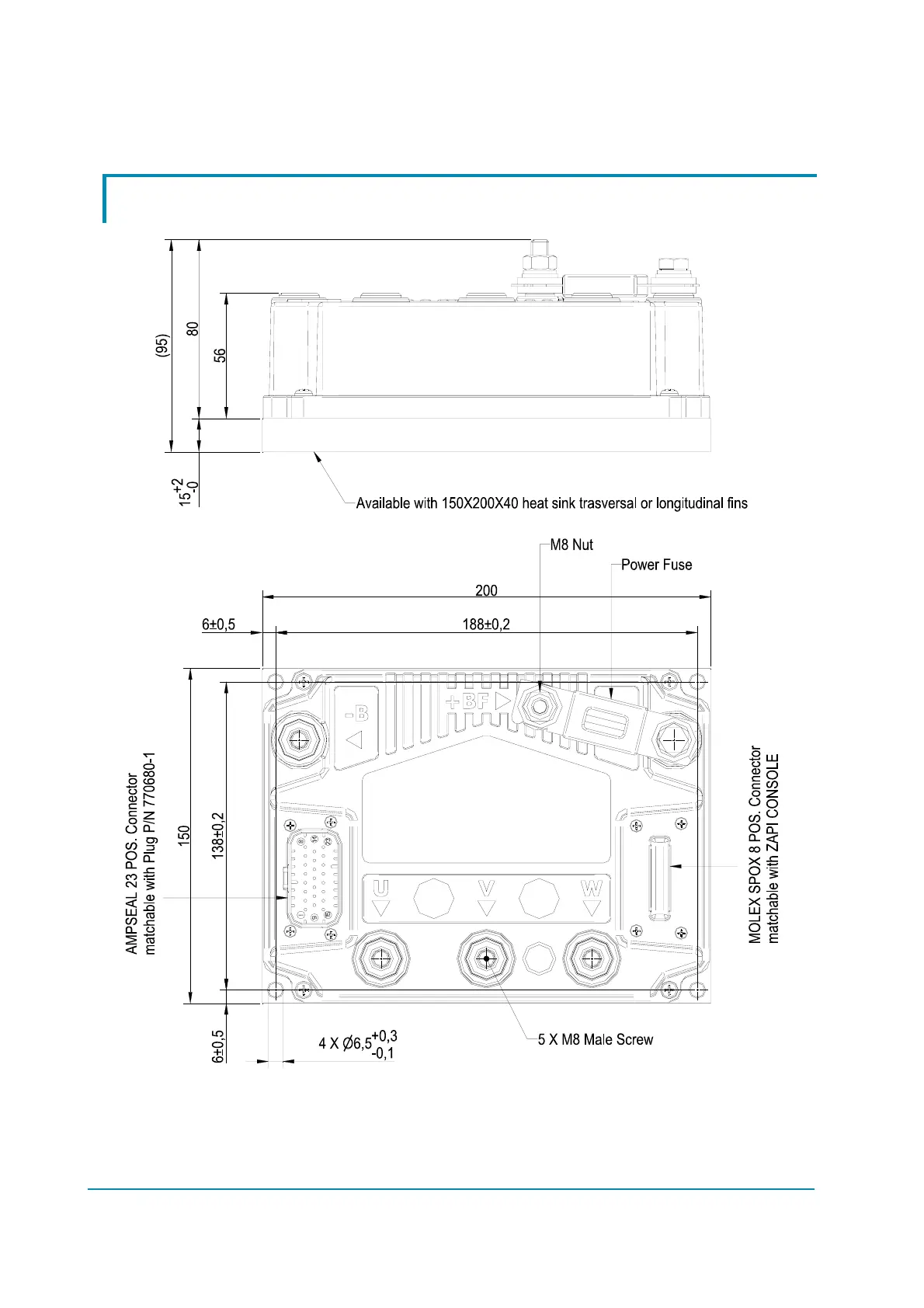

7.1 Mechanical drawing ACE2
Existing others versions (with or without power fuse):
- With heat sink 200x40x150mm (longitudinal / transversal)
