Page 32

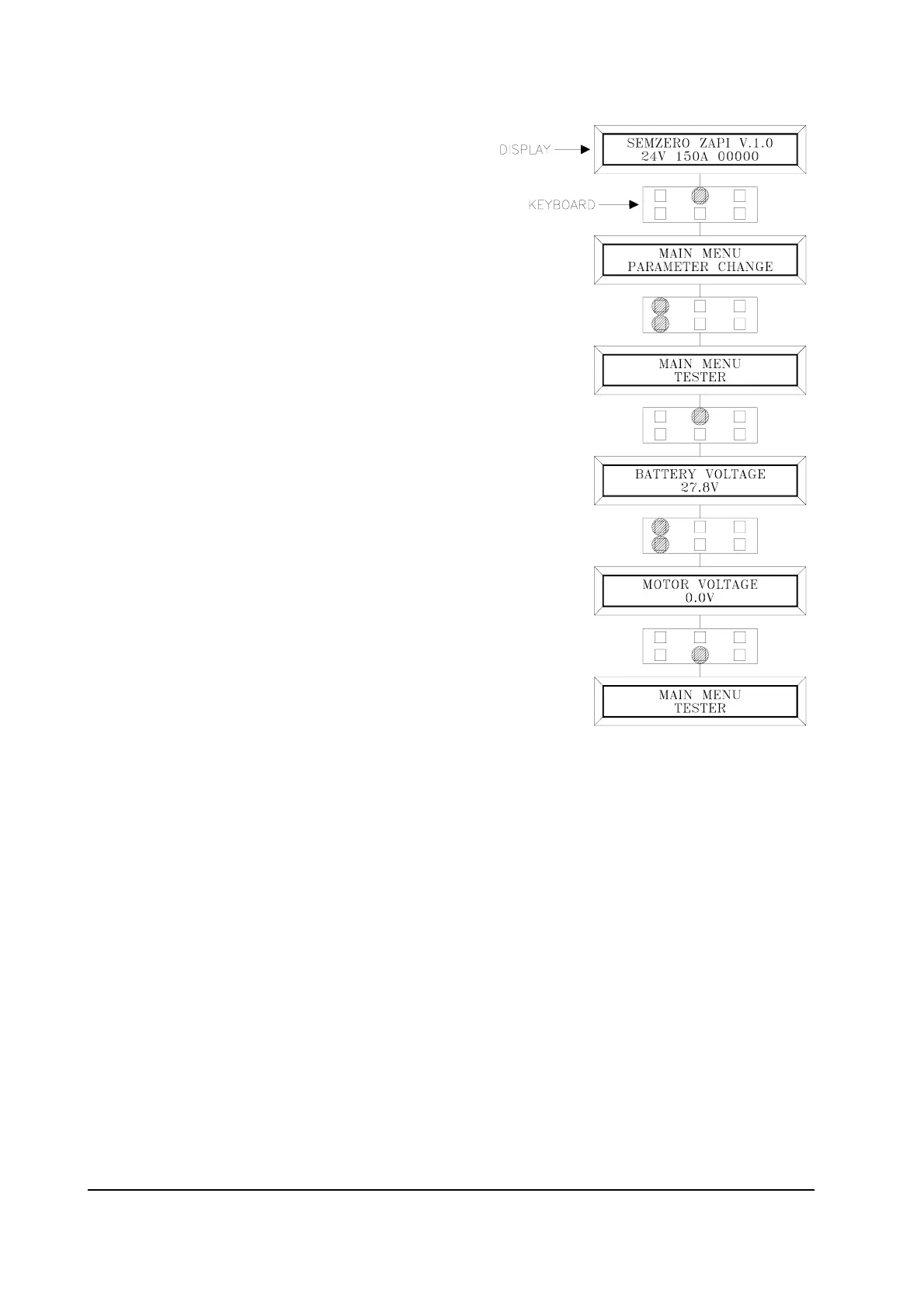

Flow Chart showing how to use the TESTER function of the Digital Console.
1) Opening Zapi Display.
2) Press ENTER to go into the General menu.
3) The Display will show :
4) Press either ROLL UP or ROLL DOWN button until
TESTER MENU appear on the display.
5) The Display shows :
6) Press ENTER to go into the TESTER function.
7) The first variable to be tested is shown on the Display.
8) Press either ROLL UP or ROLL DOWN buttons until your
desired variable for measurement appears on the Display.
9) Next variable is shown.
10) When you have finished, Press OUT.
11) The Display shows :
12) Press either ROLL UP or ROLL DOWN button to show other MENU or press OUT
to finish.
Remember it is not possible to make any changes using TESTER. All you can do is
measure as if you were using a pre-connected multimeter.
