Page 23

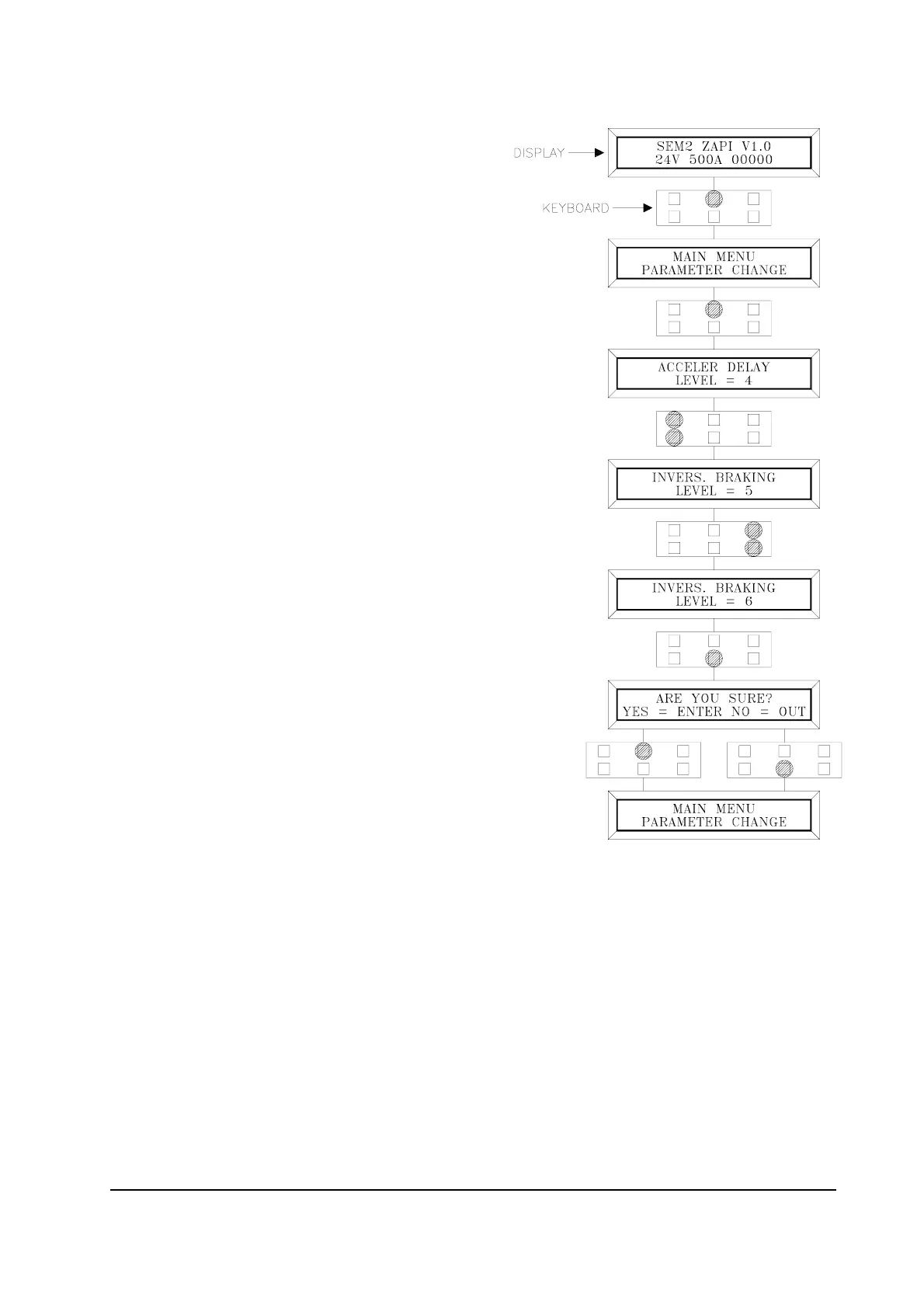

Flow Chart showing how to make Programme changes using Digital Console fitted with
Eprom CK ULTRA.
1) Opening Zapi Display.
2) Press ENTER to go into the General Menu.
3) The Display will show :
4) Press ENTER to go into the Parameter Change facility.
5) The Display will show the first Parameter.
6) Press either ROLL UP and ROLL DOWN to display
the next parameter.
7) The names of the Parameters appear on the Display.
8) When the desired Parameter appears, the Display will
show a Level Number that will be between 0 and 9.
press either PARAM (Top Right) or SET (Bottom Right)
buttons to change the Level value.
9) The Display will show the New Level.
10) When you are satisfied with the results of the changes
you have made, Press OUT.
11) The Display asks “ ARE YOU SURE ?
12) Press ENTER to accept the changes, or Press OUT
if you do not wish to accept the changes and wish
to make further modifications to the parameters.
13) The Display will show :
To Next Page
