zarges Z200 - Assembly Drawings

16
Operating and assembly instructions
Z200 / Z300
Scaffold comb.
Module
A
Working height
approx. 2.90 m
Scaffold height
1.75 m
Platform
height
0.90 m
Weight
23.1 kg
Order no.
48400
Scaffold comb.
Module
A+B
Working height
approx. 4.85 m
Scaffold height
3.95 m
Platform
height
2.85 m
Weight
83.1 kg
Order no.
48540
Scaffold comb.
Module
A+B+C
Working height
approx. 6.85 m
Scaffold height
5.95 m
Platform
height
4.85m
Weight
111.2 kg
Order no.
48541
Scaffold comb.
Module
A+B+C+D
Working height
approx. 8.85 m
Scaffold height
7.95 m
Platform
height
6.85 m
Weight
152.2 kg
Order no.
48542

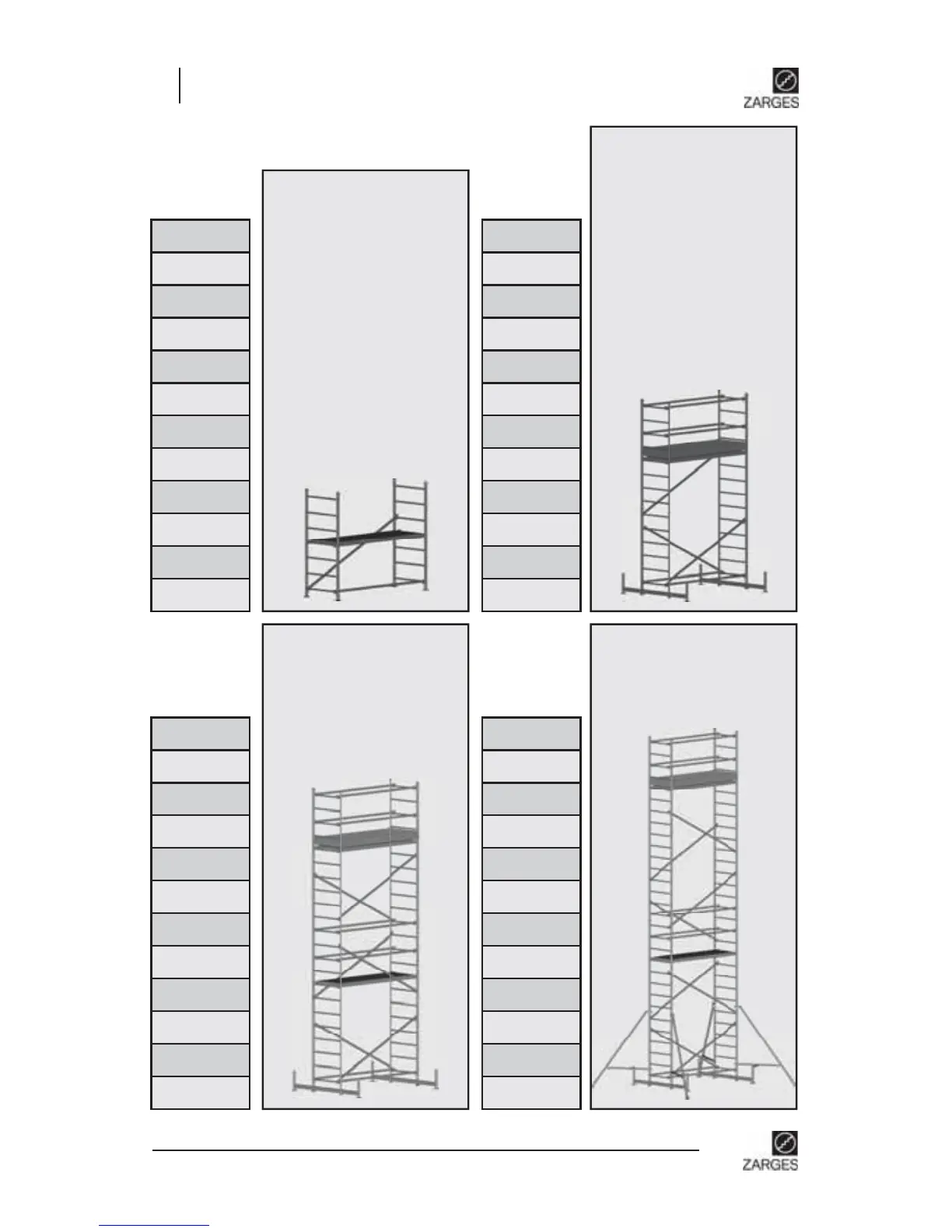

2.10. Assembly drawings
Z200 Mobile scaffold tower, 0.7 m × 1.5 m
