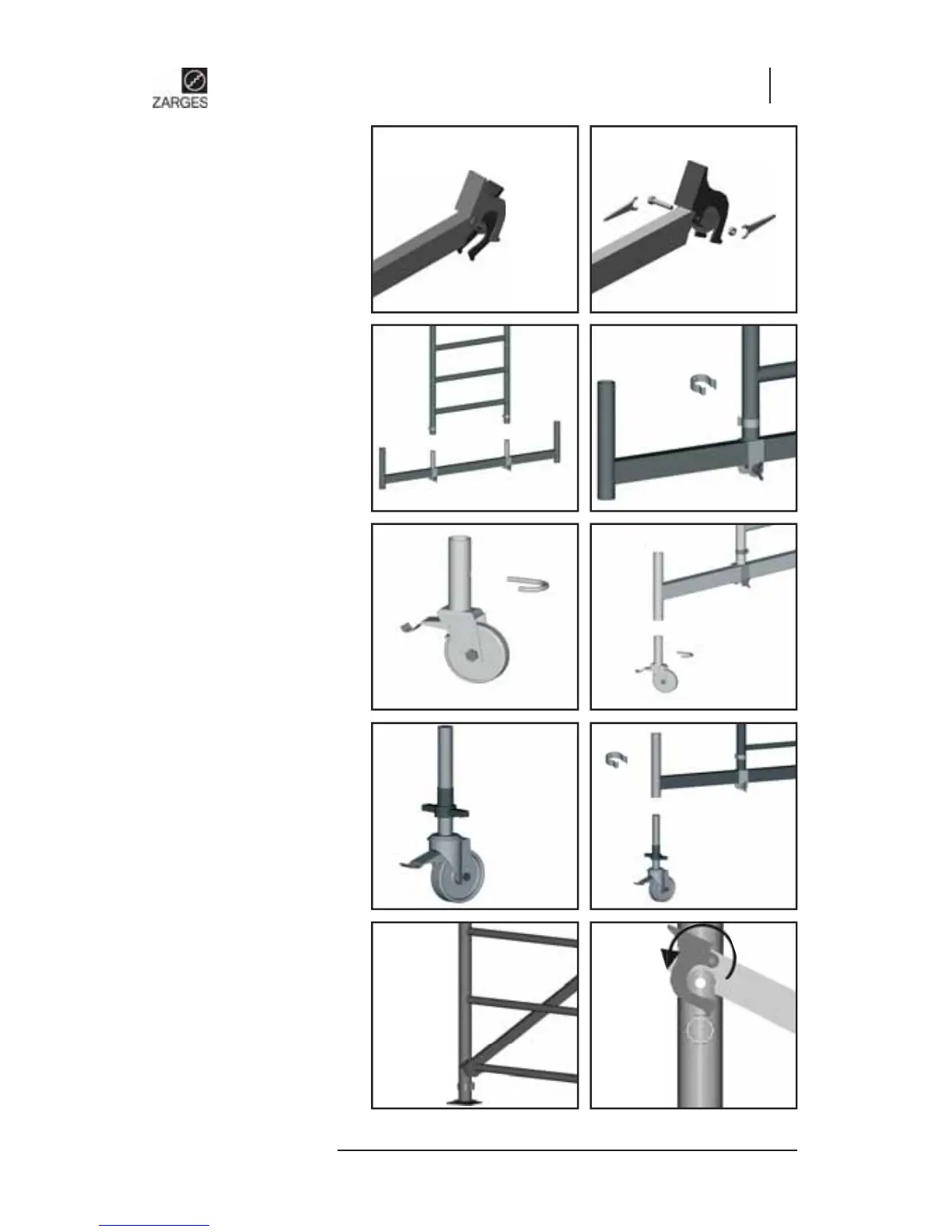

Operating and assembly instructions

Z200 / Z300

2. Assembly of slip-in frame

on chassis beams

Fig. 3. Fig. 4.

3. Assembly of swivel castors,

with pivots on the chassis

beams

(base plates are included in the

basic package)

Fig. 5. Fig. 6.

4. Assembly of swivel castors,

with shafts on the chassis

beams

(base plates are included in the

basic package)

Fig. 7. Fig. 8.

5. Assembly of diagonal

braces

The ﬁ rst diagonals always be-

gin on the 1st rung from the

bottom!!! After that, the diago-

nals run zig-zag up the long

side of the scaffold.

Fig. 9. Fig. 10.

2.5. General design speciﬁ ca-

tions

1. Preparatory work for

assembly

Fig. 1. Fig. 2.
