Zebra 105SL Quick Reference Guide

Load Ribbon
10
14023L-002 Rev. A 105SL Quick Reference Guide 6/20/07

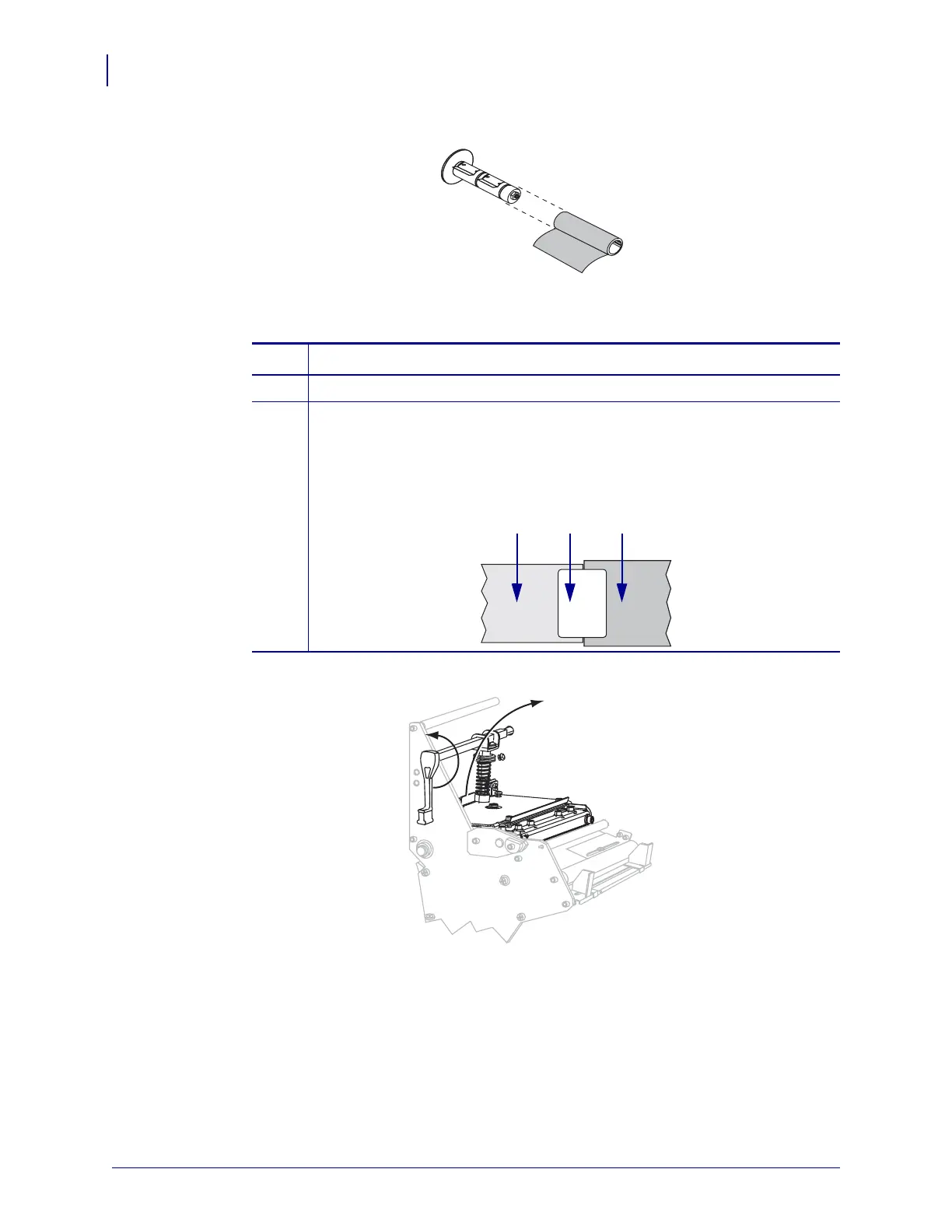

3. Place the roll of ribbon on the ribbon supply spindle and push it all the way back.
4. A ribbon leader makes ribbon loading and unloading easier. Does your roll of ribbon have
paper or something else attached to the end to serve as a ribbon leader?
5. Open the printhead assembly by rotating the printhead-open lever counter-clockwise.
If… Then…
Yes Continue with the next step.
No
a. Tear off a strip of media (labels and liner) about 6–12 in. (150–305 mm)
long from the roll.
b. Peel a label from the media strip.
c. Use this label (1) to attach the end of the ribbon (2) to the media strip (3).
The media strip acts as a leader.
23 1

Zebra 105SL Specifications

General

Print technology	Direct thermal
Display	LCD
Product color	Gray
Network ready	Yes
Dimensions (WxDxH)	283 x 495 x 394 mm
Standard interfaces	Parallel, Serial
Internal memory	6 MB
Maximum label width	115 mm
Maximum label length	0.991 m
Power requirements	90-264 VAC, 48-63 Hz

Weight and Dimensions

Depth	495 mm
Width	283 mm
Height	394 mm
Weight	29000 g
