Load Ribbon
6/20/07 105SL Quick Reference Guide 14023L-002 Rev. A

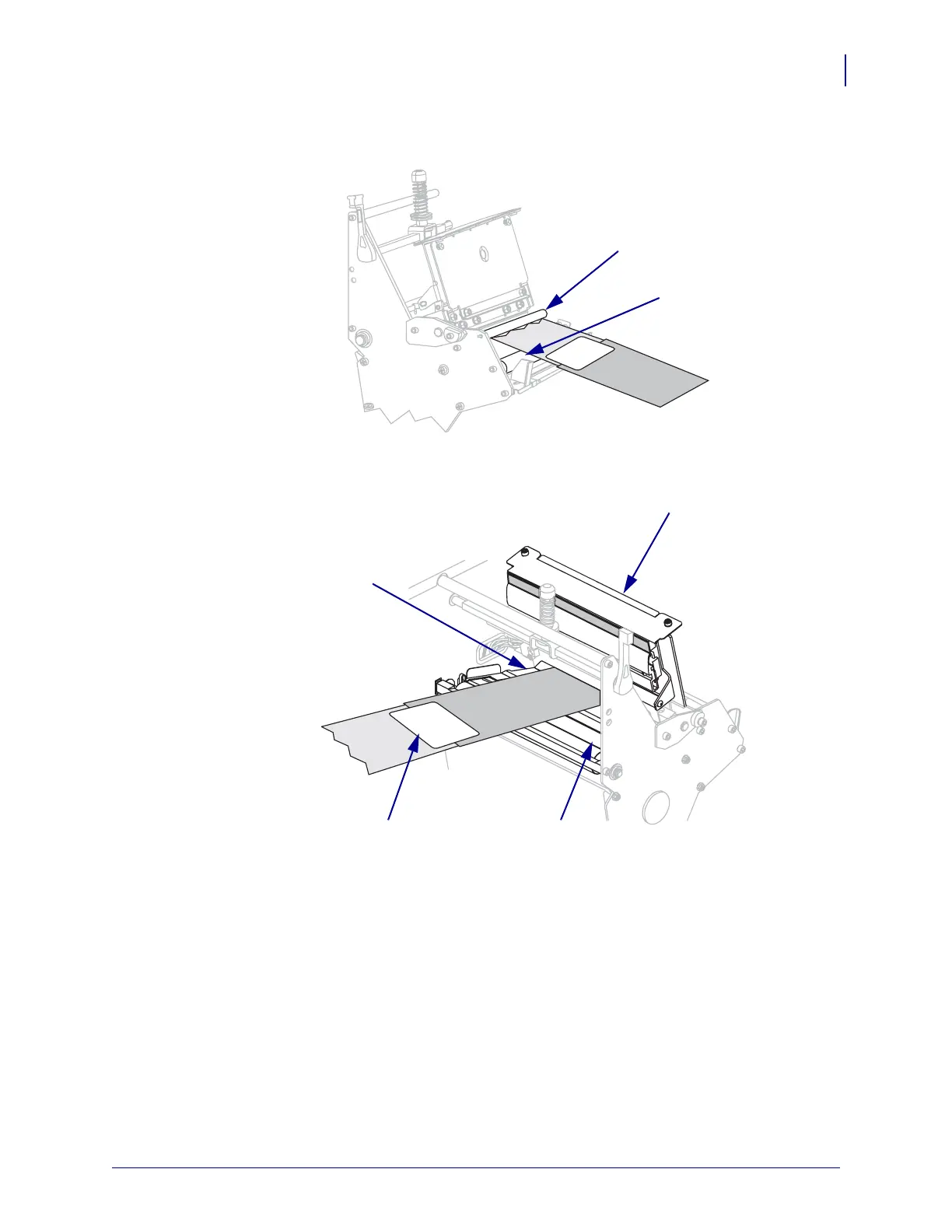

6. Thread the ribbon leader and attached ribbon over the lower roller (1) and under the upper
roller (
2).
7. Push the ribbon leader forward until it passes under the printhead assembly (1), over the
snap plate (2), over the platen roller (3), and out the front of the printer (4).
2
1
1
3
2
4
