Zebra 105SL Quick Reference Guide

Load Ribbon
12
14023L-002 Rev. A 105SL Quick Reference Guide 6/20/07

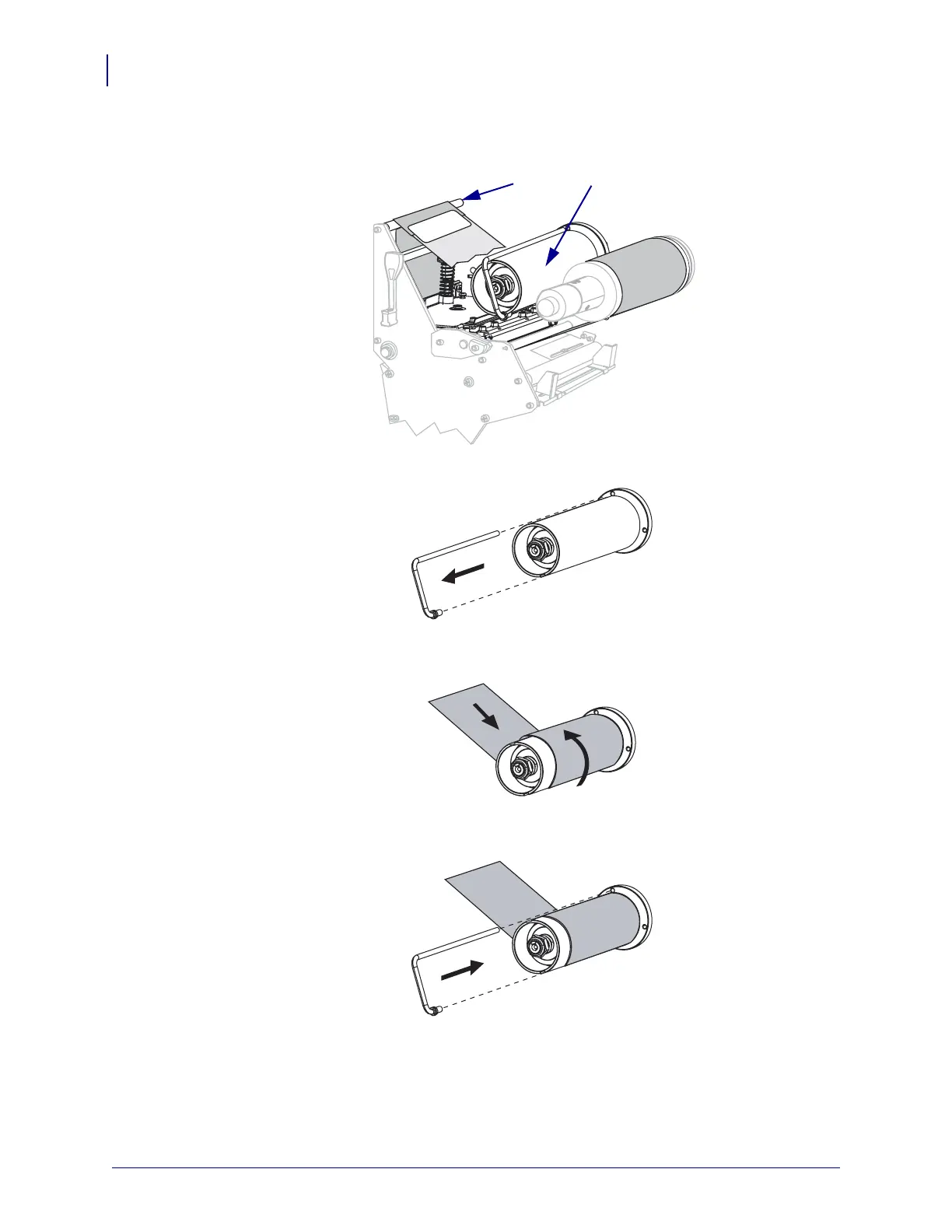

8. Loop the ribbon leader over the upper ribbon roller (1) and toward the ribbon take-up
spindle (
2).
9. Remove the hook from the ribbon take-up spindle.
10. Wind the ribbon leader and attached ribbon counterclockwise around the ribbon take-up
spindle.
11. Reinstall the hook. The short end of the hook fits into the notch on the ribbon take-up
spindle. The long end of the hook fits into the groove on the opposite side of the notch.
21

Zebra 105SL Specifications

General

Print technology	Direct thermal
Display	LCD
Product color	Gray
Network ready	Yes
Dimensions (WxDxH)	283 x 495 x 394 mm
Standard interfaces	Parallel, Serial
Internal memory	6 MB
Maximum label width	115 mm
Maximum label length	0.991 m
Power requirements	90-264 VAC, 48-63 Hz

Weight and Dimensions

Depth	495 mm
Width	283 mm
Height	394 mm
Weight	29000 g
