Zebra 105SL Quick Reference Guide

9
Load Ribbon
6/20/07 105SL Quick Reference Guide 14023L-002 Rev. A
Load Ribbon
Always use ribbon that is wider than the media to protect the printhead from wear. For direct
thermal printing, do not load ribbon in the printer.

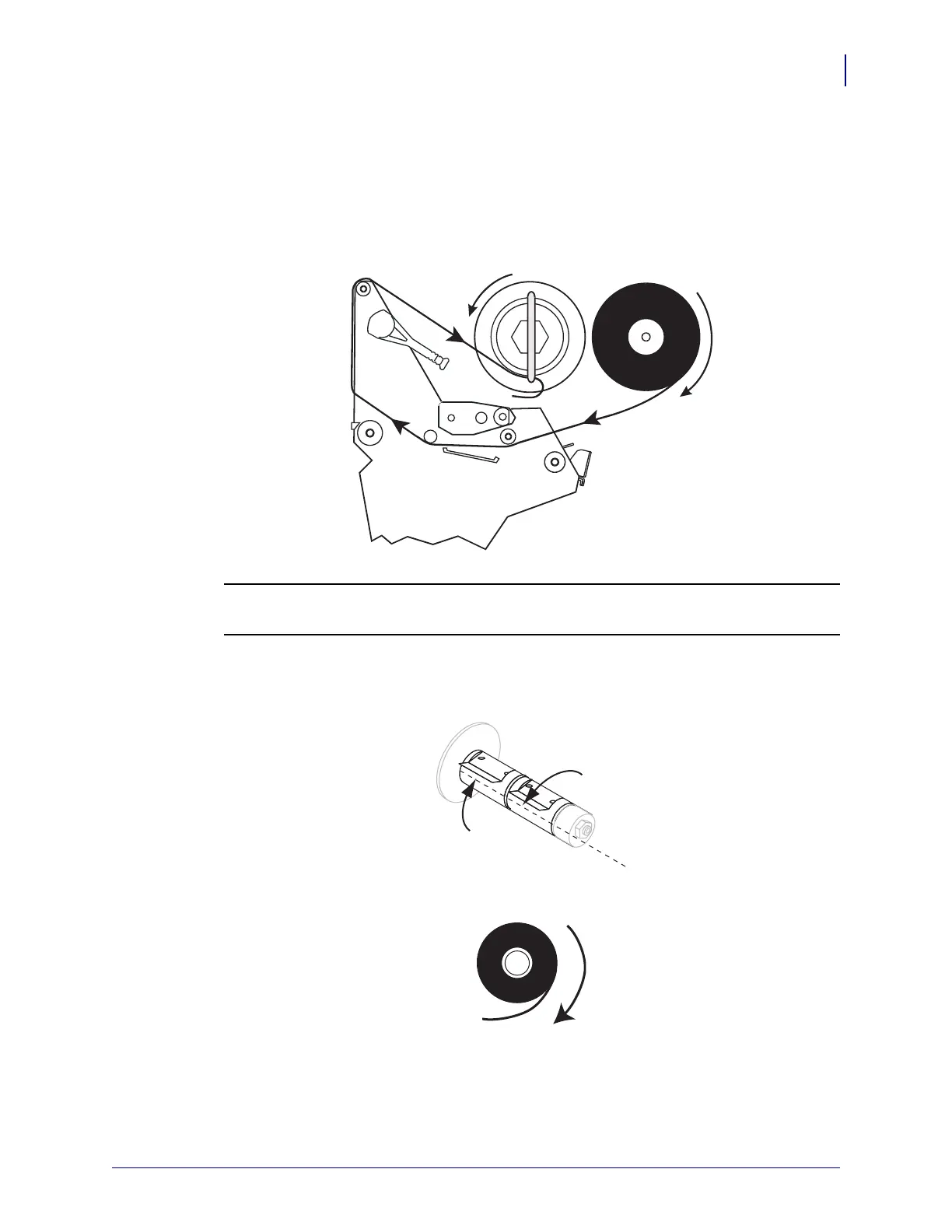

Figure 5 • Ribbon Path
To load ribbon, complete these steps:
1. Align the segments of the ribbon supply spindle.
2. Orient the ribbon with the loose end unrolling clockwise.
Caution • When you are loading media or ribbon, remove all jewelry that could come into
contact with the printhead or other printer parts.

Zebra 105SL Specifications

General

Print technology	Direct thermal
Display	LCD
Product color	Gray
Network ready	Yes
Dimensions (WxDxH)	283 x 495 x 394 mm
Standard interfaces	Parallel, Serial
Internal memory	6 MB
Maximum label width	115 mm
Maximum label length	0.991 m
Power requirements	90-264 VAC, 48-63 Hz

Weight and Dimensions

Depth	495 mm
Width	283 mm
Height	394 mm
Weight	29000 g
