Zebra 105SL Quick Reference Guide

5

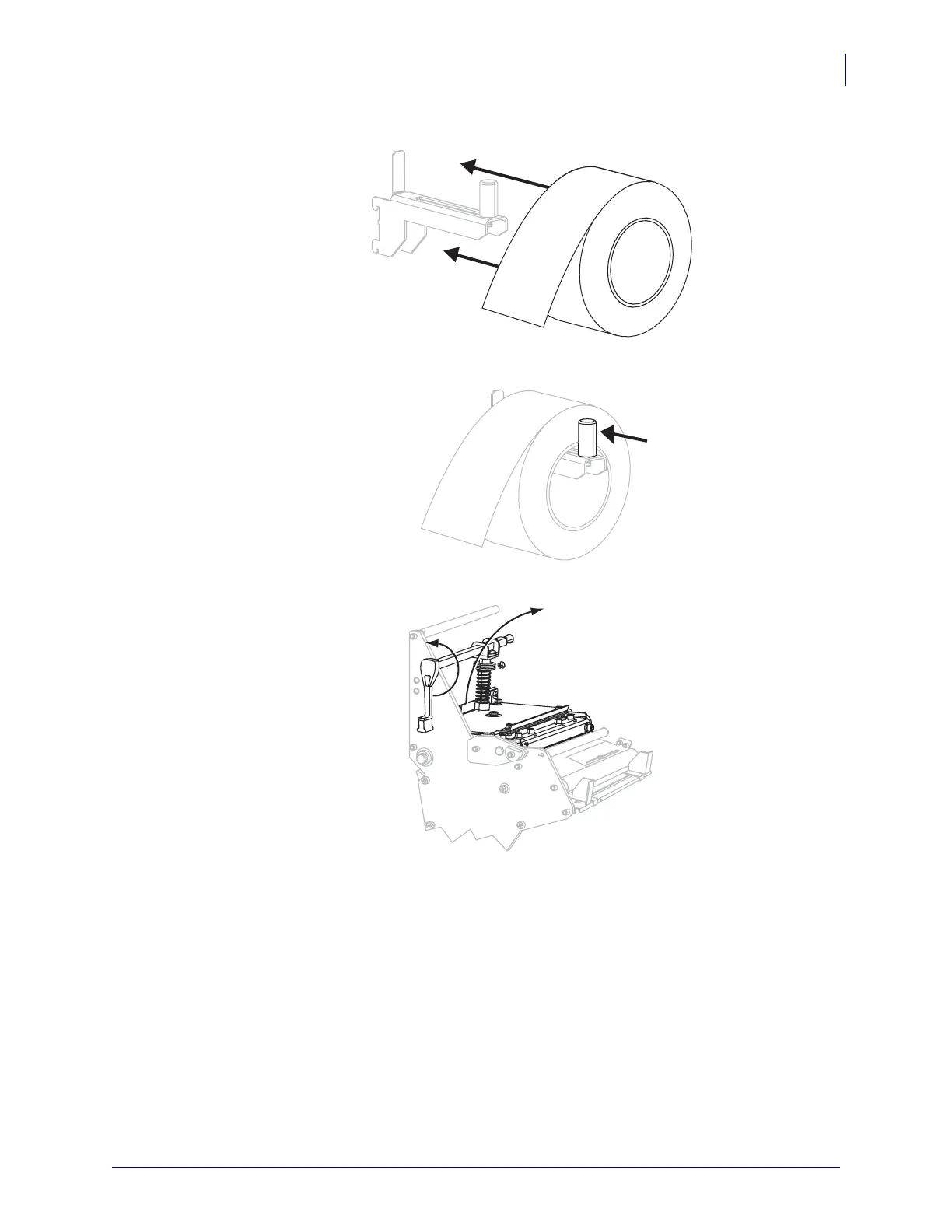

Load Media
6/20/07 105SL Quick Reference Guide 14023L-002 Rev. A
3. Place the roll of media on the media supply hanger. Push the roll as far back as it will go.
4. Slide in the media supply guide until it touches, but does not restrict, the edge of the roll.
5. Open the printhead assembly by rotating the printhead-open lever counter-clockwise.

Zebra 105SL Specifications

General

Print technology	Direct thermal
Display	LCD
Product color	Gray
Network ready	Yes
Dimensions (WxDxH)	283 x 495 x 394 mm
Standard interfaces	Parallel, Serial
Internal memory	6 MB
Maximum label width	115 mm
Maximum label length	0.991 m
Power requirements	90-264 VAC, 48-63 Hz

Weight and Dimensions

Depth	495 mm
Width	283 mm
Height	394 mm
Weight	29000 g
