Zebra 105SL - Major Assemblies and Sensors

7
Load Media
6/20/07 105SL Quick Reference Guide 14023L-002 Rev. A

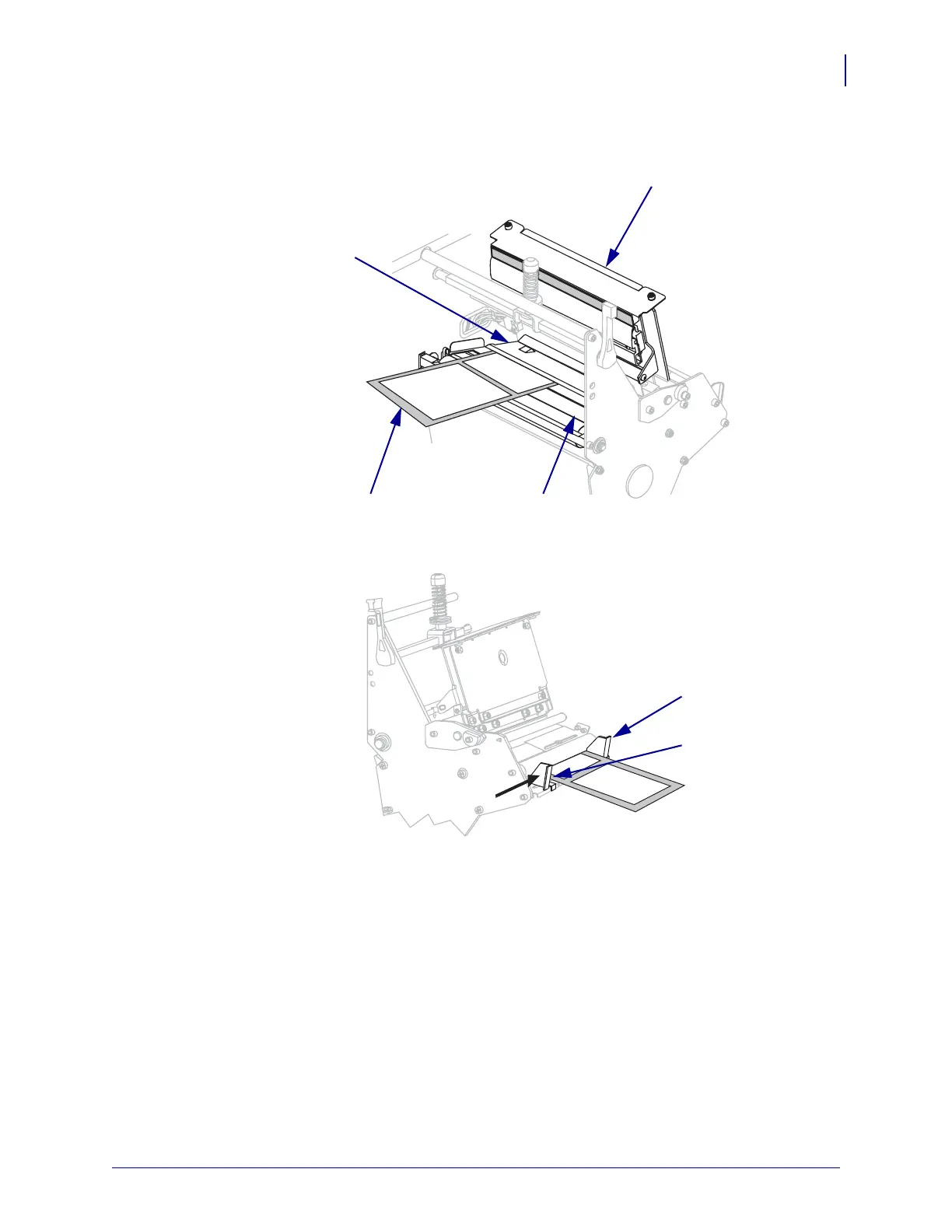

9. Thread the media forward until it passes under the printhead assembly (1), under the
snap plate (2), over the platen roller (3), and out the front of the printer (4).
10. Align the media with the inner media guide (1). Slide in the outer media guide (2) until it
just touches the edge of the media.
1
3
2
4
1
2
