Zebra 105SL Installation Instruction

15
Media Rewind Upgrade
Installing the Media Rewind Option Kit
10/23/2006 33181L-001 Rev. A
37. See Figure 9. Route the rewind drive belt around the inside stepper motor pulley, rewind
spindle pulley, rewind platen pulley and the idler pulley.

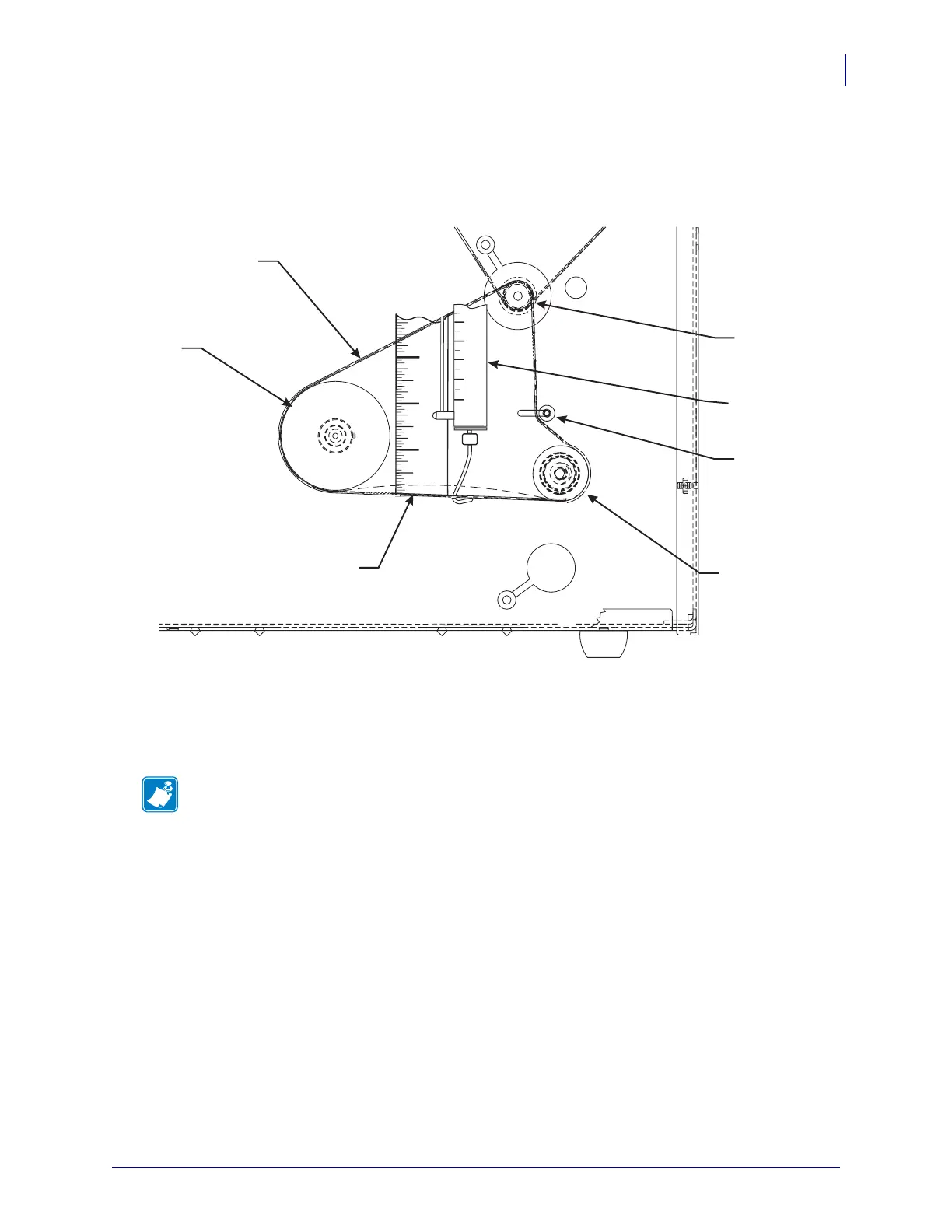

Figure 9 • Initial Rewind Drive Belt Tensioning
38. Slide the rewind assembly toward the rear of the printer until the belt tension is tight.
Extend the wrench through the access holes in the backing take-up pulley assembly, and
tighten the three screws.
39. Grasp the idler pulley and shaft assembly. Loosen the screw securing the idler pulley, and
slide the assembly toward the rear of the printer until belt tension is tight. Tighten the
screw to secure the idler pulley.
40. Hook a spring scale at the midpoint of the lower section of the belt and pull up. The belt
should deflect 0.25 inches (6 mm) with a tension of 2000 grams (4.5 lbs.). Readjust the
belt tension by changing the position of the idler pulley.
41. When adjustment is completed, reinstall the plastic plug in the lower access hole in the
print mechanism side plate.
INCHES
1
2
3
Idler
Pulley
Stepper
Motor
Pulley
Rewind Platen
Roller Pulley
Ruler
Rewind
Spindle
Pulley
Spring
Scale
Rewind
Drive
Belt
2200
2000
1800
1600
1400
Note • The rewind assembly may reach the limit of travel before the belt is tight.
