Latch Replacement - TLP 980358-411A
Preparations
Open the printer by pulling the release latches forward, then lifting the top cover.
Removal

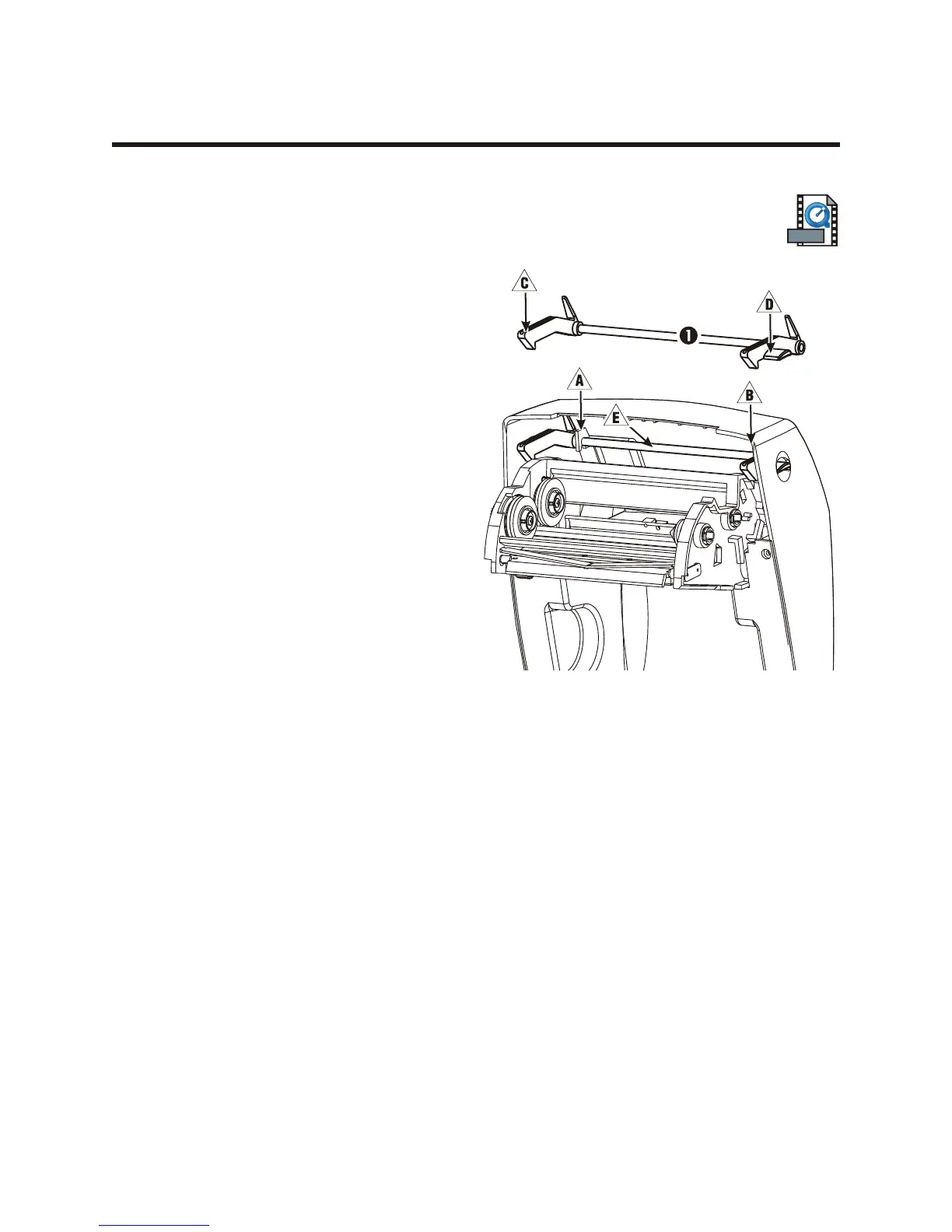

Unsnap the latch assembly 1 from both
bearings !" in the top case.
Assembly
1. Squeeze the latch handles #$ inward
and press into the top case.
2. Push the cross bar % into each bearing
until it snaps into place.
980358-001 Rev. B 35
