Zebra 402 - Page 56

48 980358-001 Rev. B
311
Latch
(Top Cover)
304
Platen
301
Rubber
Feet
303
Cutter
Option
316
Fd-Gap Snsr
Cable Assy
310
Dispenser
Label-Taken
307
Black Line
Sensor Assy
306
Platen
Motor
318
Real-Time
Clock Option
302
Front
Bezel
305
Base Housing
(Bottom)
309
Main
PCBA
317
Feed/LED
PCBA
LP 2824

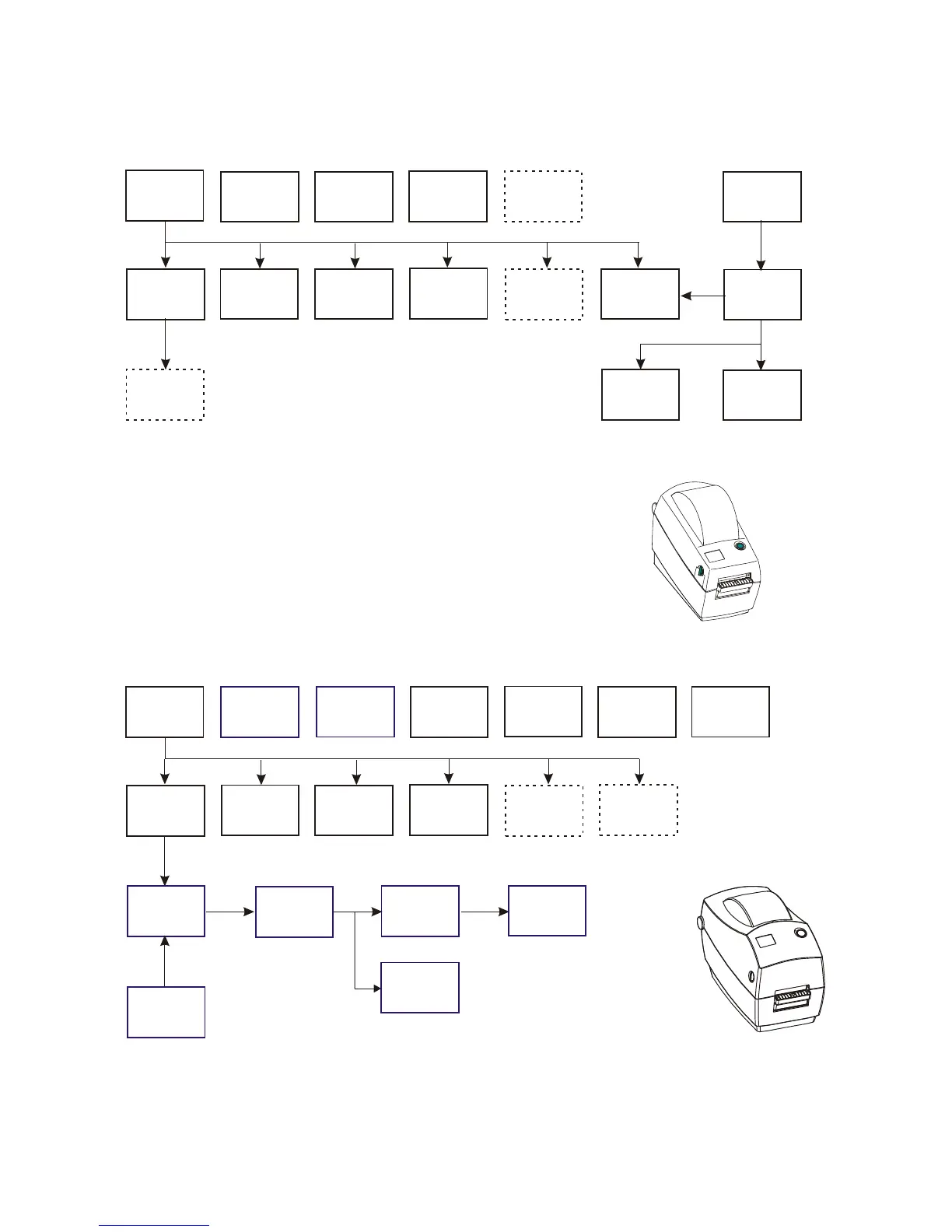

REPAIR PATHS
390
LP 2824
Print Head
314
Cover (Top)
Housing
TLP 2824
511
TLP Latch
(Top Cover)
304
Platen
301
Rubber
Feet
308
Head-Up
Sensor
303
Cutter
Option
516
Feed Button
Top Gap Snsr
310
Dispenser
Label-Taken
307
Black Line
Sensor Assy
306
Platen
Motor
318
Real-Time
Clock Option
512
Upper Cover
Support
302
Front
Bezel
305
Base Housing
(Bottom)
309
Main
PCBA
513
Hinge
514
Upper Case
Assembly
515
Ribbon
Carriage
590
TLP 2824
Print Head
517
Ribbon
Motion Snsr
308
Head-Up
Sensor
