Feed/LED PCBA Replacement 980358-317A
Preparations
Perform the removal steps of the Upper Case Replacement procedure (980358-314).
Removal

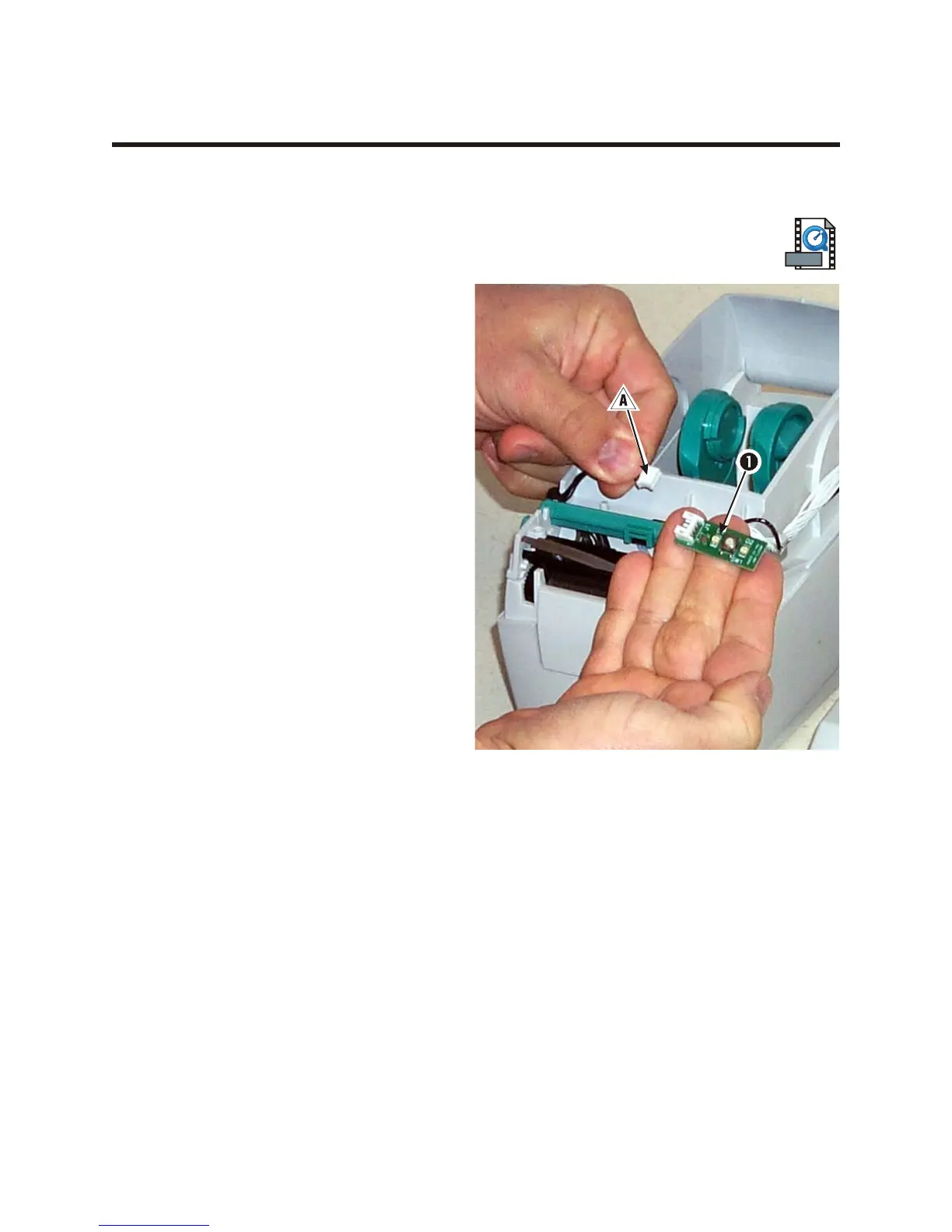

1. Lift the feed/LED PCBA 1 to unsnap it
from the upper frame.
2. Detach the cable connector ! from where
it plugs into the feed/LED PCBA.
Assembly
1. Plug the cable connector into the feed/LED
PCBA.
2. Lower the feed/LED PCBA onto its tab on
the upper frame.
Assembling the Printer
Perform the assembly steps of the Upper Case
Replacement procedure (980358-314).
Reload media. Plug in the power cord, turn on
the printer, load media, and run the AutoSense
routine to get a dump mode printout.
64 980358-001 Rev. B
