CC600/CC6000 Customer Concie
rge Quick Start Guide
9

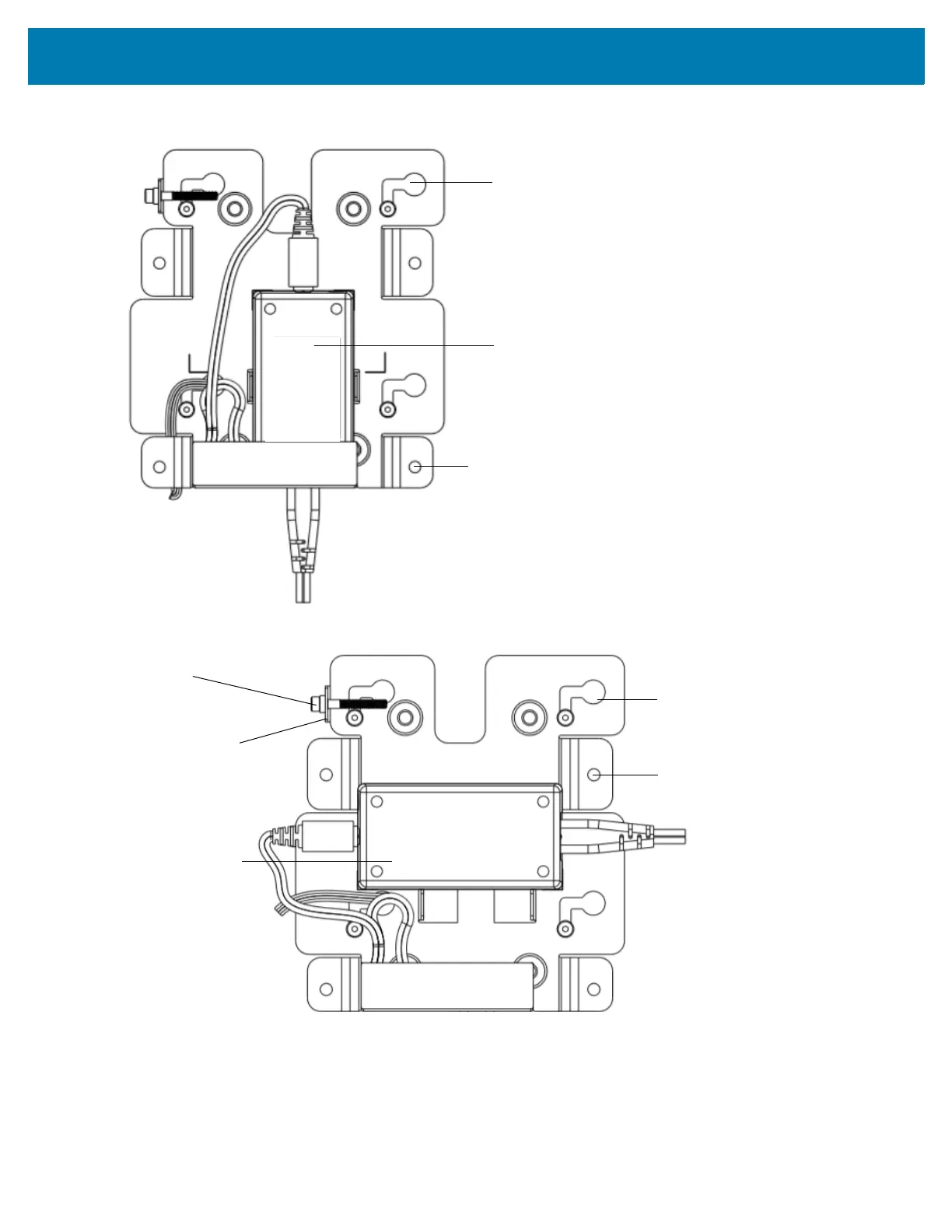

Figure 14
CC6000 Mounting Bracket - Portrait Orientation
Figure 15
CC6000 Mounting Bracket (KT-152098-0
3) - Landscape Orientation
To mount the device:
1.
Determine the CC600 or C
C6000 mounting
location.
2.
Secure the mounting pla
te to the wall using
the screws pro
vided
(three screws for the CC600 plate and four
screws for the CC6000).
Shoulder
Screw Hole
(4)
Power Supply
Wall Screw Hole (4)
Shoulder
Screw
Hole
(4)
Wall Screw Hole (4)
Securing Screw
Securing
Screw Hole
Power Supply
10
12
Table of Contents
CC600/CC6000 Customer Concierge Quick Start Guide
1
Copyright
2
Terms of Use
2
Revision History
2
Introduction
3
This guide provides information regarding unpacking the device, features, setup, mounting, barcode capture, and resetting the device.
3
Unpacking
3
1. Carefully remove all protective material from the device and save the shipping container for later storage and shipping.
3
2. Verify that the following are included:
3
3. Inspect the equipment for damage. If any equipment is missing or damaged, contact the Global Customer Support center immediately.
3
4. Prior to using the device for the first time, remove the protective shipping film that covers the display.
3
Features
3
Figure 1 CC6000 Front View
3
Figure 2 CC6000 Back View
4
Figure 3 CC6000 Power and Cable Ports
4
Figure 4 CC6000 Back With Bracket View
5
Figure 5 CC600 Front Views
5
Figure 6 CC600 Back View
6
Figure 7 CC600 Power and Cable Ports
6
Figure 8 CC600 Back With Bracket View
7
Table 1 Feature Descriptions
7
Setup
8
Perform this procedure to start using the device for the first time.
8
Inserting the microSD Card (Optional)
8
The microSD card slot provides secondary non-volatile storage. The slot is located on the back of the device to the right of the audio jack. Refer to the documentation provided with the card for more information, and follow the manufacturer’s recom...
8
To install the microSD card:
8
Figure 9 Inserting microSD Card
8
Mounting the Device
8
Each configuration of the device requires the appropriate mounting bracket to mount the device to a wall or other flat surface. The diameter of the holes for the wall screws is 5.8mm (0.228 in).
8
Figure 10 CC600 Measurements
9
Figure 11 CC6000 Portrait Measurements
9
Figure 12 CC6000 Landscape Measurements
10
Figure 13 CC600 Mounting Bracket
10
Figure 14 CC6000 Mounting Bracket - Portrait Orientation
11
Figure 15 CC6000 Mounting Bracket (KT-152098-03) - Landscape Orientation
11
To mount the device:
11
1. Determine the CC600 or CC6000 mounting location.
11
2. Secure the mounting plate to the wall using the screws provided (three screws for the CC600 plate and four screws for the CC6000).
11
Figure 16 Attaching the CC600 Bracket To Wall
12
Figure 17 Attaching the CC6000 Bracket To Wall
12
3. Insert the four shoulder screws, also provided, into the mounting holes in the back of the device.
12
Figure 18 Inserting Shoulder Screws
13
4. Connect the power supply to the power port. Connect any additional cables into the appropriate ports shown in Figure 3 and Figure 7.
13
5. Mount the device by placing the shoulder screws through the four keyholes on the mounting plate, and slide the device down to secure in place.
13
Figure 19 Attaching the Device to the Bracket
14
6. Insert the locking screw through the hole in the tab at the top of the mounting plate. Hand tighten the screw to secure the device.
14
Barcode Capture
15
Scanning can be performed using the CC600 and CC6000 Customer Concierge or an imager such as the DS22X8 or DS81X8.
15
Barcode Capture with an Imager
15
To capture barcode data with the CC600/CC6000 Customer Concierge:
15
1. Ensure that an application is open on the device and a text field is in focus (text cursor in text field).
15
2. Place the barcode in the field of view of the device’s scan window. Ensure the barcode is within the scanner’s aiming pattern.
15
3. The LEDs light green and a beep sounds, by default, to indicate the barcode was decoded successfully. Note that when the device is in Pick List Mode, the device does not decode the barcode until the center of the illuminated line or dot touches th...
15
To capture barcode data with the DS22X8 or DS81X8 imager:
15
1. Ensure that an application is open on the device and a text field is in focus (text cursor in text field).
15
2. Press and hold the trigger until either:
15
a. The imaging scanner reads the bar code. The imaging scanner beeps, the LED flashes, and the scan line turns off.
15
b. The imaging scanner does not read the bar code and the scan line turns off.
15
Note that when the device is in Pick List Mode, the device does not decode the barcode until the center of the illuminated line or dot touches the barcode.
15
Resetting the Device
16
The device has a recessed reset button.
16
To activate the reset button, use the tip of a small paper clip (1mm in diameter), insert into the recess, push and hold for 3 seconds.
16
Device has a recovery console accessible via pressing the Button #1 on the back of the device upon power up or via ADB connection and command.
16
The following reset functions are supported:
16
The device recovery mode supports the following functions:
16
www.zebra.com
