Zebra Desktop Printer - USB Interface Connector

Appendix
Interfaces
Universal Serial Bus (USB) Connector

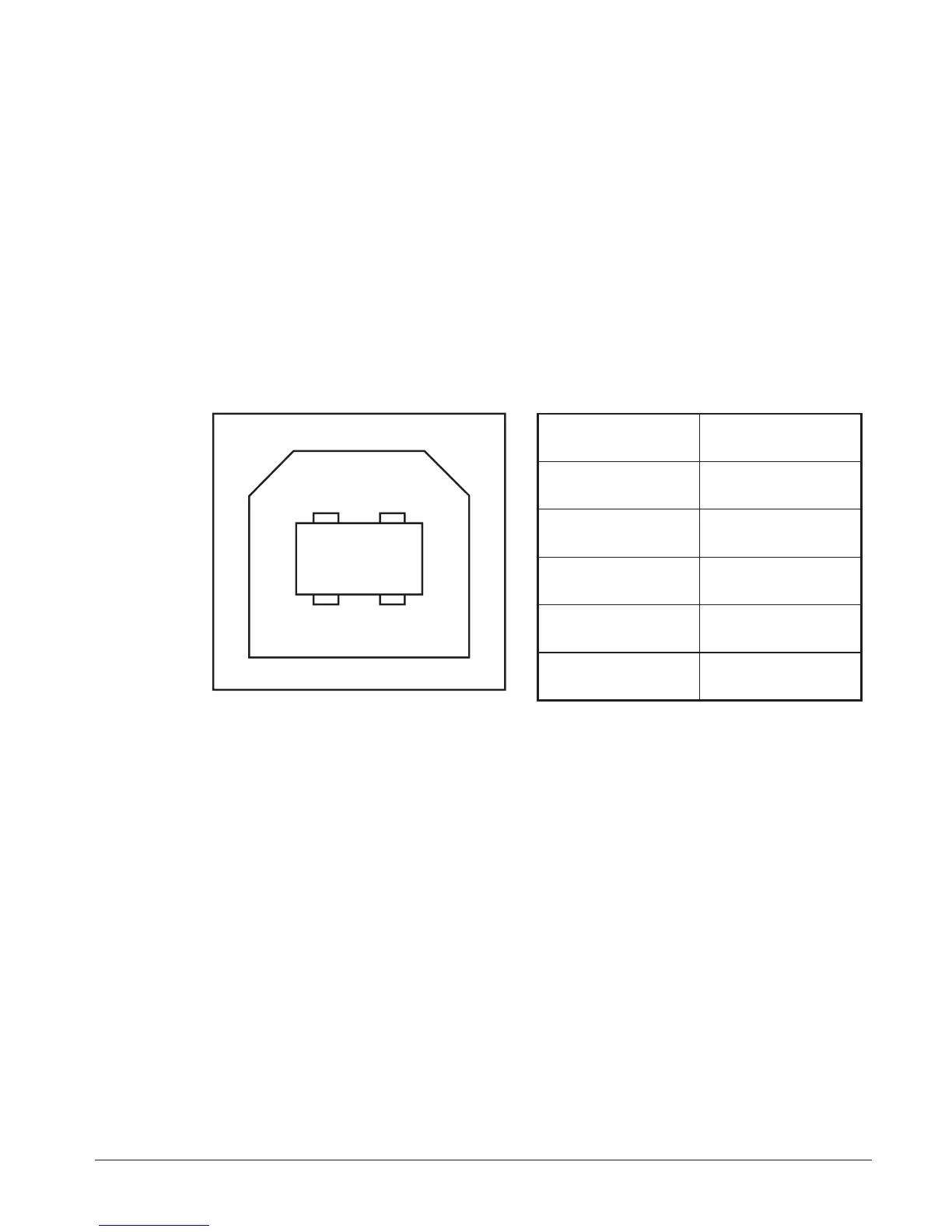

The figure below displays the cable wiring required to use the printer’s
USB interface.
For information on the USB interface, go to the USB web site at:
Http://www.usb.org
980483-001A 41
Pin Signal
1 Vbus-N/C
2D-
3D+
4 Ground
Shell Shield/
Drain Wire
1
2
3
4
