Zebra Desktop Printer - Ethernet PrintServer Pinouts

ZebraNet® PrintServer II™ Internal Ethernet PrintServer
This interface uses an RJ-45 straight-through cable type. The table below
provides the pinout assignments.
Signal Pin Pin Signal
Tx+ 1 1 Tx+
Tx- 2 2 Tx-
Rx+ 3 3 Rx+
--- 4 4 ---
--- 5 5 ---
Rx- 6 6 Rx-
--- 7 7 ---
--- 8 8 ---
980483-001A 43
Pin 4
Pin 3
Pin 2
Pin 1
Pin 5
Pin 6
Pin 7
Pin 8

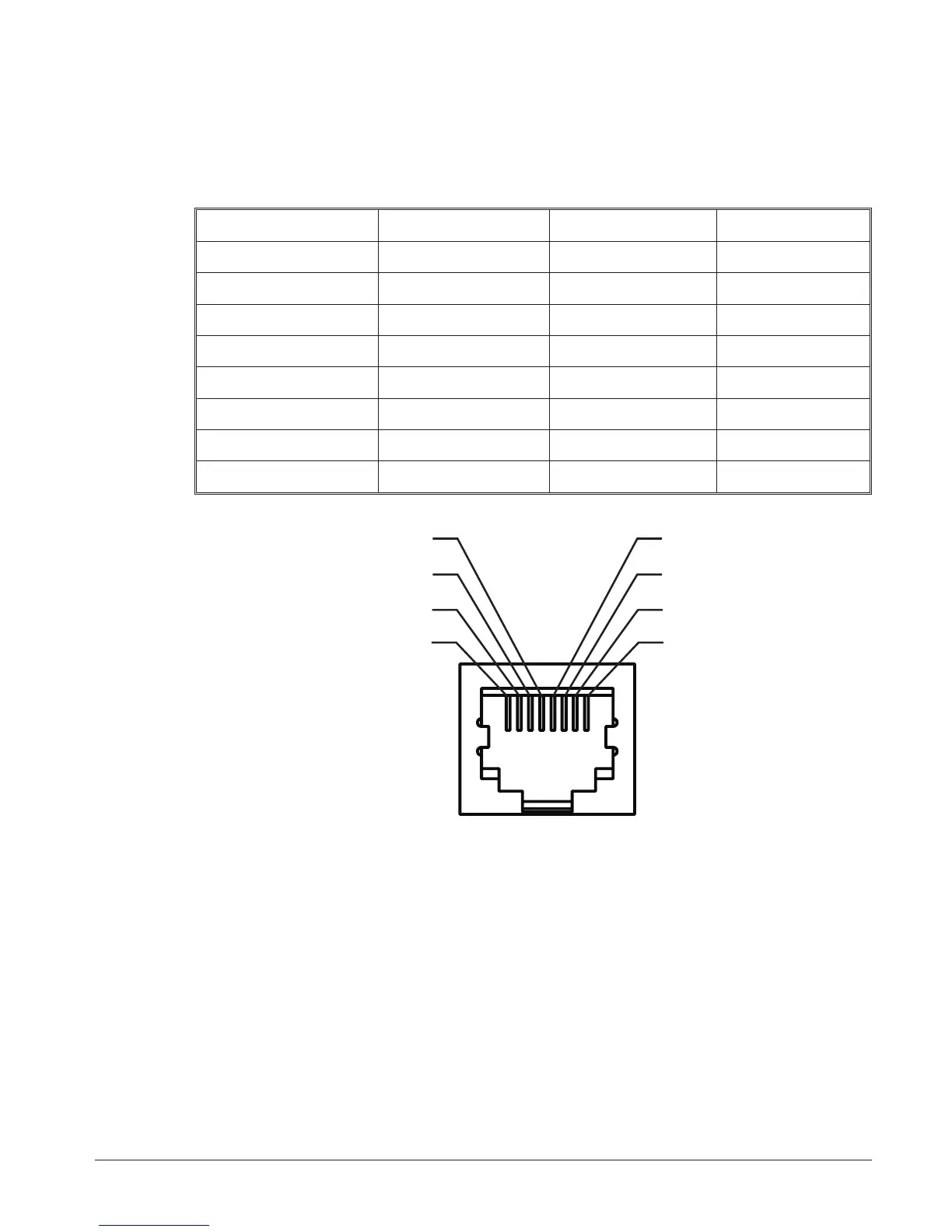

Looking into the Printer’s
RJ-45 Modular Connector
